FASCIO STRETTO 15° - NARROW BEAM 15°
FASCIO MEDIO 30° - MEDIUM BEAM 30°
FASCIO LARGO 40° - WIDE BEAM 40°
2W con DRIVER REMOTO 24Vdc - 2W REMOTE DRIVER 24Vdc
Versione in Corrente - Constant current (mA)
Versione in Tensione - Constant voltage (Vdc)
2W con DRIVER REMOTO MAX 700mA - 2W REMOTE DRIVER max 700mA
Fixture
Specifications
Technical Data
Protection . IP 66 - IK 08
Body . Anticorodal turning aluminum 6000 Serie,
for greater corrosion resistance
Frame . Steel AISI 316L
Seals . EPDM rubber
Screws . Stainless steel A2
Paint / Finishing . Anti-corrosive UV stabilised
polyester powder
Finishes

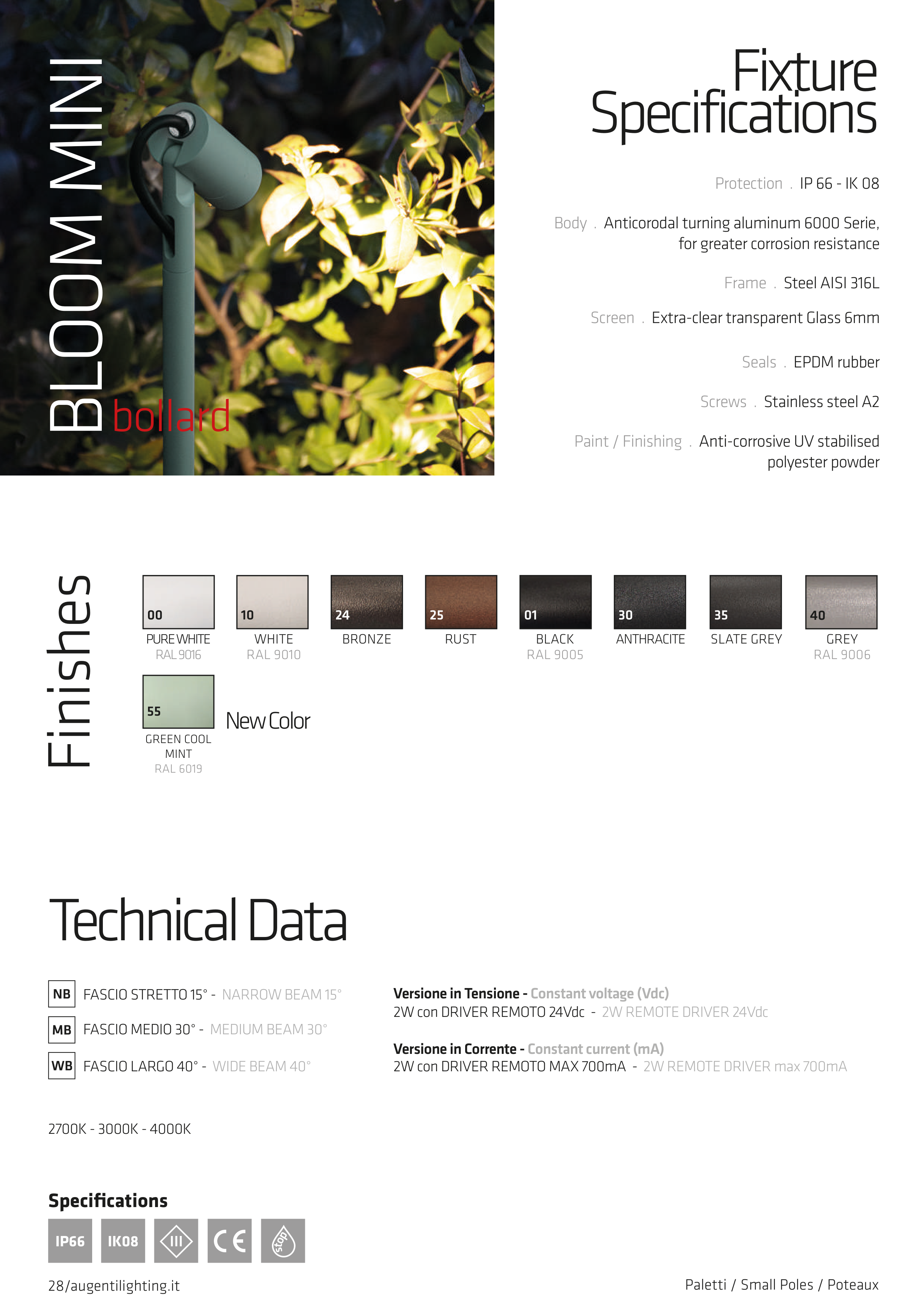

BLOOM MINI
bollard
2700K - 3000K - 4000K
Screen . Extra-clear transparent Glass 6mm
III
IP66
IK08
Specifications
PURE WHITE
RAL 9016
WHITE
RAL 9010
00
10
BLACK
RAL 9005
01
BRONZE
24
RUST
25
ANTHRACITE
30
SLATE GREY
35
GREY
RAL 9006
40
GREEN COOL
MINT
RAL 6019
55
28/augentilighting.it
Paletti / Small Poles / Poteaux
New Color
