Materic convergence
between lens and antiglare
Optical PMMA
32 mm
18 mm
30 mm
30 mm
15 mm
PAT E N T O F
I N V E N T I O N
n.1 desk
Installation h 2400 mm - Desk h 750 mm
Eav= 723 lx u0= 0,682
0.00
1.60
0.80
1.60
0.00
640 720
560
800
880
Installation h 2400 mm - Desk h 750 mm
Eav= 634 lx u0= 0,510
0.00
1.60
1.60
0.00
480
600
720
840
540
630
450
Installation h 2400 mm - Desk h 750 mm
Eav= 505 lx u0= 0,506
0.00
3.20
0.00
n.2 desks
n.4 desks
Direct emission
Refractive lens
& TIR (total internal reflection) antiglare
Collects 100% of the LED
luminous flux and reflect secondary rays
maximizing the flux output
Direct emission
Extreme glare control
UGR<16
Beam 2X31°
High efficiency
More than 93%
High efficacy
Up to 160 lm/W
CRI90
Indirect emission
Diffused distribution

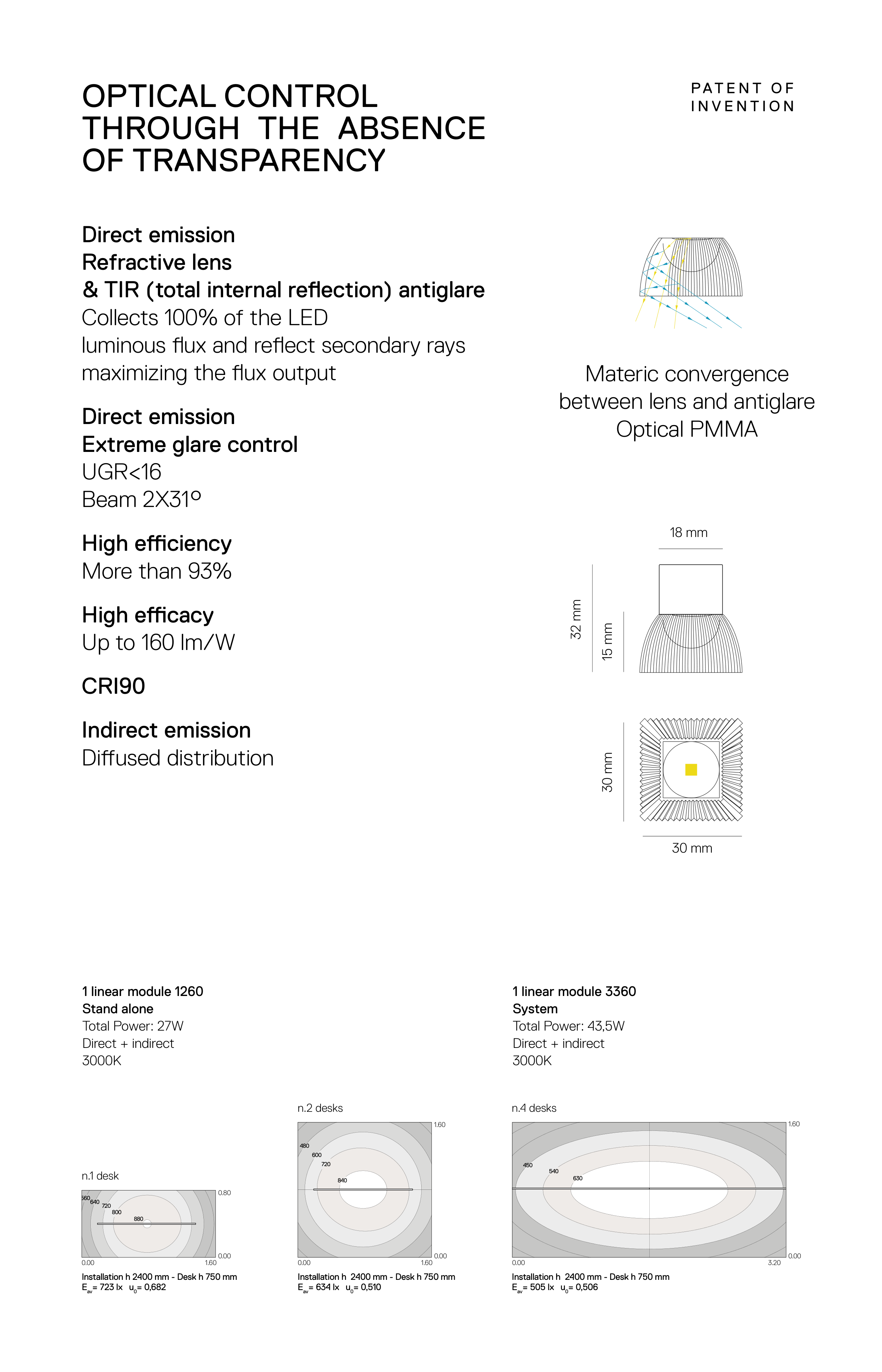

OPTICAL CONTROL
THROUGH THE ABSENCE
OF TRANSPARENCY
1 linear module 1260
Stand alone
Total Power: 27W
Direct + indirect
3000K
1 linear module 3360
System
Total Power: 43,5W
Direct + indirect
3000K
