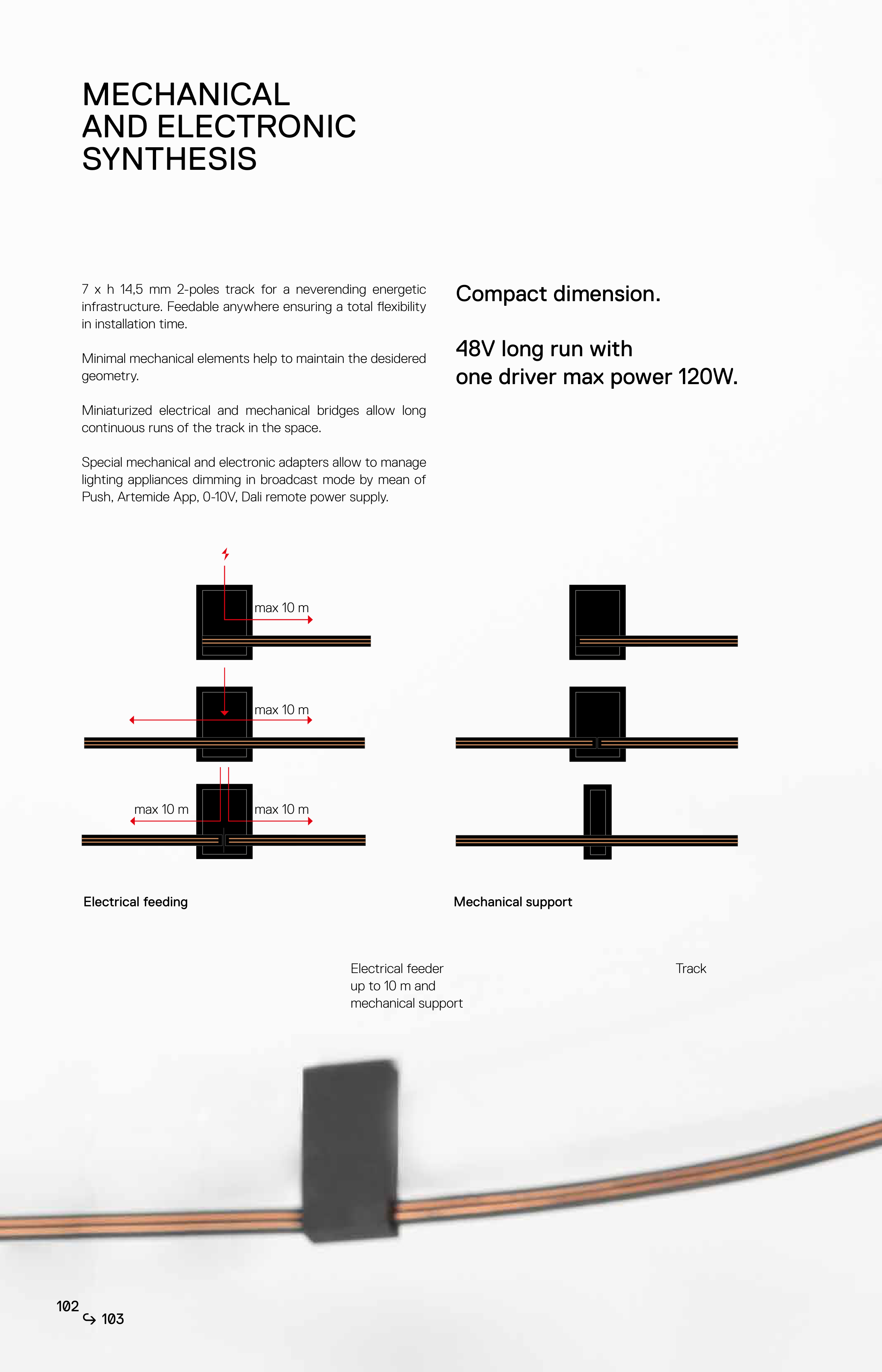

Electrical feeding
Mechanical support
max 10 m
max 10 m
max 10 m
max 10 m
102
103
MECHANICAL
AND ELECTRONIC
SYNTHESIS
7 x h 14,5 mm 2-poles track for a neverending energetic
infrastructure. Feedable anywhere ensuring a total flexibility
in installation time.
Minimal mechanical elements help to maintain the desidered
geometry.
Miniaturized electrical and mechanical bridges allow long
continuous runs of the track in the space.
Special mechanical and electronic adapters allow to manage
lighting appliances dimming in broadcast mode by mean of
Push, Artemide App, 0-10V, Dali remote power supply.
Compact dimension.
48V long run with
one driver max power 120W.
Track
Electrical feeder
up to 10 m and
mechanical support
