For further information on Cuneo and Cuneo Mini
visit artemide.com

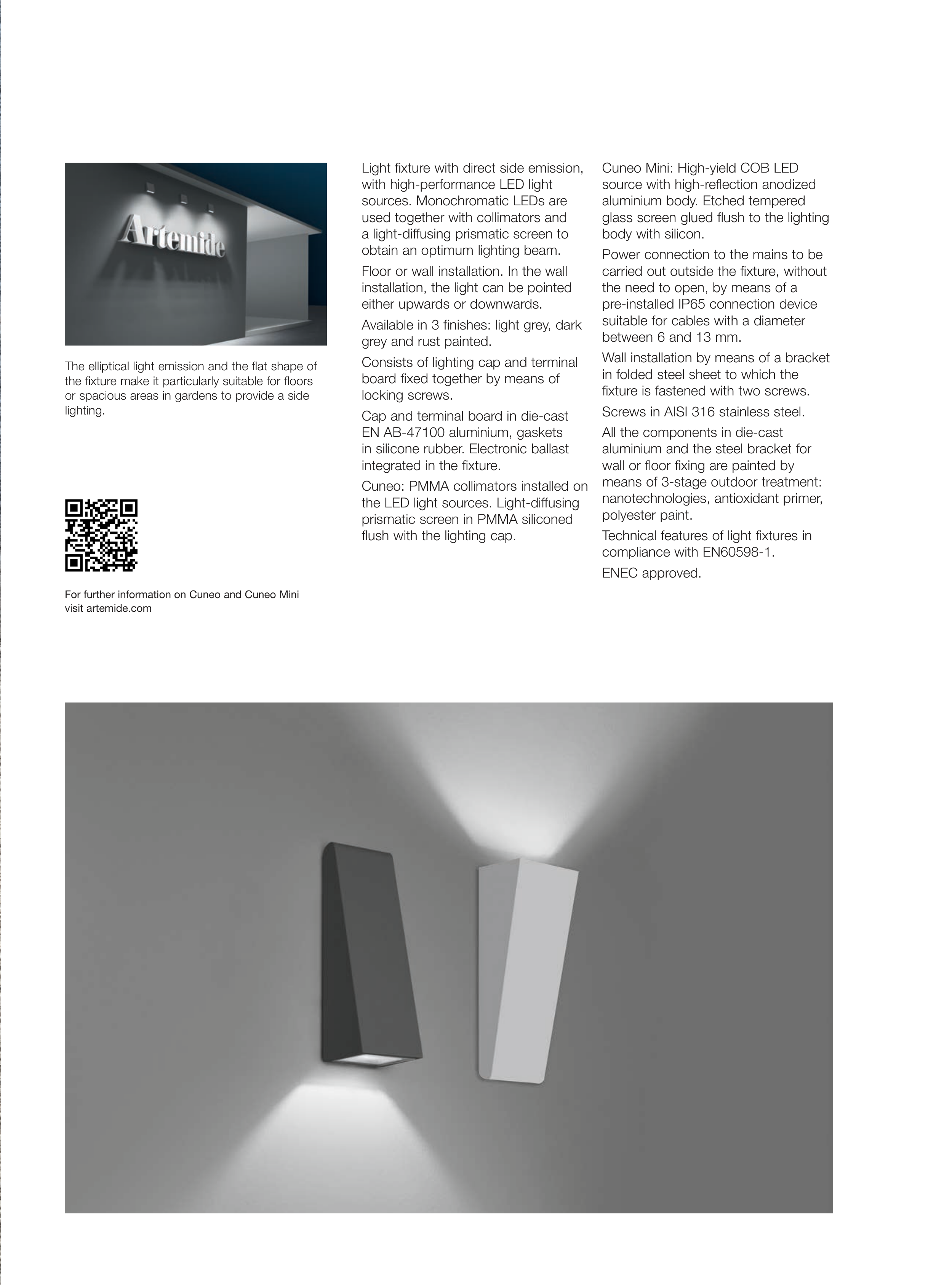

Light fixture with direct side emission,
with high-performance LED light
sources. Monochromatic LEDs are
used together with collimators and
a light-diffusing prismatic screen to
obtain an optimum lighting beam.
Floor or wall installation. In the wall
installation, the light can be pointed
either upwards or downwards.
Available in 3 finishes: light grey, dark
grey and rust painted.
Consists of lighting cap and terminal
board fixed together by means of
locking screws.
Cap and terminal board in die-cast
EN AB-47100 aluminium, gaskets
in silicone rubber. Electronic ballast
integrated in the fixture.
Cuneo: PMMA collimators installed on
the LED light sources. Light-diffusing
prismatic screen in PMMA siliconed
flush with the lighting cap.
The elliptical light emission and the flat shape of
the fixture make it particularly suitable for floors
or spacious areas in gardens to provide a side
lighting.
Cuneo Mini: High-yield COB LED
source with high-reflection anodized
aluminium body. Etched tempered
glass screen glued flush to the lighting
body with silicon.
Power connection to the mains to be
carried out outside the fixture, without
the need to open, by means of a
pre-installed IP65 connection device
suitable for cables with a diameter
between 6 and 13 mm.
Wall installation by means of a bracket
in folded steel sheet to which the
fixture is fastened with two screws.
Screws in AISI 316 stainless steel.
All the components in die-cast
aluminium and the steel bracket for
wall or floor fixing are painted by
means of 3-stage outdoor treatment:
nanotechnologies, antioxidant primer,
polyester paint.
Technical features of light fixtures in
compliance with EN60598-1.
ENEC approved.
