MacAdam 3SDCM
L70 (9K) 50000h
CRI =90
CCT (K) : 5000K
IP20
Black
04
White
01
Silver
05
WF
Code
BZ071. 01/04
BZ072. 01/04
BZ073. 01/04
BZ074. 01/04
To be used on Sharp Refractive 4x
To be used on Sharp Refractive 8x
To be used on Sharp Refractive 12x
To be used on Sharp Refractive 16x
Louvres
Vac
Lmm
Wmm
Hmm Sharp Refractive Min. ceiling depht [mm]
20 W 350mA
220-240
120
52
22
8x
80
Undimmable
20 W 350mA
220-240
120
52
22
8x
80
Push, 0-10V
38 W 350mA
220-240
147
44
30
8x
80
DALI
50 W 350mA
220-240
124
79
22
8x
100
Artemide App
60 W 350mA
220-240
124
79
22
16x
100
DALI, Push, 0-10V
Vac
Lmm
Wmm
Hmm
Min. ceiling depht (mm)
220-240
160
88
33
100
BLL-DALI Interface
Code
DV1089
DV1090
DV1091
DV1092APP
DV1093
Code
DV1054APP
Driver
BLL - DALI interface for Artemide App (with antenna, can be used to control with Artemide App up to 40 DALI driver)
SHARP REFRACTIVE TRIM 4X
SHARP REFRACTIVE TRIM 8X
SHARP REFRACTIVE TRIM 16X
SHARP REFRACTIVE TRIM 12X
W
Luminous Flux1
Radiant Flux1
CCT
CRI
DAY MODE
8 W
1063 lm
822 mW
5000 K
90
W
Luminous Flux1
Radiant Flux1
CCT
CRI
DAY MODE
16 W
2126 lm
1644 mW
5000 K
90
W
Luminous Flux1
Radiant Flux1
CCT
CRI
DAY MODE
32 W
4252 lm
3288 mW
5000 K
90
W
Luminous Flux1
Radiant Flux1
CCT
CRI
DAY MODE
24 W
3189 lm
2466 mW
5000 K
90
Code
CE134.01/04/05.IN0
Code
CE144.01/04/05.IN0
Code
CE164.01/04/05.IN0
Code
CE154.01/04/05.IN0

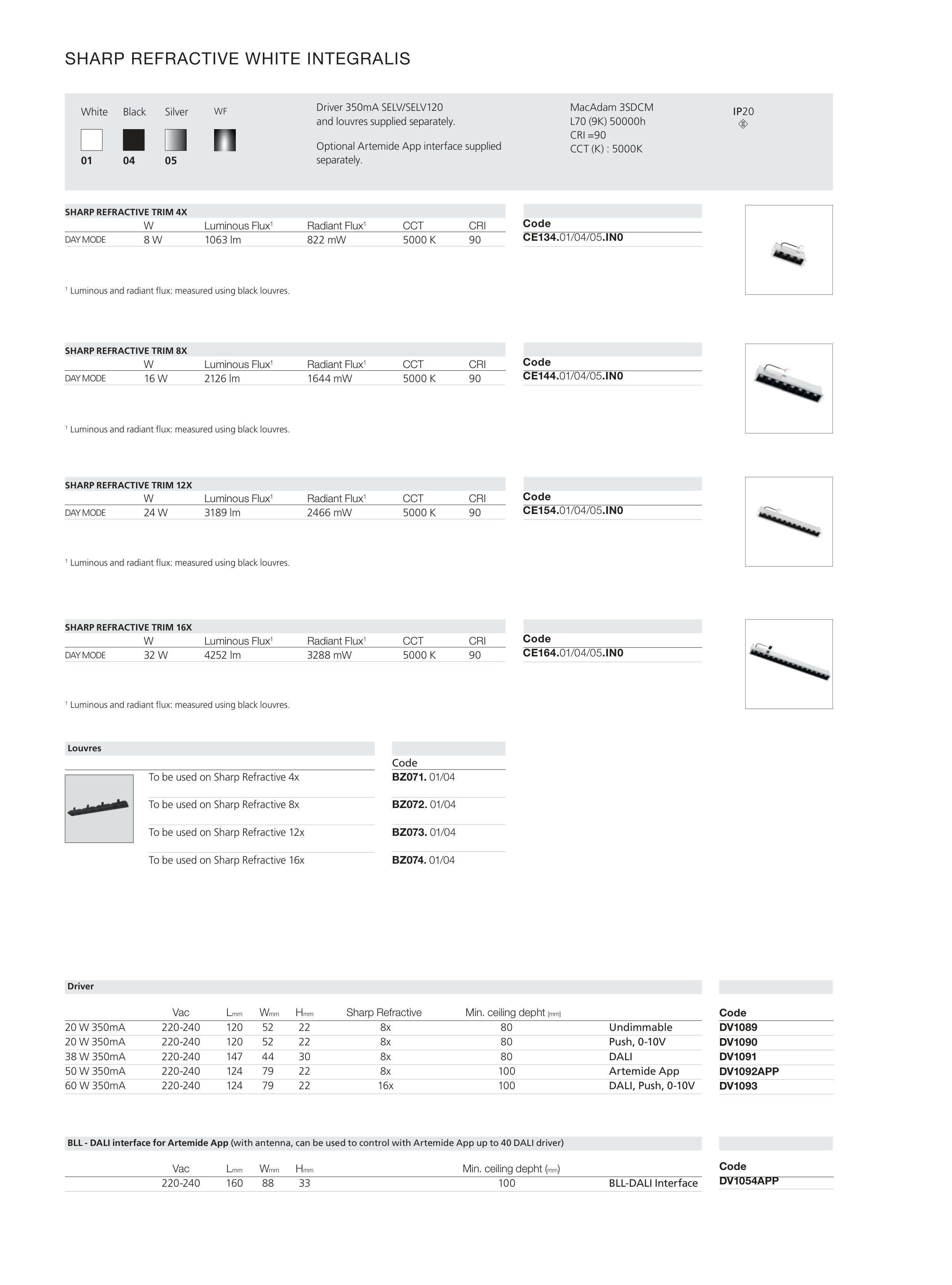

SHARP REFRACTIVE WHITE INTEGRALIS
Driver 350mA SELV/SELV120
and louvres supplied separately.
Optional Artemide App interface supplied
separately.
1 Luminous and radiant flux: measured using black louvres.
1 Luminous and radiant flux: measured using black louvres.
1 Luminous and radiant flux: measured using black louvres.
1 Luminous and radiant flux: measured using black louvres.
