IP20
Life L70 28400h
CRI = 80
CCT= 3600 K
Silver
05
Black
04
White
01
Code
AT132.01/04/05.IN2APP
AT142.01/04/05.IN2APP
AT152.01/04/05.IN2APP
AT182.01/04/05.IN2APP
W
Luminous Flux
Radiant Flux
CCT
CRI
1184 mm
DAY MODE
39 W
3007 lm
4544 mW
3600 K
80
NIGHT MODE
54 W
ND
14022 mW
1480 mm
DAY MODE
49 W
3759 lm
5681 mW
3600 K
80
NIGHT MODE
68 W
ND
17528 mW
2368 mm
DAY MODE
78 W
6014 lm
9090 mW
3600 K
80
NIGHT MODE
108 W
ND
28044 mW
2960 mm
DAY MODE
97 W
7518 lm
11362 mW
3600 K
80
NIGHT MODE
135 W
ND
35056 mW
A.39 DIFFUSED EMISSION - Suspension, ceiling direct emission*
Artemide App
Code
AT192.01/04/05.IN2APP
AT222.01/04/05.IN2APP
AT232.01/04/05.IN2APP
AT242.01/04/05.IN2APP
W
Luminous
Flux
Radiant
Flux
CCT
CRI
1184 mm
DAY MODE
Direct emission
39 W
3007 lm
4544 mW
3600 K
80
Indirect emission
23 W
2807 lm
NIGHT MODE
54 W
ND
14022 mW
1480 mm
DAY MODE
Direct emission
49 W
3759 lm
5681 mW
3600 K
80
Indirect emission
31 W
3742 lm
NIGHT MODE
68 W
ND
17528 mW
2368 mm
DAY MODE
Direct emission
78 W
6014 lm
9090 mW
3600 K
80
Indirect emission
50 W
5613 lm
NIGHT MODE
108 W
ND
28044 mW
2960 mm
DAY MODE
Direct emission
97 W
7518 lm
11362 mW
3600 K
80
Indirect emission
67 W
7484 lm
NIGHT MODE
135 W
ND
35056 mW
Artemide App
Length
1184 mm
2368 mm
2960 mm
10000 mm roll
Code
AT09505IN
AT09506IN
AT09507IN
AT10000IN
Code
AT894.01/04/05
AT09501
AT09502
A.39 DIFFUSED EMISSION - Suspension direct/INDIRECT emission*
Code
AT10400
AT09500
AT894.01/04/05
Code
DV1080APP
DV1101APP
Optional control devices - bll wireless switch

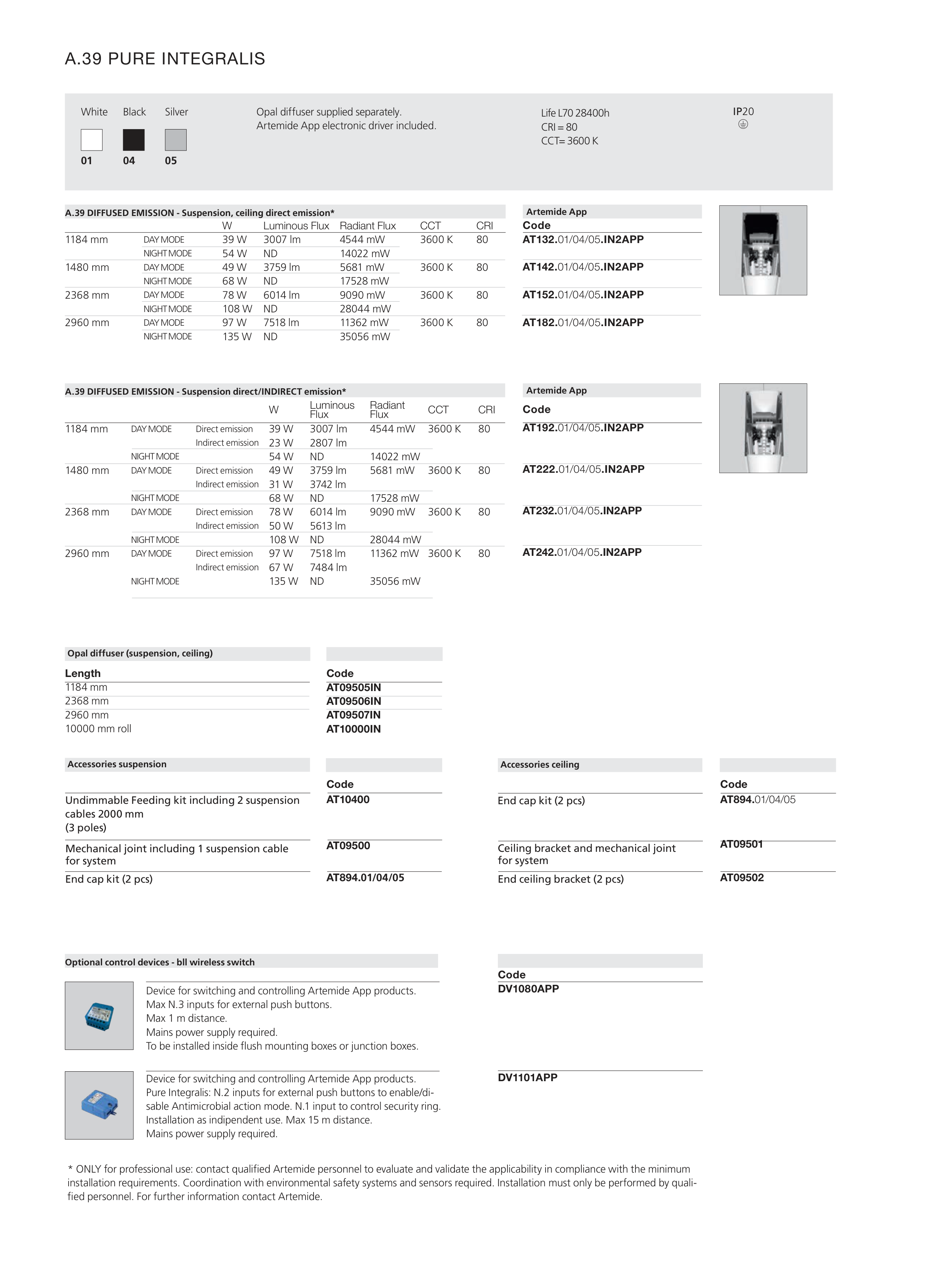

A.39 PURE INTEGRALIS
Opal diffuser supplied separately.
Artemide App electronic driver included.
Opal diffuser (suspension, ceiling)
End cap kit (2 pcs)
End cap kit (2 pcs)
Ceiling bracket and mechanical joint
for system
End ceiling bracket (2 pcs)
Undimmable Feeding kit including 2 suspension
cables 2000 mm
(3 poles)
Mechanical joint including 1 suspension cable
for system
Accessories ceiling
Accessories suspension
* ONLY for professional use: contact qualified Artemide personnel to evaluate and validate the applicability in compliance with the minimum
installation requirements. Coordination with environmental safety systems and sensors required. Installation must only be performed by quali-
fied personnel. For further information contact Artemide.
Device for switching and controlling Artemide App products.
Pure Integralis: N.2 inputs for external push buttons to enable/di-
sable Antimicrobial action mode. N.1 input to control security ring.
Installation as indipendent use. Max 15 m distance.
Mains power supply required.
Device for switching and controlling Artemide App products.
Max N.3 inputs for external push buttons.
Max 1 m distance.
Mains power supply required.
To be installed inside flush mounting boxes or junction boxes.
