IP20
MacAdam 3SDCM
L70(12K)=72000h
CRI = 90
Silver
05
Black
04
White
01
Code
AT132.01/04/05.IN0*
AT142.01/04/05.IN0*
AT152.01/04/05.IN0*
AT182.01/04/05.IN0*
W
Luminous Flux
Radiant Flux
CCT
CRI
1184 mm
DAY MODE
34 W
2975 lm
2052 mW
5000 K
90
1480 mm
DAY MODE
42 W
3719 lm
2565 mW
5000 K
90
2368 mm
DAY MODE
66 W
5950 lm
4104 mW
5000 K
90
2960 mm
DAY MODE
82 W
7437 lm
5129 mW
5000 K
90
Dimmable DALI
* 1 DALI address
** 2 DALI addresses
Code
AT192.01/04/05.IN0*
AT222.01/04/05.IN0*
AT232.01/04/05.IN0**
AT242.01/04/05.IN0**
W
Luminous
Flux
Radiant
Flux
CCT
CRI
1184 mm
DAY MODE
Direct emission
34 W
2975 lm
2052 mW
5000 K 90
Indirect emission 23 W
2316 lm
1786 mW
1480 mm
DAY MODE
Direct emission
42 W
3719 lm
2565 mW
5000 K 90
Indirect emission 31 W
3088 lm
2382 mW
2368 mm
DAY MODE
Direct emission
66 W
5950 lm
4104 mW
5000 K 90
Indirect emission 50 W
4633 lm
3572 mW
2960 mm
DAY MODE
Direct emission
82 W
7437 lm
5129 mW
5000 K 90
Indirect emission 67 W
6177 lm
4763 mW
A.39 DIFFUSED EMISSION - Suspension direct/INDIRECT emission
Dimmable DALI
Code
AT10500
AT10500APP
(Up to 40 DALI
addresses)
AT09500
AT894.01/04/05
Code
AT894.01/04/05
AT09501
AT09502
DV1054APP
Length
1184 mm
2368 mm
2960 mm
10000 mm roll
Code
AT09505IN
AT09506IN
AT09507IN
AT10000IN

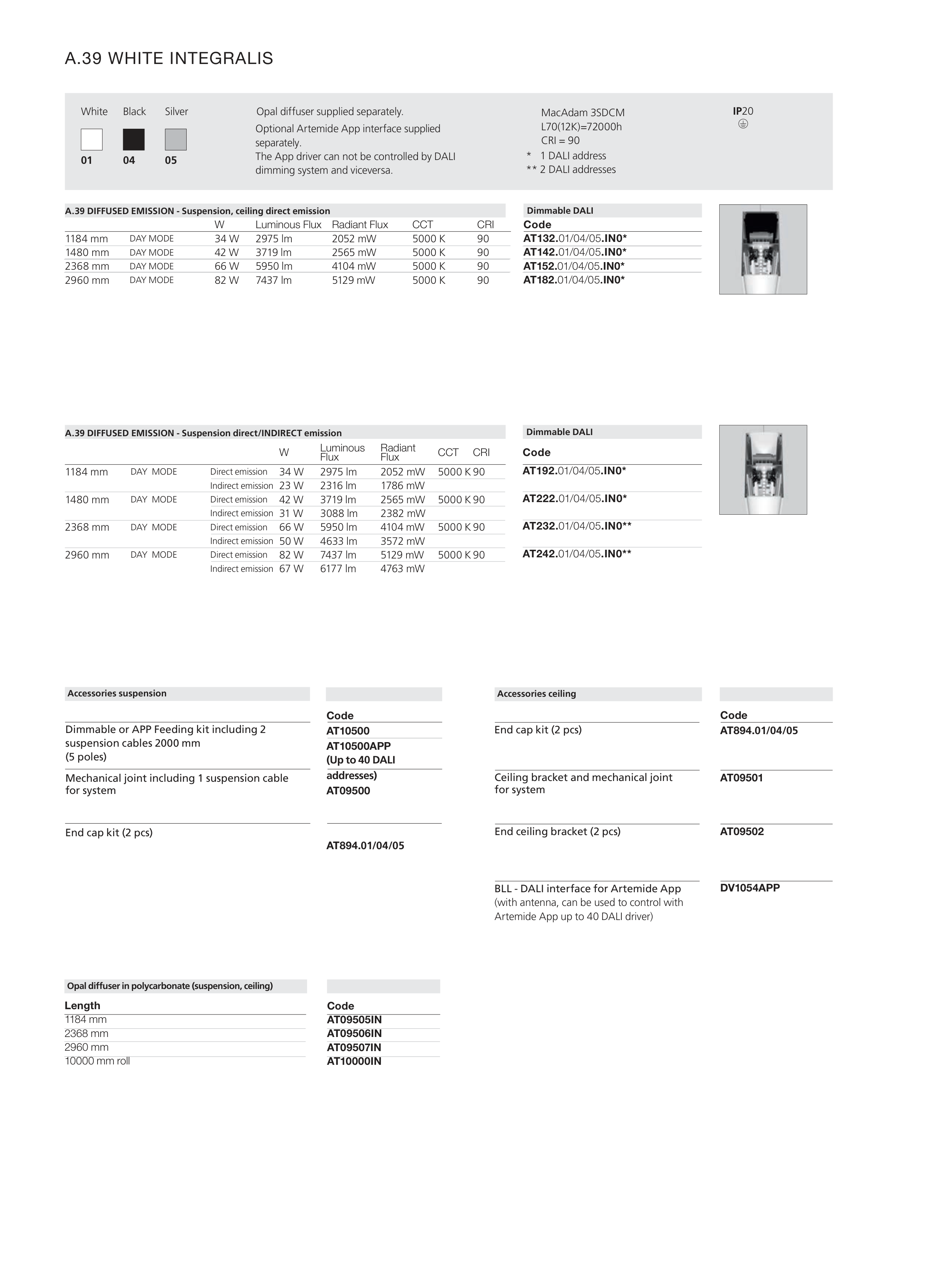

A.39 WHITE INTEGRALIS
Opal diffuser supplied separately.
Optional Artemide App interface supplied
separately.
The App driver can not be controlled by DALI
dimming system and viceversa.
End cap kit (2 pcs)
End cap kit (2 pcs)
Ceiling bracket and mechanical joint
for system
End ceiling bracket (2 pcs)
BLL - DALI interface for Artemide App
(with antenna, can be used to control with
Artemide App up to 40 DALI driver)
Dimmable or APP Feeding kit including 2
suspension cables 2000 mm
(5 poles)
Mechanical joint including 1 suspension cable
for system
Accessories ceiling
Accessories suspension
Opal diffuser in polycarbonate (suspension, ceiling)
A.39 DIFFUSED EMISSION - Suspension, ceiling direct emission
