Black
30.
Orange
40.
White
20.
MacAdam 2SDCM
Life L90 (20k)>118000h
CRI =90
IP20
XF
W
35W
40W
Emission
direct
indirect
Beam
XF
XF
Flux
2085 lm
3191 lm
CCT
3000K
3000K
Code
10130.20/30/40.A
Code
10130.20/30/40.APP
C
Ø1000
max 2000

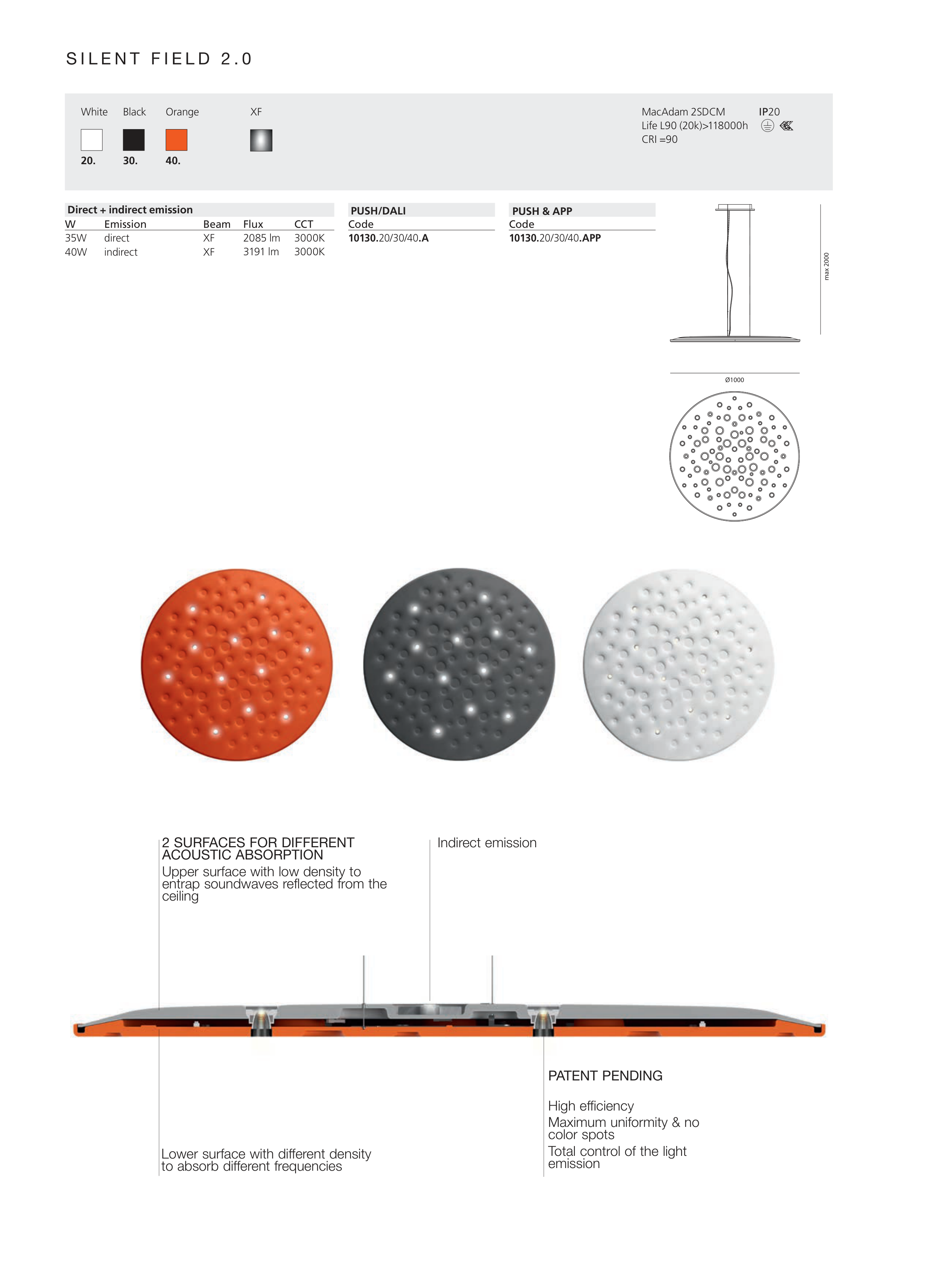

S I L E N T F I E L D 2 . 0
PUSH & APP
PUSH/DALI
Direct + indirect emission
PATENT PENDING
High efficiency
Maximum uniformity & no
color spots
Total control of the light
emission
Indirect emission
2 SURFACES FOR DIFFERENT
ACOUSTIC ABSORPTION
Upper surface with low density to
entrap soundwaves reflected from the
ceiling
Lower surface with different density
to absorb different frequencies
825
825
