Undimmable
Dimmable DALI
Code
AQ152. 01/04
AQ153. 01/04
AQ250. 01/04
Code
AQ17801
AQ173. 01/04
AQ179. 01/04
AQ18000
AQ18100
Code
AQ16801
AQ16801APP
AQ172. 01/04
AQ172. 01/04 APP
AQ177. 01/04
AQ177. 01/04 APP
DV1061
AQ16000
AQ16000APP
Dimmable DALI /APP
Undimmable
Undimmable
Code
AQ90500
AQ90600
AQ90700
AQ90800
AQ90900

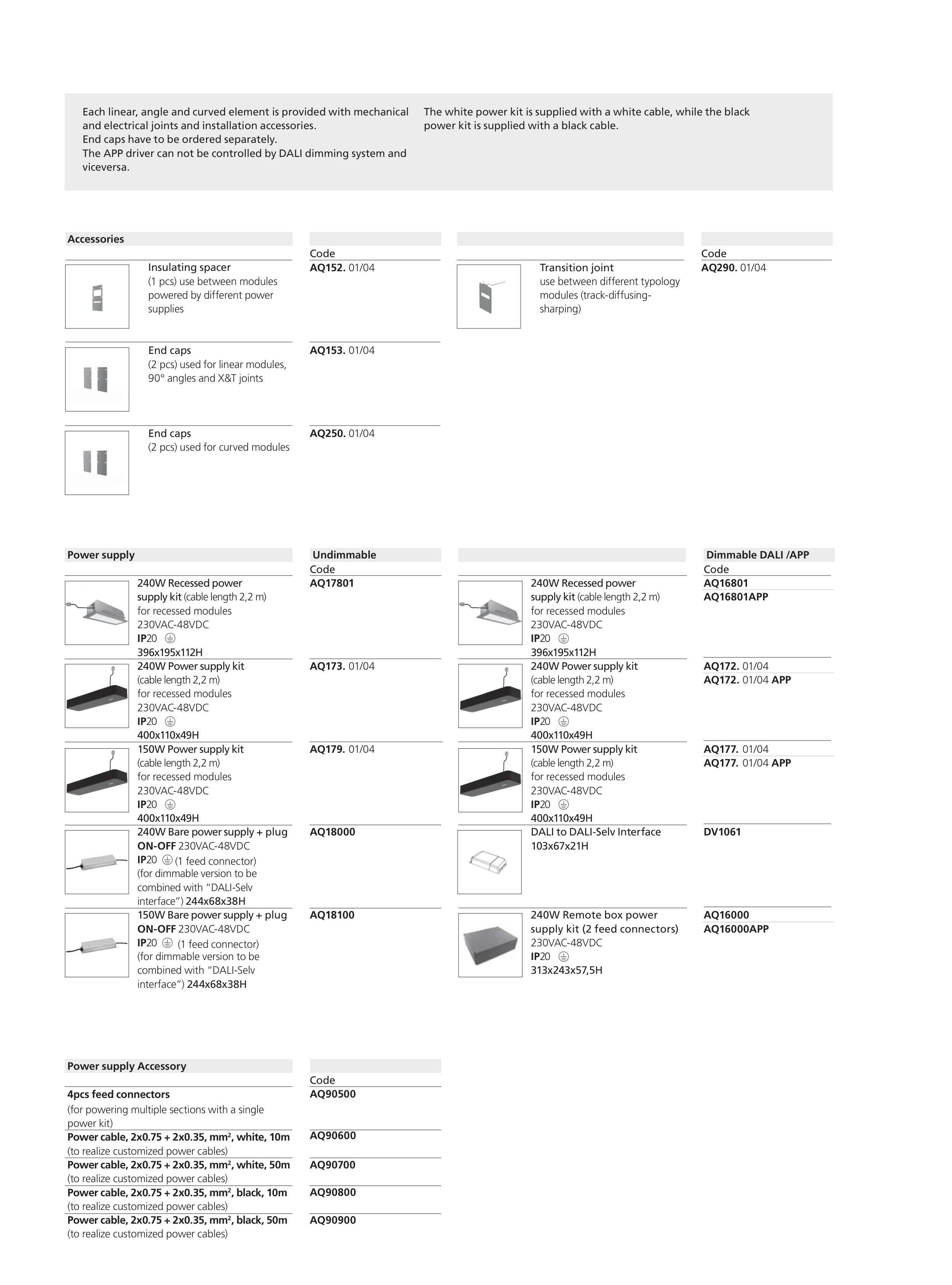

Each linear, angle and curved element is provided with mechanical
and electrical joints and installation accessories.
End caps have to be ordered separately.
The APP driver can not be controlled by DALI dimming system and
viceversa.
The white power kit is supplied with a white cable, while the black
power kit is supplied with a black cable.
Accessories
Insulating spacer
(1 pcs) use between modules
powered by different power
supplies
End caps
(2 pcs) used for linear modules,
90° angles and X&T joints
End caps
(2 pcs) used for curved modules
Power supply
240W Recessed power
supply kit (cable length 2,2 m)
for recessed modules
230VAC-48VDC
IP20
396x195x112H
240W Power supply kit
(cable length 2,2 m)
for recessed modules
230VAC-48VDC
IP20
400x110x49H
150W Power supply kit
(cable length 2,2 m)
for recessed modules
230VAC-48VDC
IP20
400x110x49H
240W Bare power supply + plug
ON-OFF 230VAC-48VDC
IP20
(1 feed connector)
(for dimmable version to be
combined with “DALI-Selv
interface”) 244x68x38H
150W Bare power supply + plug
ON-OFF 230VAC-48VDC
IP20
(1 feed connector)
(for dimmable version to be
combined with “DALI-Selv
interface”) 244x68x38H
240W Recessed power
supply kit (cable length 2,2 m)
for recessed modules
230VAC-48VDC
IP20
396x195x112H
240W Power supply kit
(cable length 2,2 m)
for recessed modules
230VAC-48VDC
IP20
400x110x49H
150W Power supply kit
(cable length 2,2 m)
for recessed modules
230VAC-48VDC
IP20
400x110x49H
DALI to DALI-Selv Interface
103x67x21H
240W Remote box power
supply kit (2 feed connectors)
230VAC-48VDC
IP20
313x243x57,5H
Power supply Accessory
4pcs feed connectors
(for powering multiple sections with a single
power kit)
Power cable, 2x0.75 + 2x0.35, mm2, white, 10m
(to realize customized power cables)
Power cable, 2x0.75 + 2x0.35, mm2, white, 50m
(to realize customized power cables)
Power cable, 2x0.75 + 2x0.35, mm2, black, 10m
(to realize customized power cables)
Power cable, 2x0.75 + 2x0.35, mm2, black, 50m
(to realize customized power cables)
Code
AQ290. 01/04
Transition joint
use between different typology
modules (track-diffusing-
sharping)
