Black
04
White
01
52
37.8
31.4

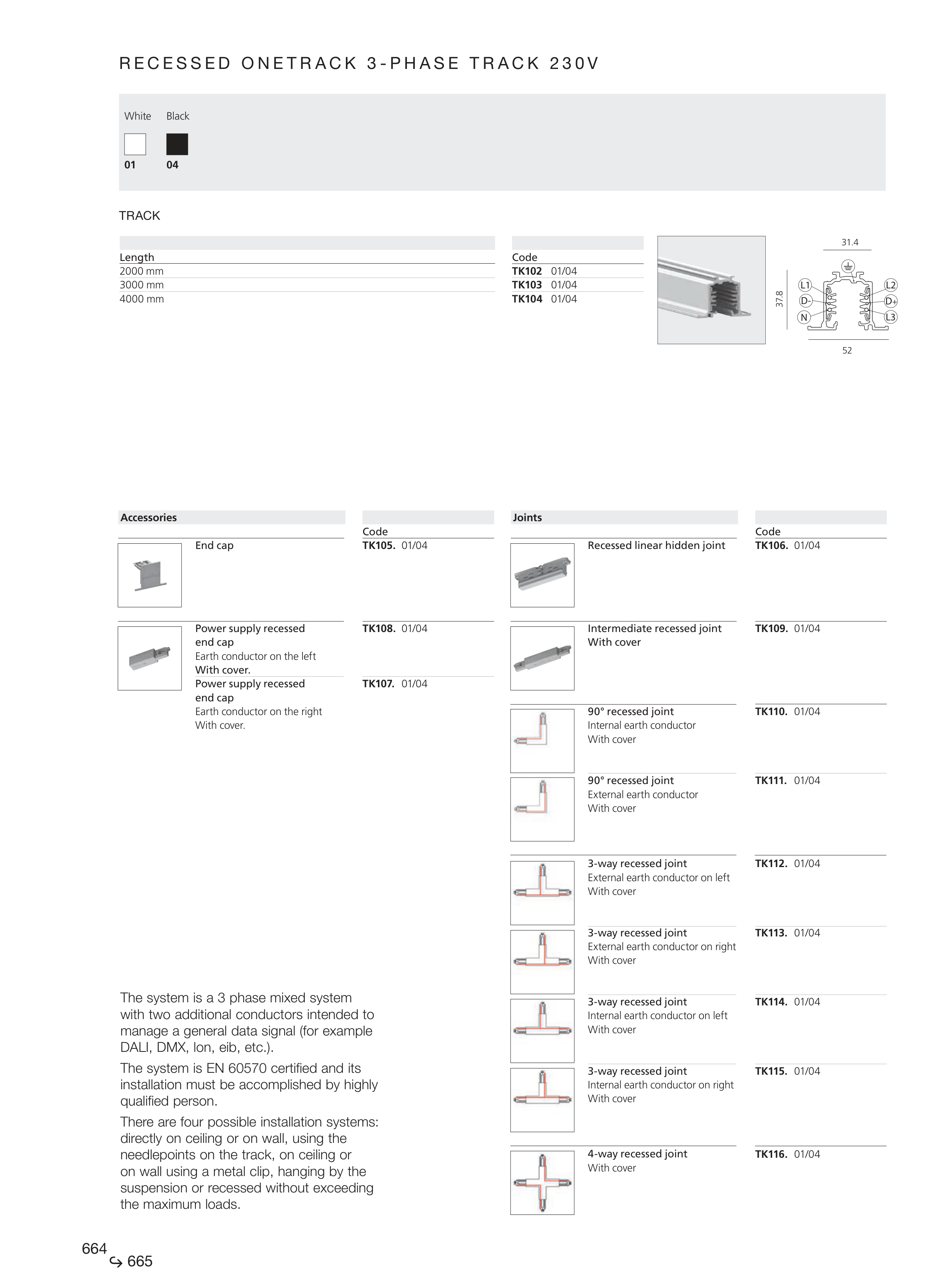

R E C E S S E D O N E T R A C K 3 - P H A S E T R A C K 2 3 0 V
Length
2000 mm
3000 mm
4000 mm
Code
TK102 01/04
TK103 01/04
TK104 01/04
TRACK
37.8
52
L1
D-
N
L3
D+
L2
31.4
Code
TK105. 01/04
TK108. 01/04
TK107. 01/04
Code
TK106. 01/04
TK109. 01/04
TK110. 01/04
TK111. 01/04
TK112. 01/04
TK113. 01/04
TK114. 01/04
TK115. 01/04
TK116. 01/04
End cap
Power supply recessed
end cap
Earth conductor on the left
With cover.
Power supply recessed
end cap
Earth conductor on the right
With cover.
Accessories
The system is a 3 phase mixed system
with two additional conductors intended to
manage a general data signal (for example
DALI, DMX, lon, eib, etc.).
The system is EN 60570 certified and its
installation must be accomplished by highly
qualified person.
There are four possible installation systems:
directly on ceiling or on wall, using the
needlepoints on the track, on ceiling or
on wall using a metal clip, hanging by the
suspension or recessed without exceeding
the maximum loads.
Recessed linear hidden joint
Intermediate recessed joint
With cover
90° recessed joint
Internal earth conductor
With cover
90° recessed joint
External earth conductor
With cover
3-way recessed joint
External earth conductor on left
With cover
3-way recessed joint
External earth conductor on right
With cover
3-way recessed joint
Internal earth conductor on left
With cover
3-way recessed joint
Internal earth conductor on right
With cover
4-way recessed joint
With cover
Joints
