Black
04
Light Engine

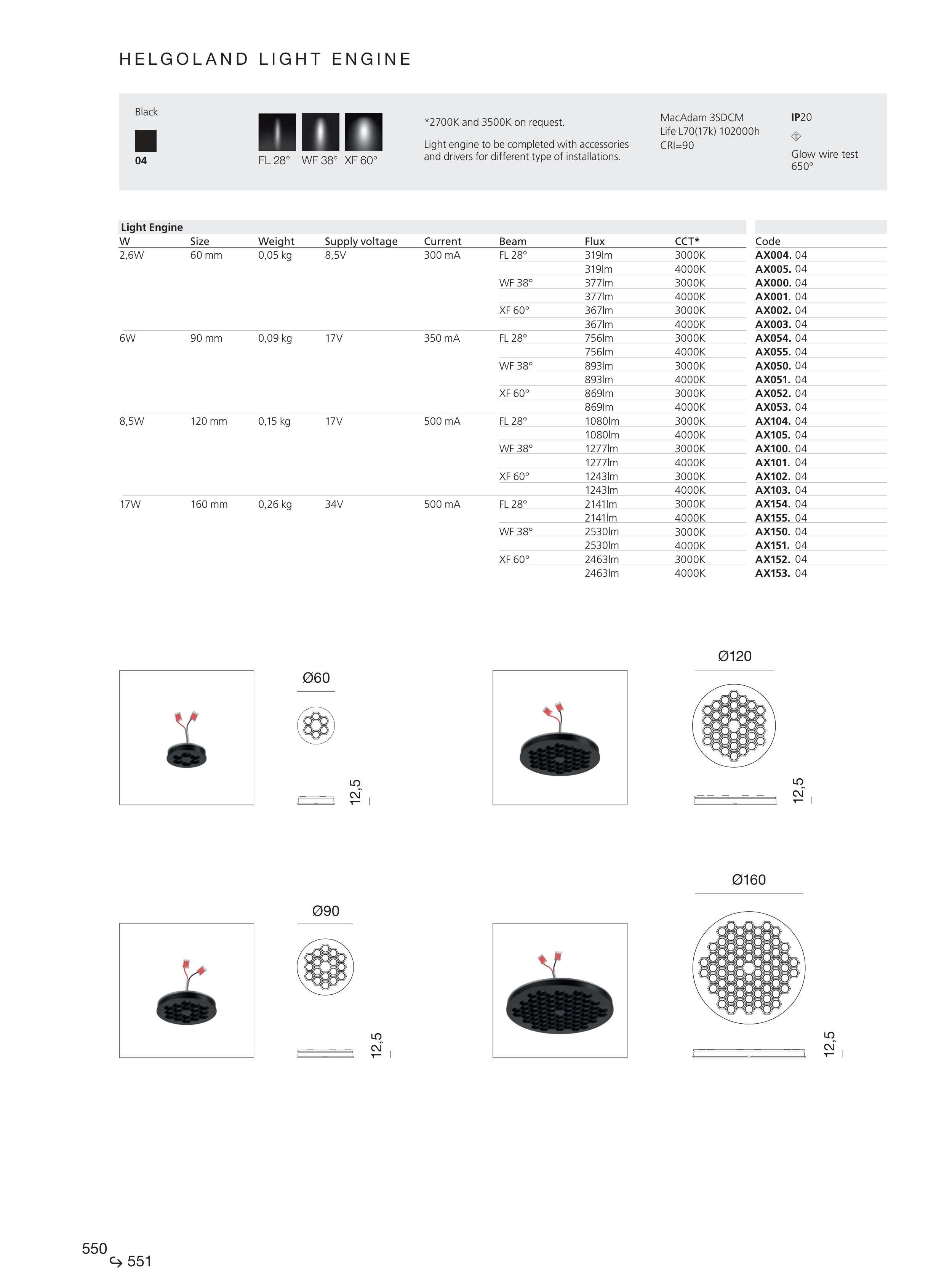

H E L G O L A N D L I G H T E N G I N E
IP20
Glow wire test
650°
Size
60 mm
90 mm
120 mm
160 mm
Weight
0,05 kg
0,09 kg
0,15 kg
0,26 kg
Current
300 mA
350 mA
500 mA
500 mA
Supply voltage
8,5V
17V
17V
34V
Code
AX004.
AX005.
AX000.
AX001.
AX002.
AX003.
AX054.
AX055.
AX050.
AX051.
AX052.
AX053.
AX104.
AX105.
AX100.
AX101.
AX102.
AX103.
AX154.
AX155.
AX150.
AX151.
AX152.
AX153.
04
04
04
04
04
04
04
04
04
04
04
04
04
04
04
04
04
04
04
04
04
04
04
04
W
2,6W
6W
8,5W
17W
Flux
319lm
319lm
377lm
377lm
367lm
367lm
756lm
756lm
893lm
893lm
869lm
869lm
1080lm
1080lm
1277lm
1277lm
1243lm
1243lm
2141lm
2141lm
2530lm
2530lm
2463lm
2463lm
Beam
FL 28°
WF 38°
XF 60°
FL 28°
WF 38°
XF 60°
FL 28°
WF 38°
XF 60°
FL 28°
WF 38°
XF 60°
CCT*
3000K
4000K
3000K
4000K
3000K
4000K
3000K
4000K
3000K
4000K
3000K
4000K
3000K
4000K
3000K
4000K
3000K
4000K
3000K
4000K
3000K
4000K
3000K
4000K
WF 38°
FL 28°
XF 60°
MacAdam 3SDCM
Life L70(17k) 102000h
CRI=90
Ø60
Ø90
Ø120
Ø160
12,5
12,5
12,5
12,5
*2700K and 3500K on request.
Light engine to be completed with accessories
and drivers for different type of installations.
