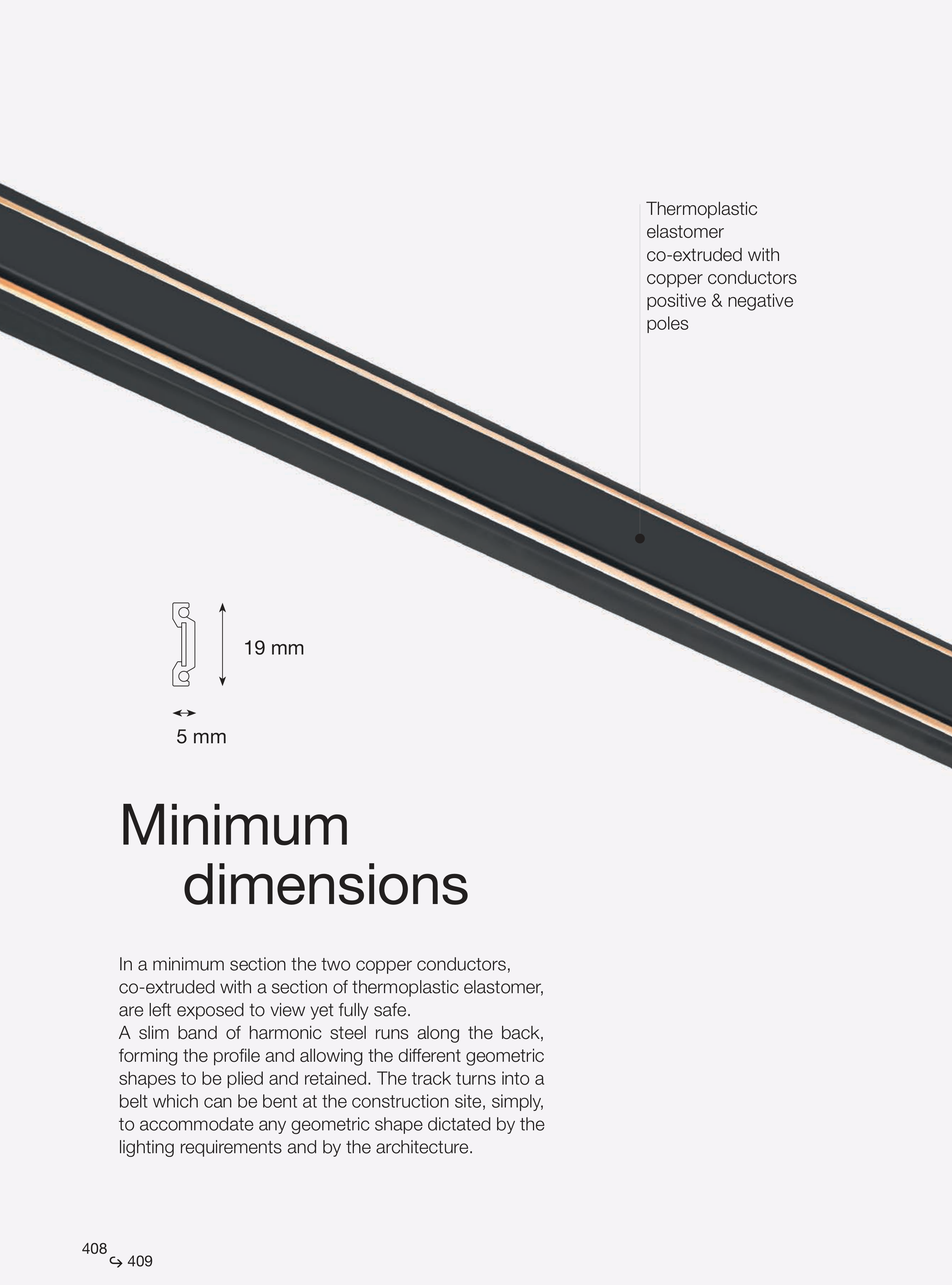

Minimum
dimensions
In a minimum section the two copper conductors,
co-extruded with a section of thermoplastic elastomer,
are left exposed to view yet fully safe.
A slim band of harmonic steel runs along the back,
forming the profile and allowing the different geometric
shapes to be plied and retained. The track turns into a
belt which can be bent at the construction site, simply,
to accommodate any geometric shape dictated by the
lighting requirements and by the architecture.
Thermoplastic
elastomer
co-extruded with
copper conductors
positive & negative
poles
19 mm
5 mm
