MacAdam 3SDCM
Life L70 (9K) 50000h
CRI =90
Black
04
White
01
IP20
FL
SP
WF
XF
***Life L70 (17K) 102000h
CRI =90
384
34
24
58
100
384
34
24
58
100
Length
W
Flux
CCT
1154 mm
24 W
2915 lm
3000K
3067 lm
4000K
2309 mm
47 W
5830 lm
3000K
6135 lm
4000K
Length
384 mm
1154 mm
2309 mm
Code
CI200. 01/04
CI201. 01/04
CI202. 01/04
Code
CI050. 01/04
CI051. 01/04
CI100. 01/04
CI101. 01/04
Dimmable DALI*
100
34
24
58

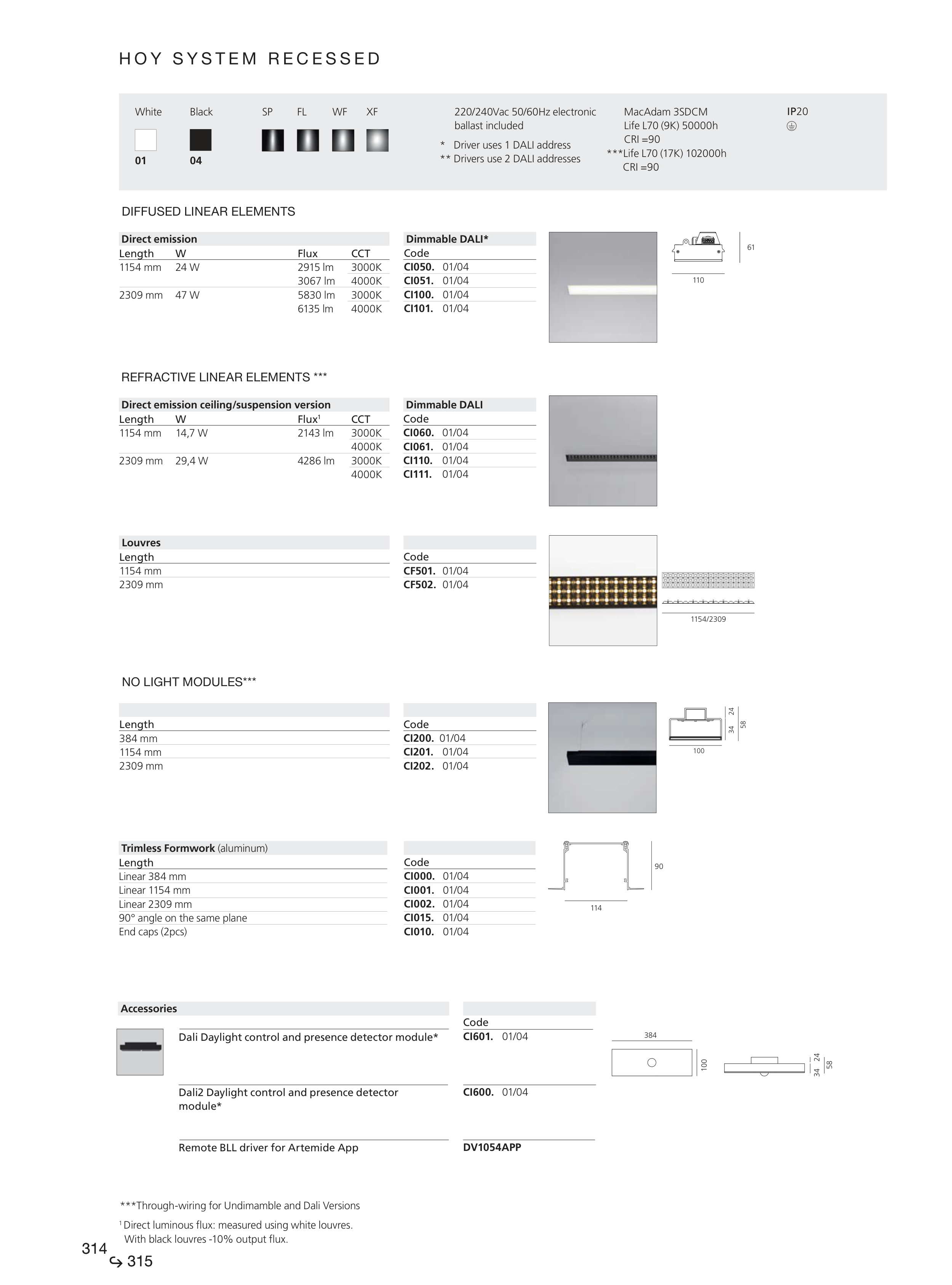

H O Y S Y S T E M R E C E S S E D
Length
W
Flux1
CCT
1154 mm
14,7 W
2143 lm
3000K
4000K
2309 mm
29,4 W
4286 lm
3000K
4000K
Code
CI060. 01/04
CI061. 01/04
CI110. 01/04
CI111. 01/04
Dimmable DALI
Length
1154 mm
2309 mm
Code
CF501. 01/04
CF502. 01/04
Direct emission ceiling/suspension version
Louvres
1154/2309
DIFFUSED LINEAR ELEMENTS
REFRACTIVE LINEAR ELEMENTS ***
NO LIGHT MODULES***
Direct emission
Code
CI000. 01/04
CI001. 01/04
CI002. 01/04
CI015. 01/04
CI010. 01/04
Length
Linear 384 mm
Linear 1154 mm
Linear 2309 mm
90° angle on the same plane
End caps (2pcs)
114
90
110
61
Code
CI601. 01/04
CI600. 01/04
DV1054APP
* Driver uses 1 DALI address
** Drivers use 2 DALI addresses
220/240Vac 50/60Hz electronic
ballast included
Trimless Formwork (aluminum)
***Through-wiring for Undimamble and Dali Versions
1 Direct luminous flux: measured using white louvres.
With black louvres -10% output flux.
Accessories
Dali Daylight control and presence detector module*
Dali2 Daylight control and presence detector
module*
Remote BLL driver for Artemide App
