Opal White
IP20
XF
→
Code
2250010A*
2251010A
2252010A
2255010A
2253010A
2254010A
2256010A
2257010A
2260010A
2259010A
2261010A
2262010A
2263010A
2264010A
2265010A
2258010A
2269010A
2270010A
2612010A
2613010A
2614010A
2615010A
2616010A
2617010A
2618010A
2619010A
2620010A
2621010A
2622010A
2623010A
2624010A

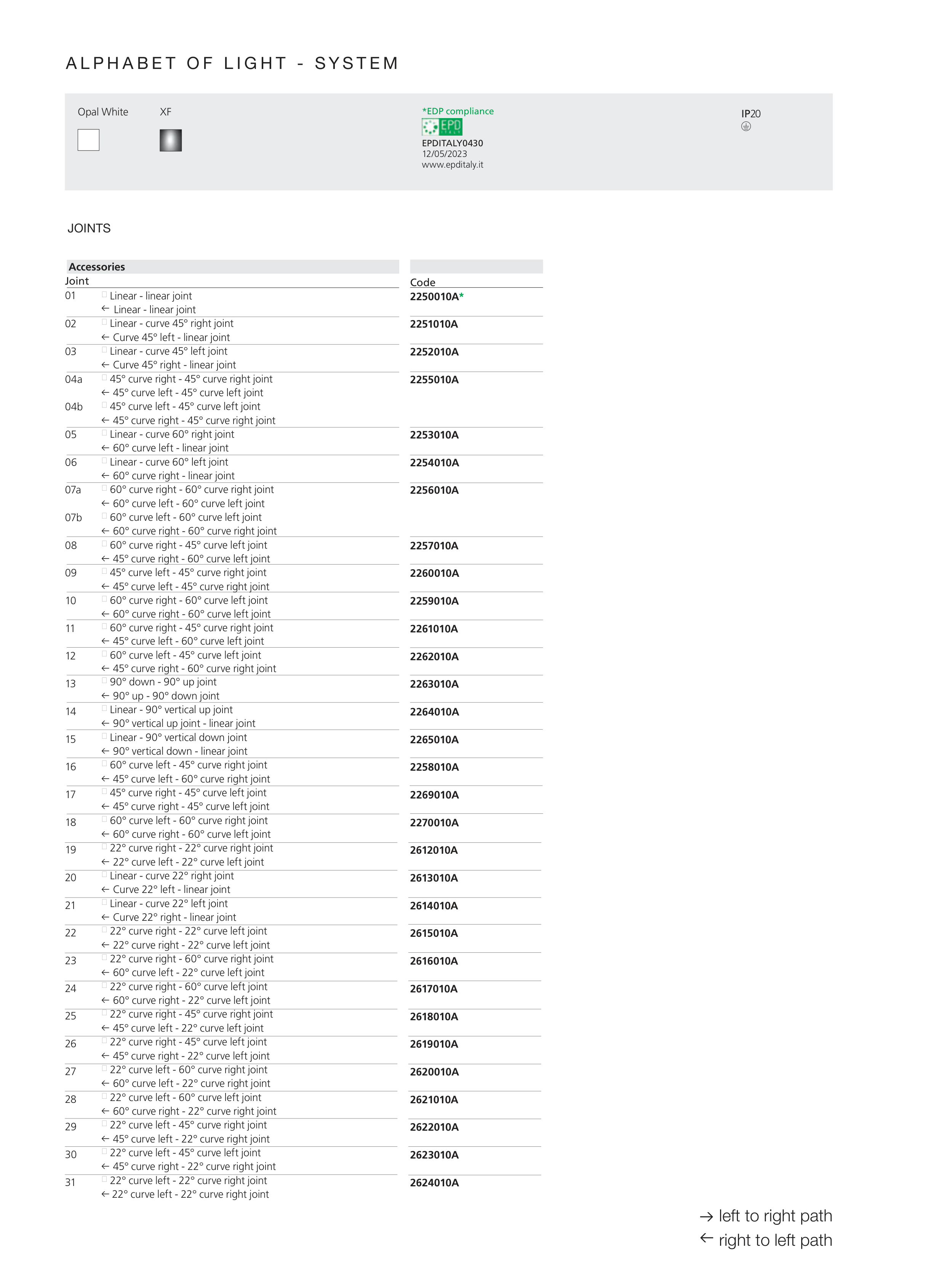

A L P H A B E T O F L I G H T - S Y S T E M
JOINTS
Accessories
→ Linear - linear joint
Linear - linear joint
→ Linear - curve 45° right joint
Curve 45° left - linear joint
→ Linear - curve 45° left joint
Curve 45° right - linear joint
→ 45° curve right - 45° curve right joint
45° curve left - 45° curve left joint
→ 45° curve left - 45° curve left joint
45° curve right - 45° curve right joint
→ Linear - curve 60° right joint
60° curve left - linear joint
→ Linear - curve 60° left joint
60° curve right - linear joint
→ 60° curve right - 60° curve right joint
60° curve left - 60° curve left joint
→ 60° curve left - 60° curve left joint
60° curve right - 60° curve right joint
→ 60° curve right - 45° curve left joint
45° curve right - 60° curve left joint
→ 45° curve left - 45° curve right joint
45° curve left - 45° curve right joint
→ 60° curve right - 60° curve left joint
60° curve right - 60° curve left joint
→ 60° curve right - 45° curve right joint
45° curve left - 60° curve left joint
→ 60° curve left - 45° curve left joint
45° curve right - 60° curve right joint
→ 90° down - 90° up joint
90° up - 90° down joint
→ Linear - 90° vertical up joint
90° vertical up joint - linear joint
→ Linear - 90° vertical down joint
90° vertical down - linear joint
→ 60° curve left - 45° curve right joint
45° curve left - 60° curve right joint
→ 45° curve right - 45° curve left joint
45° curve right - 45° curve left joint
→ 60° curve left - 60° curve right joint
60° curve right - 60° curve left joint
→ 22° curve right - 22° curve right joint
22° curve left - 22° curve left joint
→ Linear - curve 22° right joint
Curve 22° left - linear joint
→ Linear - curve 22° left joint
Curve 22° right - linear joint
→ 22° curve right - 22° curve left joint
22° curve right - 22° curve left joint
→ 22° curve right - 60° curve right joint
60° curve left - 22° curve left joint
→ 22° curve right - 60° curve left joint
60° curve right - 22° curve left joint
→ 22° curve right - 45° curve right joint
45° curve left - 22° curve left joint
→ 22° curve right - 45° curve left joint
45° curve right - 22° curve left joint
→ 22° curve left - 60° curve right joint
60° curve left - 22° curve right joint
→ 22° curve left - 60° curve left joint
60° curve right - 22° curve right joint
→ 22° curve left - 45° curve right joint
45° curve left - 22° curve right joint
→ 22° curve left - 45° curve left joint
45° curve right - 22° curve right joint
→ 22° curve left - 22° curve right joint
22° curve left - 22° curve right joint
Joint
01
02
03
04a
04b
05
06
07a
07b
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
→ left to right path
right to left path
