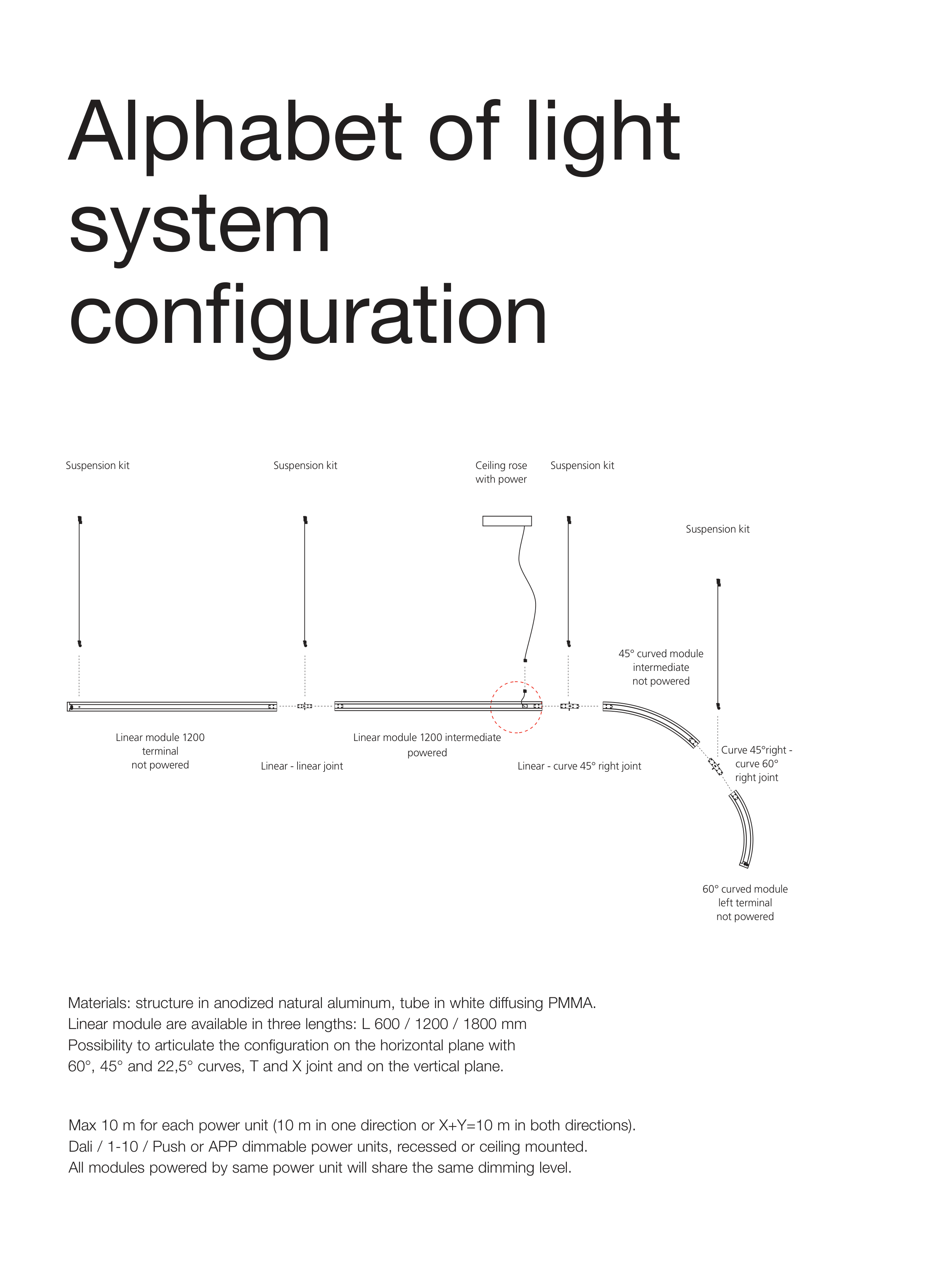

Alphabet of light
system
configuration
Materials: structure in anodized natural aluminum, tube in white diffusing PMMA.
Linear module are available in three lengths: L 600 / 1200 / 1800 mm
Possibility to articulate the configuration on the horizontal plane with
60°, 45° and 22,5° curves, T and X joint and on the vertical plane.
Max 10 m for each power unit (10 m in one direction or X+Y=10 m in both directions).
Dali / 1-10 / Push or APP dimmable power units, recessed or ceiling mounted.
All modules powered by same power unit will share the same dimming level.
Suspension kit
Suspension kit
Suspension kit
Suspension kit
Linear module 1200
terminal
not powered
Linear module 1200 intermediate
powered
Linear - linear joint
Linear - curve 45° right joint
Curve 45°right -
curve 60°
right joint
45° curved module
intermediate
not powered
60° curved module
left terminal
not powered
Ceiling rose
with power
199
