IP20
Length
1184 mm
2368 mm
W LED
27 W
38 W
54 W
70 W
Beam
S 20°
F 36°
XF 52°
S 20°
F 36°
XF 52°
S 20°
F 36°
XF 52°
S 20°
F 36°
XF 52°
Flux
1648 lm
1764 lm
1542 lm
1651 lm
1597 lm
1709 lm
2473 lm
2646 lm
2314 lm
2476 lm
2396 lm
2564 lm
3297 lm
3528 lm
3085 lm
3301 lm
3195 lm
3419 lm
4945 lm
5292 lm
4627 lm
4952 lm
4792 lm
5128 lm
CCT
3000 K
4000 K
3000 K
4000 K
3000 K
4000 K
3000 K
4000 K
3000 K
4000 K
3000 K
4000 K
3000 K
4000 K
3000 K
4000 K
3000 K
4000 K
3000 K
4000 K
3000 K
4000 K
3000 K
4000 K
Optic
2x4 optics
3x4 optics
4x4 optics
6x4 optics
Code
BH24001
BH24101
BH24201
BH24301
BH24401
BH24501
BH25001
BH25101
BH25201
BH25301
BH25401
BH25501
BH26001
BH26101
BH26201
BH26301
BH26401
BH26501
BH27001
BH27101
BH27201
BH27301
BH27401
BH27501
Trimless
Code
AF06000
Code
BH440. 01/04
Code
BH30400
BH30500
BH30700
BH31101
Length
1184 mm
2368 mm
Code
AE400. 01/04
AE410. 01/04
AE420. 01/04
AE430. 01/04
Optic
2x4 optics
3x4 optics
4x4 optics
6x4 optics
92
54
40
57
57
38
29
35
35
F
S
XF
Black
04
White
01
MacAdam 2SDCM
L90 (20k) 118000h
CRI >90
Driver
Undimmable
DALI*
APP
Optic units
1184 mm (2x4)
1184 mm (3x4)
2368 mm (4x4)
2368 mm (6x4) - order 2 pcs
W
25 W 900mA
45 W 900mA
60 W 900mA
45 W 900mA
Vac
220-240
220-240
220-240
220-240
Code
DV1022
DV1023
DV1024
DV1023
Code
DV1026
DV1027
DV1028
DV1029
Code
DV1053APP
DV1053APP
DV1053APP
DV1053APP (2x)

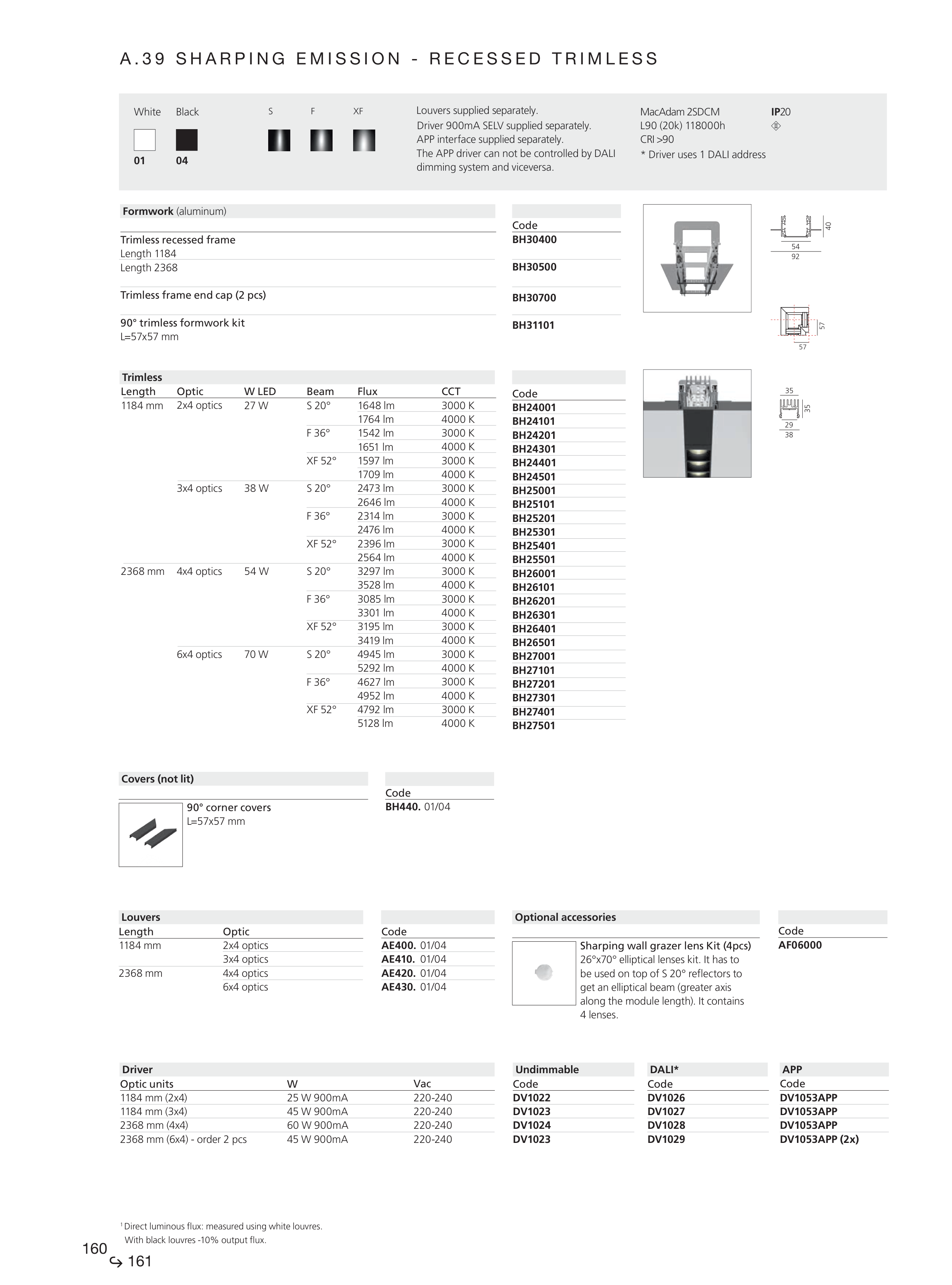

A . 3 9 S H A R P I N G E M I S S I O N - R E C E S S E D T R I M L E S S
Louvers
Optional accessories
Covers (not lit)
Sharping wall grazer lens Kit (4pcs)
26°x70° elliptical lenses kit. It has to
be used on top of S 20° reflectors to
get an elliptical beam (greater axis
along the module length). It contains
4 lenses.
90° corner covers
L=57x57 mm
Trimless recessed frame
Length 1184
Length 2368
Trimless frame end cap (2 pcs)
90° trimless formwork kit
L=57x57 mm
Louvers supplied separately.
Formwork (aluminum)
Driver 900mA SELV supplied separately.
APP interface supplied separately.
The APP driver can not be controlled by DALI
dimming system and viceversa.
* Driver uses 1 DALI address
1 Direct luminous flux: measured using white louvres.
With black louvres -10% output flux.
