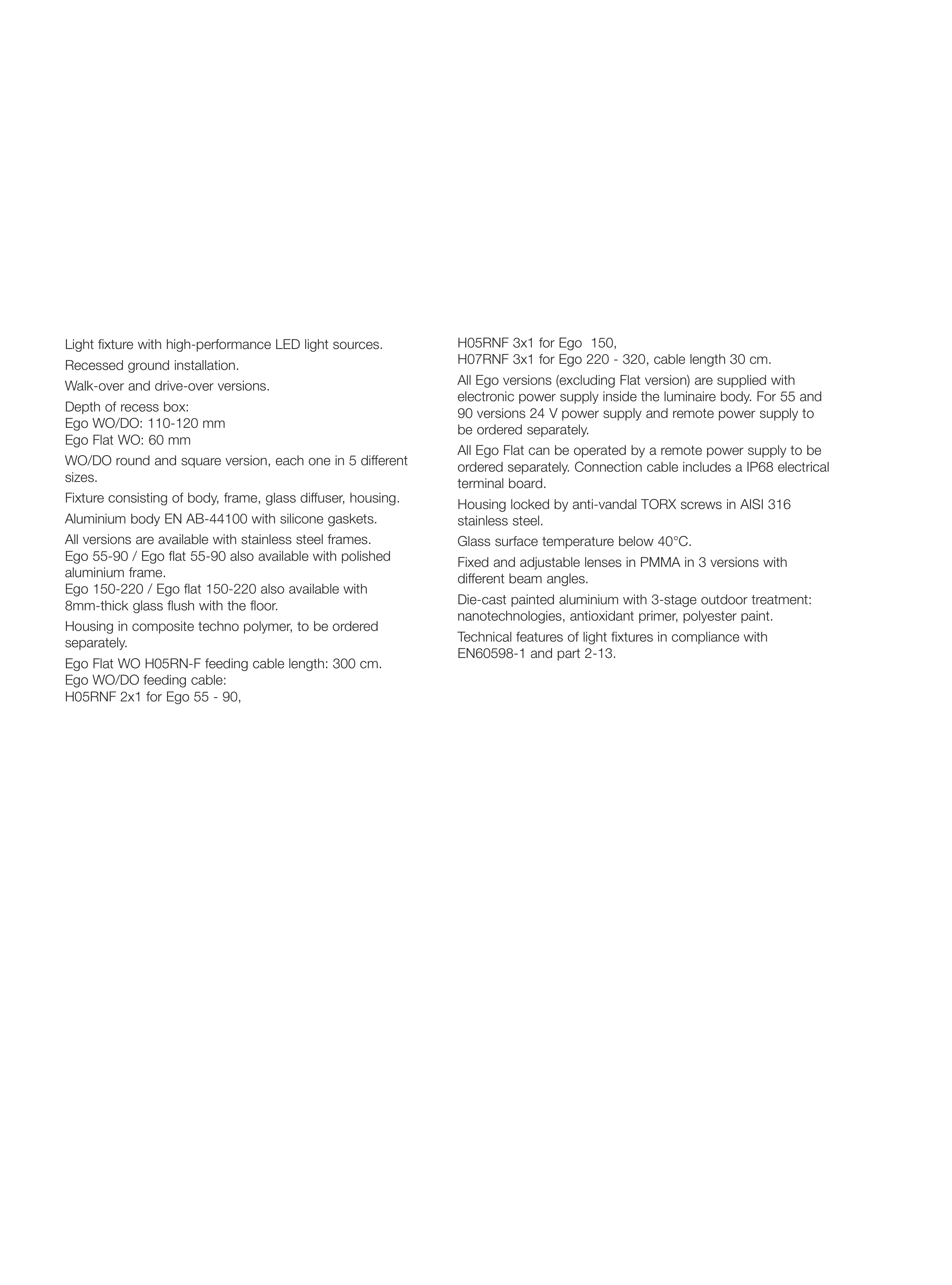

Light fixture with high-performance LED light sources.
Recessed ground installation.
Walk-over and drive-over versions.
Depth of recess box:
Ego WO/DO: 110-120 mm
Ego Flat WO: 60 mm
WO/DO round and square version, each one in 5 different
sizes.
Fixture consisting of body, frame, glass diffuser, housing.
Aluminium body EN AB-44100 with silicone gaskets.
All versions are available with stainless steel frames.
Ego 55-90 / Ego flat 55-90 also available with polished
aluminium frame.
Ego 150-220 / Ego flat 150-220 also available with
8mm-thick glass flush with the floor.
Housing in composite techno polymer, to be ordered
separately.
Ego Flat WO H05RN-F feeding cable length: 300 cm.
Ego WO/DO feeding cable:
H05RNF 2x1 for Ego 55 - 90,
H05RNF 3x1 for Ego 150,
H07RNF 3x1 for Ego 220 - 320, cable length 30 cm.
All Ego versions (excluding Flat version) are supplied with
electronic power supply inside the luminaire body. For 55 and
90 versions 24 V power supply and remote power supply to
be ordered separately.
All Ego Flat can be operated by a remote power supply to be
ordered separately. Connection cable includes a IP68 electrical
terminal board.
Housing locked by anti-vandal TORX screws in AISI 316
stainless steel.
Glass surface temperature below 40°C.
Fixed and adjustable lenses in PMMA in 3 versions with
different beam angles.
Die-cast painted aluminium with 3-stage outdoor treatment:
nanotechnologies, antioxidant primer, polyester paint.
Technical features of light fixtures in compliance with
EN60598-1 and part 2-13.
