IP65/ IP67
Aluminium
IK09
Stainless steel
IK10
WF
XS
EL
MacAdam 4SDCM
Life L70 (7K) >42300h
CRI = 80
W
CRI
Weight
Beam
Flux
CCT
8 W
80
1,35 kg
5°
666 lm
3000K
38°
565 lm
3000K
EL
545 lm
3000K
W
CRI
Weight
Beam
Flux
CCT
6 W
80
0,88 kg
5°
666 lm
3000K
38°
565 lm
3000K
EL
545 lm
3000K
135 x 135±2
94
55
90
90
120
150
220
320
117
116
150
60
ø 135 ±2mm
135 x 135±2
Code
T4065NSPW00
T4065WFLW00
T4065ELPTW00
Code
T4064NSPW00
T4064WFLW00
T4064ELPTW00
Code
T42006NSPW00
T42006WFLW00
T42006ELPTW00
Code
T42014NSPW00
T42014WFLW00
T42014ELPTW00
DV3002
DV1039
DV1042
Driver
V(ac)
L x W x H(mm)
IP
N.max
DIM
cc 14W 500mA 220-240 79 x 38 x 25
67
2
-
cc 28W 500mA 220-240 120 x 38 x 25
67
2-3
-
cc 31W 500mA 220-240 185 x 35 x 33
67
3
DALI
max 35 mm
max 40 mm

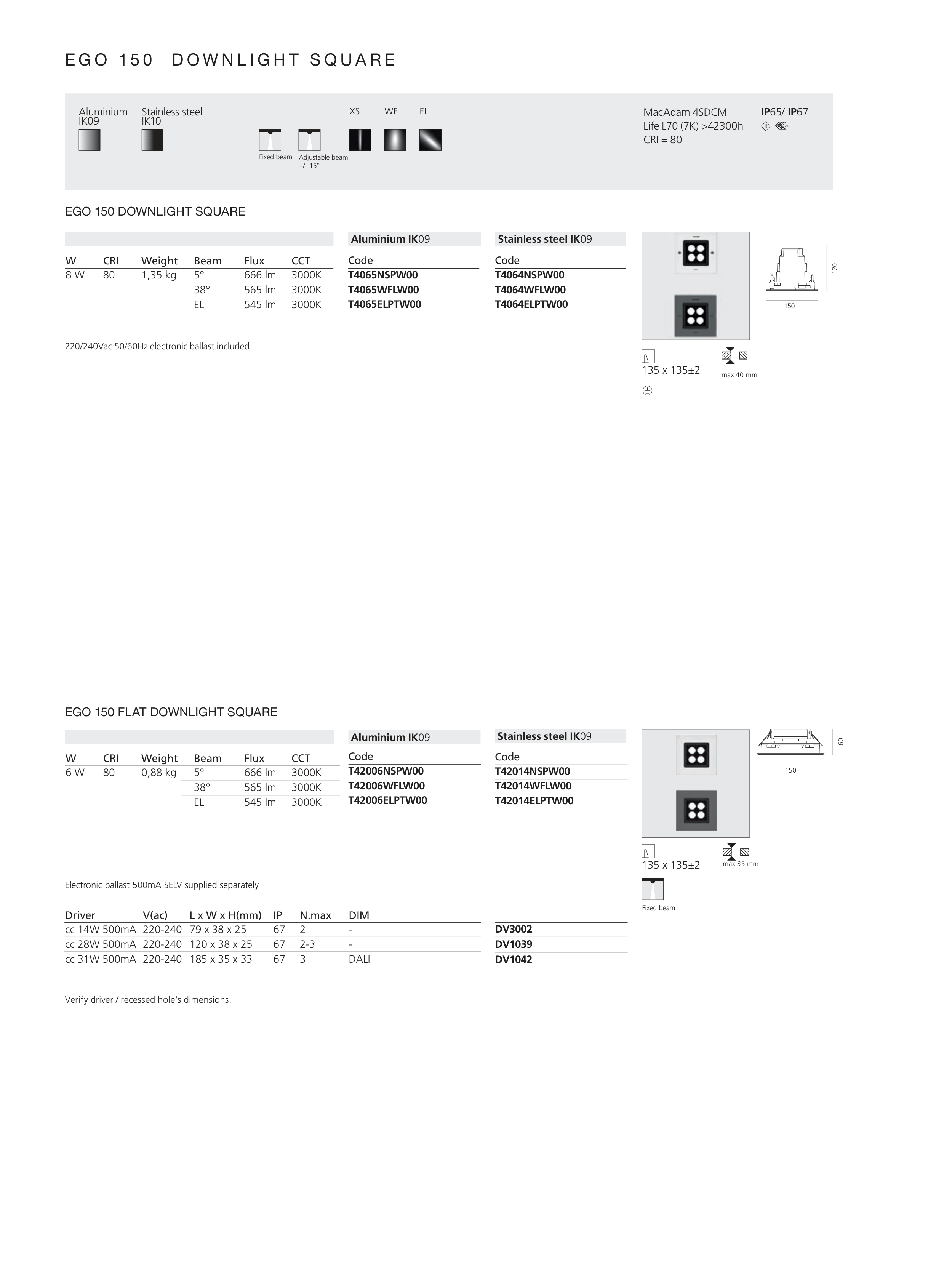

E G O 15 0 D O W N L I G H T S Q U A R E
EGO 150 DOWNLIGHT SQUARE
EGO 150 FLAT DOWNLIGHT SQUARE
Aluminium IK09
Aluminium IK09
Stainless steel IK09
Stainless steel IK09
220/240Vac 50/60Hz electronic ballast included
Electronic ballast 500mA SELV supplied separately
Adjustable beam
+/- 15°
Fixed beam
Fixed beam
Verify driver / recessed hole’s dimensions.
1113
