IP65/ IP67
Aluminium
IK09
Stainless steel
IK10
WF
XS
EL
MacAdam 4SDCM
Life L70 (7K) >42300h
CRI = 80
W
CRI
Weight
Beam
Flux
CCT
6 W
80
0,88 kg
9°
666 lm
3000K
37°
565 lm
3000K
EL
545 lm
3000K
W
CRI
Weight
Beam
Flux
CCT
8 W
80
1,3 kg
9°
666 lm
3000K
37°
565 lm
3000K
EL
545 lm
3000K
ø 135±2
ø 135±2
150
60
ø 135 ±2mm
94
∅ 55
90
∅ 90
120
∅ 150
∅ 220
∅ 320
117
116
Code
T4085NSPW00
T4085WFLW00
T4085ELPTW00
Code
T4084NSPW00
T4084WFLW00
T4084ELPTW00
Code
T42005NSPW00
T42005WFLW00
T42005ELPTW00
Code
T42013NSPW00
T42013WFLW00
T42013ELPTW00
DV3002
DV1039
DV1042
Driver
V(ac)
L x W x H(mm)
IP
N.max
DIM
cc 14W 500mA 220-240 79 x 38 x 25
67
2
-
cc 28W 500mA 220-240 120 x 38 x 25
67
2-3
-
cc 31W 500mA 220-240 185 x 35 x 33
67
3
DALI
max 35 mm
max 40 mm

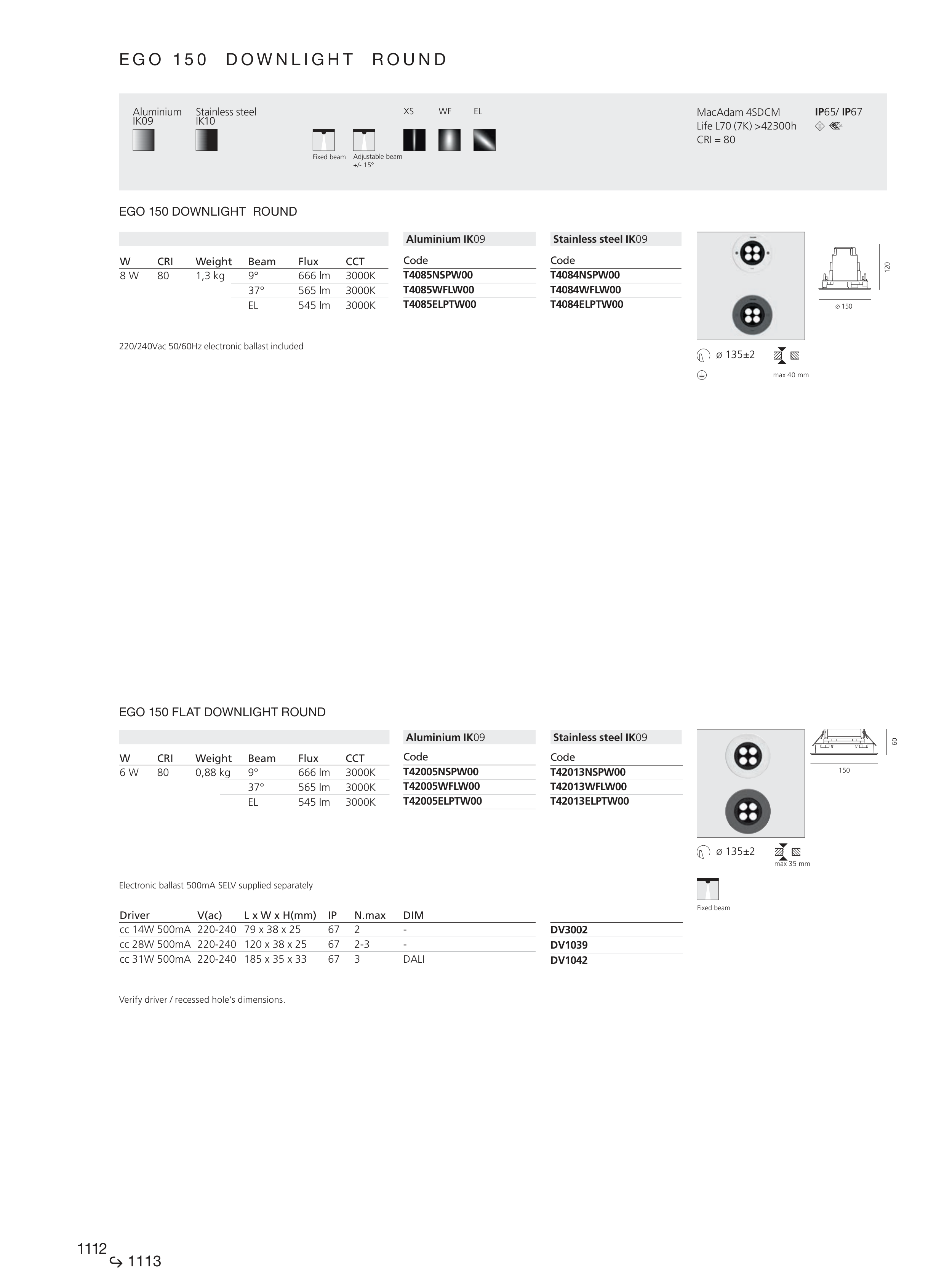

EGO 150 DOWNLIGHT ROUND
E G O 15 0 D O W N L I G H T R O U N D
EGO 150 FLAT DOWNLIGHT ROUND
Aluminium IK09
Aluminium IK09
Stainless steel IK09
Stainless steel IK09
220/240Vac 50/60Hz electronic ballast included
Electronic ballast 500mA SELV supplied separately
Adjustable beam
+/- 15°
Fixed beam
Fixed beam
Verify driver / recessed hole’s dimensions.
1112
1113
