IP65/ IP67
Aluminium
IK09
Stainless steel
IK10
WF
XS
EL
MacAdam 4SDCM
Life L90 (9K) >54400h
CRI = 80
ø 47±1
94
55
90
90
120
150
220
320
117
116
ø 47 ±1mm
ø 55
60
ø 47±1
W
CRI
Weight
Beam
Flux
CCT
1,5 W
80
0,52 kg
14°
83 lm
3000K
32°
76 lm
3000K
EL
77 lm
3000K
W
CRI
Weight
Beam
Flux
CCT
1,2 W
80
0,39 kg
14°
83 lm
3000K
32°
76 lm
3000K
EL
78 lm
3000K
Code
T4060SPW00
T4060WFLW00
T4060ELPTW00
Code
T42002SPW00
T42002WFLW00
T42002ELPTW00
Code
T4061SPW00
T4061WFLW00
T4061ELPTW00
DV1041
T409996
T409998
T409999
Driver
24W IP67 DALI
185x35x33mm
Driver
25 W IP67
148x40x32mm
Driver
60 W IP67
163x43x32mm
Driver
90 W IP67
161x61x36mm
Code
T42010SPW00
T42010WFLW00
T42010ELPTW00
DV3001
DV1042
Driver
V(ac)
L x W x H(mm)
IP
N.max
DIM
cc 14W 350mA 220-240 79 x 38 x 25
67
4
-
cc 23W 350mA 220-240 185 x 35 x 33
67
5
DALI
max 35 mm
max 40 mm
Aluminium IK09
Aluminium IK09
Stainless steel IK10
Stainless steel IK10

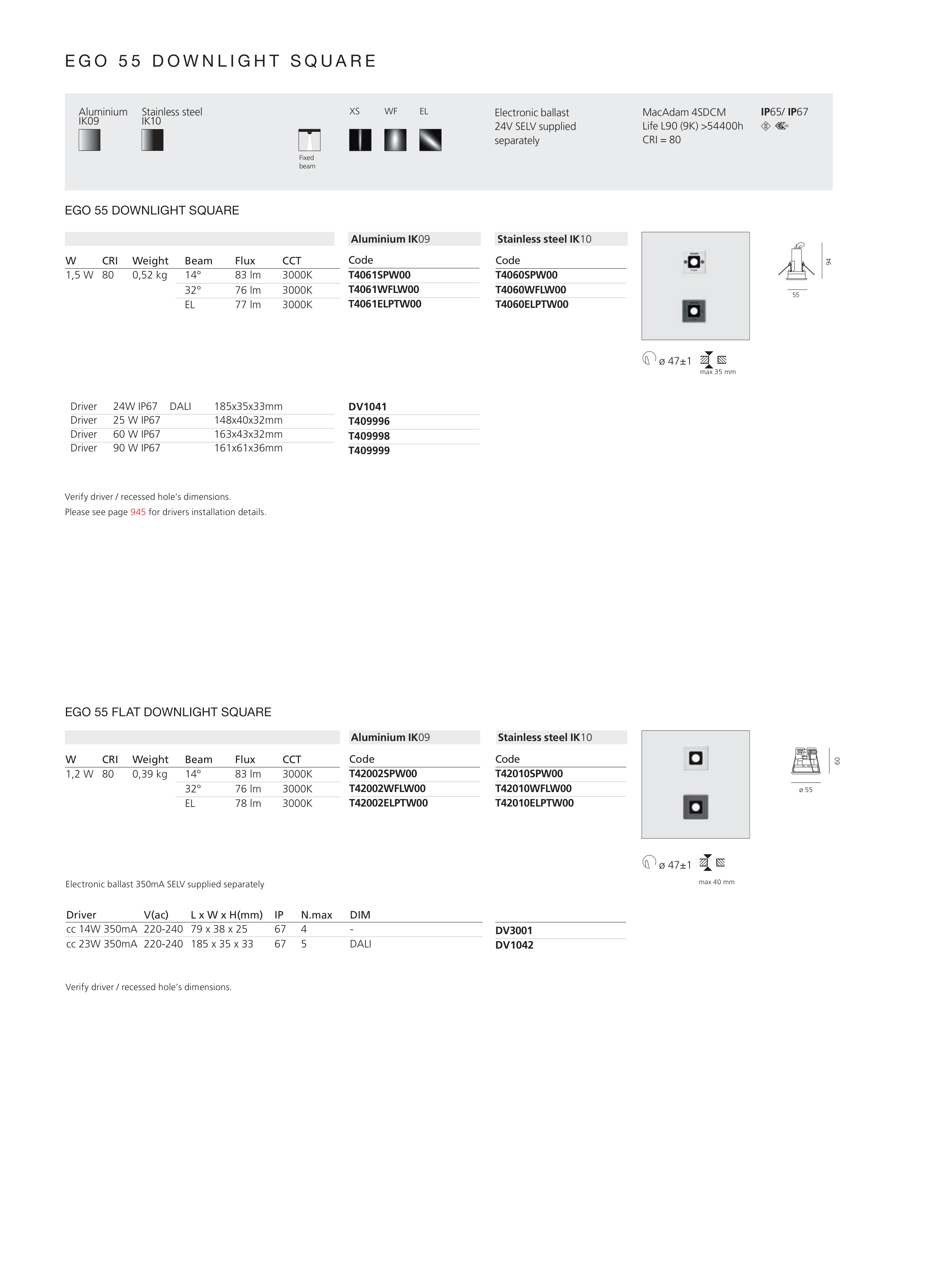

EGO 55 DOWNLIGHT SQUARE
E G O 5 5 D O W N L I G H T S Q U A R E
EGO 55 FLAT DOWNLIGHT SQUARE
Electronic ballast
24V SELV supplied
separately
Please see page 945 for drivers installation details.
Fixed
beam
Verify driver / recessed hole’s dimensions.
Verify driver / recessed hole’s dimensions.
Electronic ballast 350mA SELV supplied separately
1109
