IP65/ IP67
Aluminium
IK09
Stainless steel
IK10
MacAdam 4SDCM
Life L90 (9K) >54400h
CRI = 80
WF
XS
EL
ø 47±1
ø 47 ±1mm
ø 55
60
ø 47±1
94
∅ 55
90
∅ 90
120
∅ 150
∅ 220
∅ 320
117
116
W
CRI
Weight
Beam
Flux
CCT
1,5 W
80
0,28 kg
14°
83 lm
3000K
32°
76 lm
3000K
EL
77 lm
3000K
W
CRI
Weight
Beam
Flux
CCT
1,2 W
80
0,39 kg
14°
83 lm
3000K
32°
76 lm
3000K
EL
78 lm
3000K
Code
T4080SPW00
T4080WFLW00
T4080ELPTW00
Code
T42001SPW00
T42001WFLW00
T42001ELPTW00
Code
T4081SPW00
T4081WFLW00
T4081ELPTW00
DV1041
T409996
T409998
T409999
Driver
24W IP67 DALI
185x35x33mm
Driver
25 W IP67
148x40x32mm
Driver
60 W IP67
163x43x32mm
Driver
90 W IP67
161x61x36mm
Code
T42009SPW00
T42009WFLW00
T42009ELPTW00
DV3001
DV1042
Driver
V(ac)
L x W x H(mm)
IP
N.max
DIM
cc 14W 350mA 220-240 79 x 38 x 25
67
4
-
cc 23W 350mA 220-240 185 x 35 x 33
67
5
DALI
max 35 mm
max 40 mm

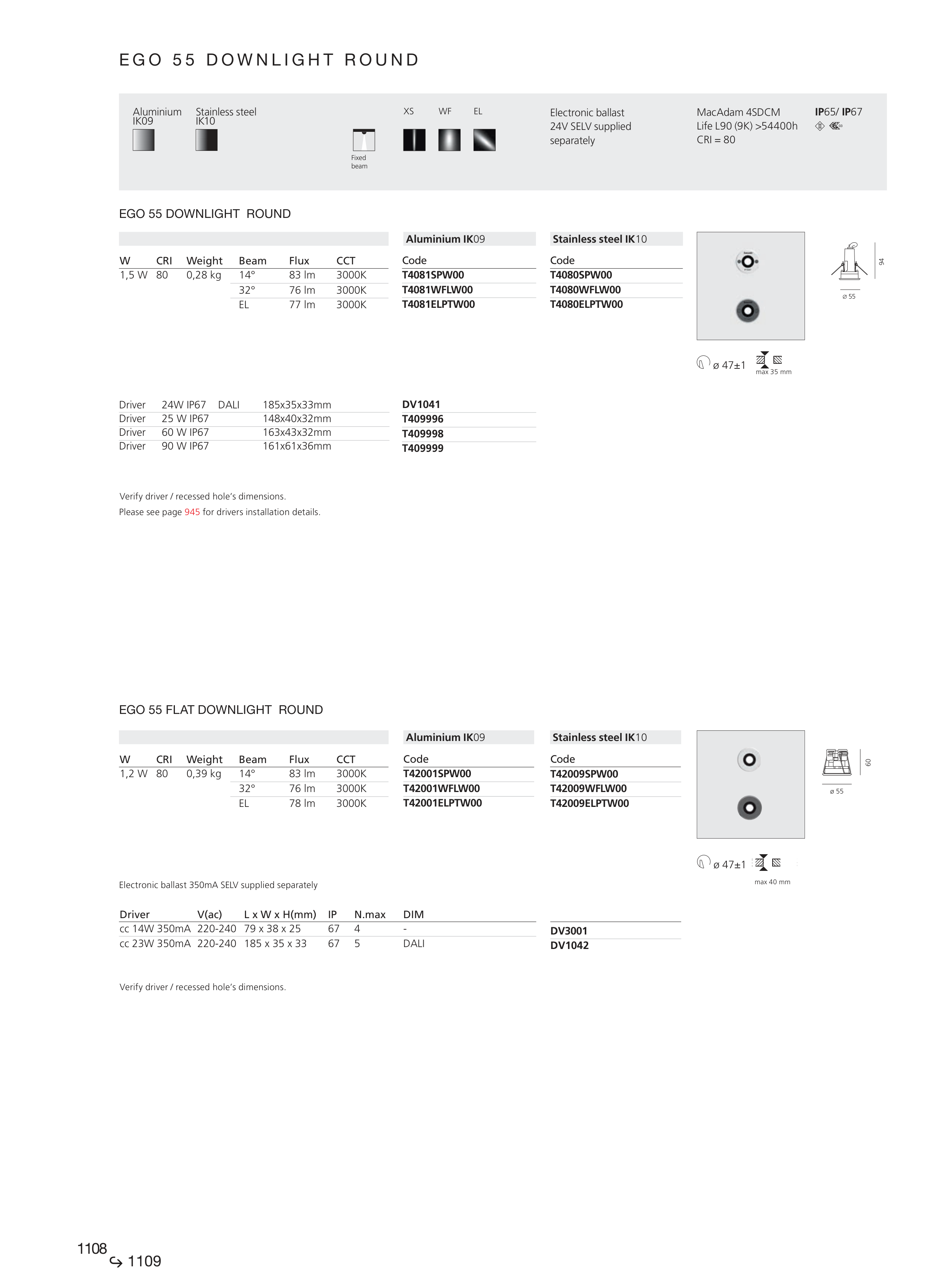

E G O 5 5 D O W N L I G H T R O U N D
EGO 55 DOWNLIGHT ROUND
EGO 55 FLAT DOWNLIGHT ROUND
Aluminium IK09
Aluminium IK09
Stainless steel IK10
Stainless steel IK10
Electronic ballast
24V SELV supplied
separately
Please see page 945 for drivers installation details.
Fixed
beam
Verify driver / recessed hole’s dimensions.
Verify driver / recessed hole’s dimensions.
Electronic ballast 350mA SELV supplied separately
