max 35 mm
max 40 mm
∅ 203 ±2 mm
∅ 203 ±2 mm
203 ±2 mm
203 ±2 mm

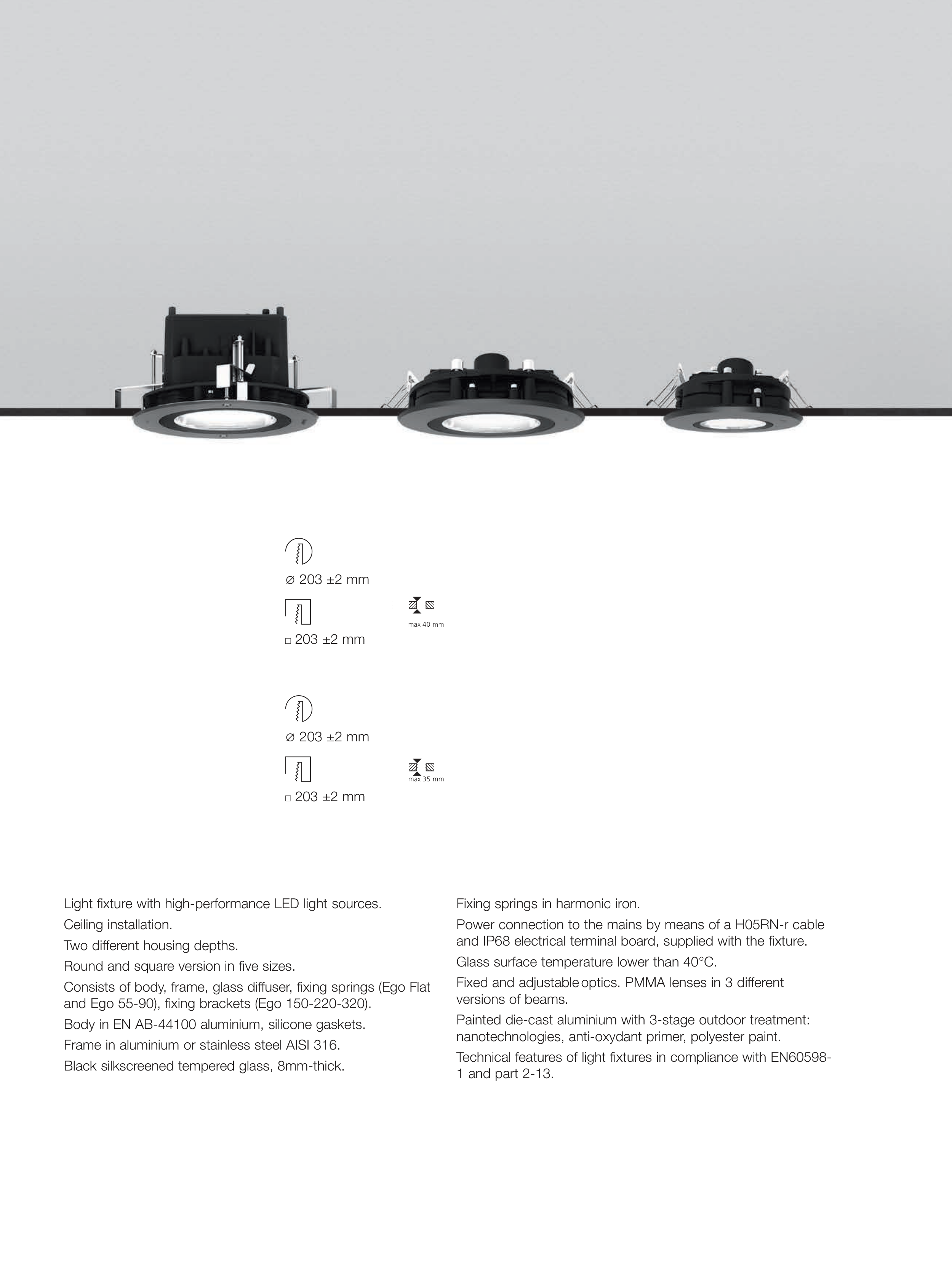

Ego downlight
typologies
Light fixture with high-performance LED light sources.
Ceiling installation.
Two different housing depths.
Round and square version in five sizes.
Consists of body, frame, glass diffuser, fixing springs (Ego Flat
and Ego 55-90), fixing brackets (Ego 150-220-320).
Body in EN AB-44100 aluminium, silicone gaskets.
Frame in aluminium or stainless steel AISI 316.
Black silkscreened tempered glass, 8mm-thick.
Fixing springs in harmonic iron.
Power connection to the mains by means of a H05RN-r cable
and IP68 electrical terminal board, supplied with the fixture.
Glass surface temperature lower than 40°C.
Fixed and adjustable optics. PMMA lenses in 3 different
versions of beams.
Painted die-cast aluminium with 3-stage outdoor treatment:
nanotechnologies, anti-oxydant primer, polyester paint.
Technical features of light fixtures in compliance with EN60598-
1 and part 2-13.
