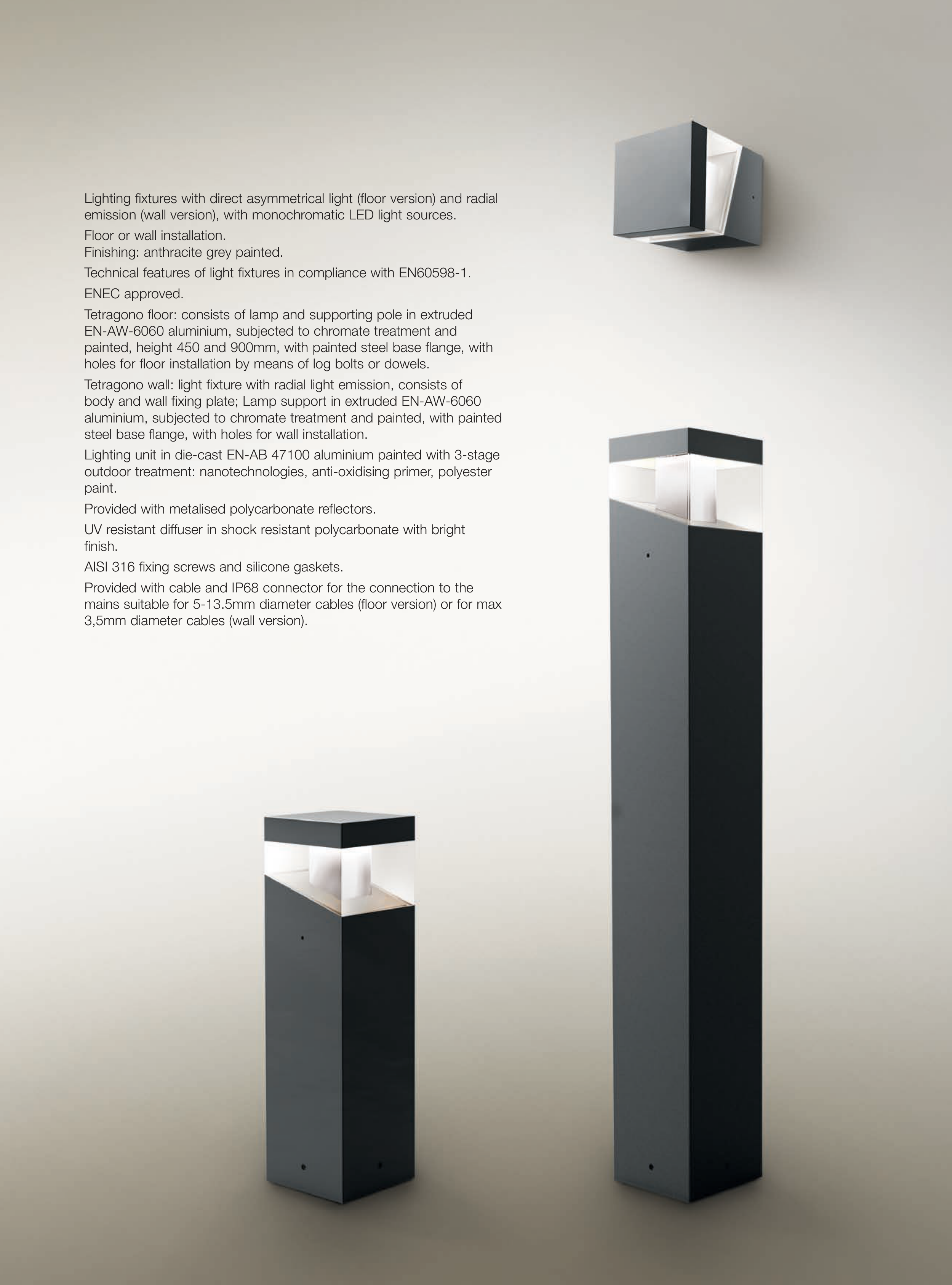

Lighting fixtures with direct asymmetrical light (floor version) and radial
emission (wall version), with monochromatic LED light sources.
Floor or wall installation.
Finishing: anthracite grey painted.
Technical features of light fixtures in compliance with EN60598-1.
ENEC approved.
Tetragono floor: consists of lamp and supporting pole in extruded
EN-AW-6060 aluminium, subjected to chromate treatment and
painted, height 450 and 900mm, with painted steel base flange, with
holes for floor installation by means of log bolts or dowels.
Tetragono wall: light fixture with radial light emission, consists of
body and wall fixing plate; Lamp support in extruded EN-AW-6060
aluminium, subjected to chromate treatment and painted, with painted
steel base flange, with holes for wall installation.
Lighting unit in die-cast EN-AB 47100 aluminium painted with 3-stage
outdoor treatment: nanotechnologies, anti-oxidising primer, polyester
paint.
Provided with metalised polycarbonate reflectors.
UV resistant diffuser in shock resistant polycarbonate with bright
finish.
AISI 316 fixing screws and silicone gaskets.
Provided with cable and IP68 connector for the connection to the
mains suitable for 5-13.5mm diameter cables (floor version) or for max
3,5mm diameter cables (wall version).
