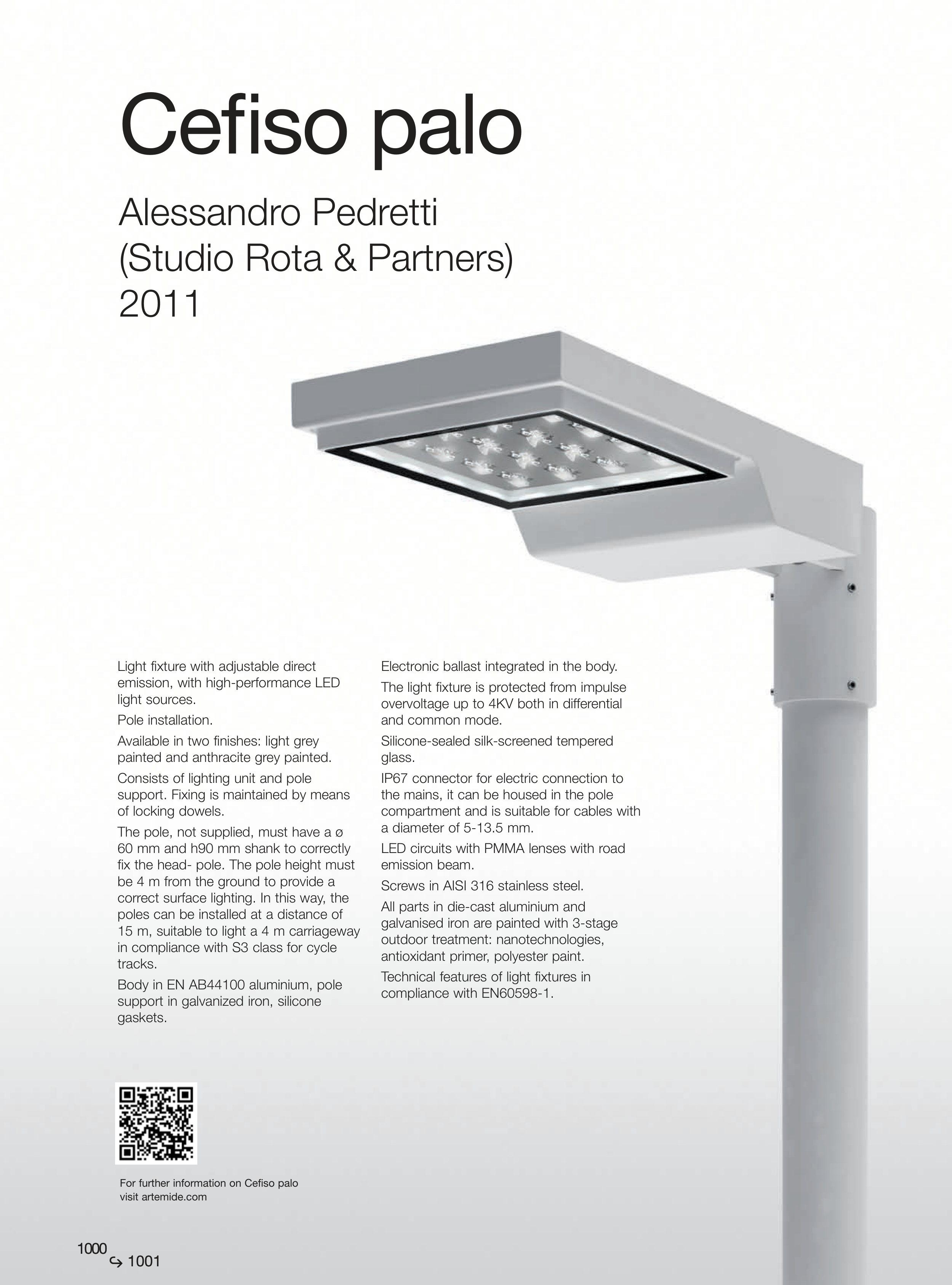

Cefiso palo
Alessandro Pedretti
(Studio Rota & Partners)
2011
Electronic ballast integrated in the body.
The light fixture is protected from impulse
overvoltage up to 4KV both in differential
and common mode.
Silicone-sealed silk-screened tempered
glass.
IP67 connector for electric connection to
the mains, it can be housed in the pole
compartment and is suitable for cables with
a diameter of 5-13.5 mm.
LED circuits with PMMA lenses with road
emission beam.
Screws in AISI 316 stainless steel.
All parts in die-cast aluminium and
galvanised iron are painted with 3-stage
outdoor treatment: nanotechnologies,
antioxidant primer, polyester paint.
Technical features of light fixtures in
compliance with EN60598-1.
Light fixture with adjustable direct
emission, with high-performance LED
light sources.
Pole installation.
Available in two finishes: light grey
painted and anthracite grey painted.
Consists of lighting unit and pole
support. Fixing is maintained by means
of locking dowels.
The pole, not supplied, must have a ø
60 mm and h90 mm shank to correctly
fix the head- pole. The pole height must
be 4 m from the ground to provide a
correct surface lighting. In this way, the
poles can be installed at a distance of
15 m, suitable to light a 4 m carriageway
in compliance with S3 class for cycle
tracks.
Body in EN AB44100 aluminium, pole
support in galvanized iron, silicone
gaskets.
