56
11 (-11)
ON/OFF (A)
3000K (-930)
ON/OFF (A)
3000K (-930)
12 (-12)
DALI (B), BLE (T),
ON/OFF-E (G),
DALI-E (H)
4000K (-940)
As modular lighting system, RIGO-IN51 allows infinite combinations of linear and angular,
Luminaire
Extruded aluminium body; Die-cast aluminium
end caps; Polyester powder paint resistant to
UV rays; PMMA lenses for LEDs; Transparent
microprismatic polycarbonate or opal screen, or
reflector in brushed aluminum; High quality LED
sources characterized according to IES TM-30,
with high color consistency <3SDCM and long
useful life >60000 hours at L80; It complies with
standards EN 60598-1 and EN 60598-2-2.
Installation
Recessed installation; Grommet for single cable
entry; Galvanized steel brackets.
Versions with Casambi and other modern
control systems available, for more information
caps and fixation accessories to be ordered
separately.
Standard Product
Available Options

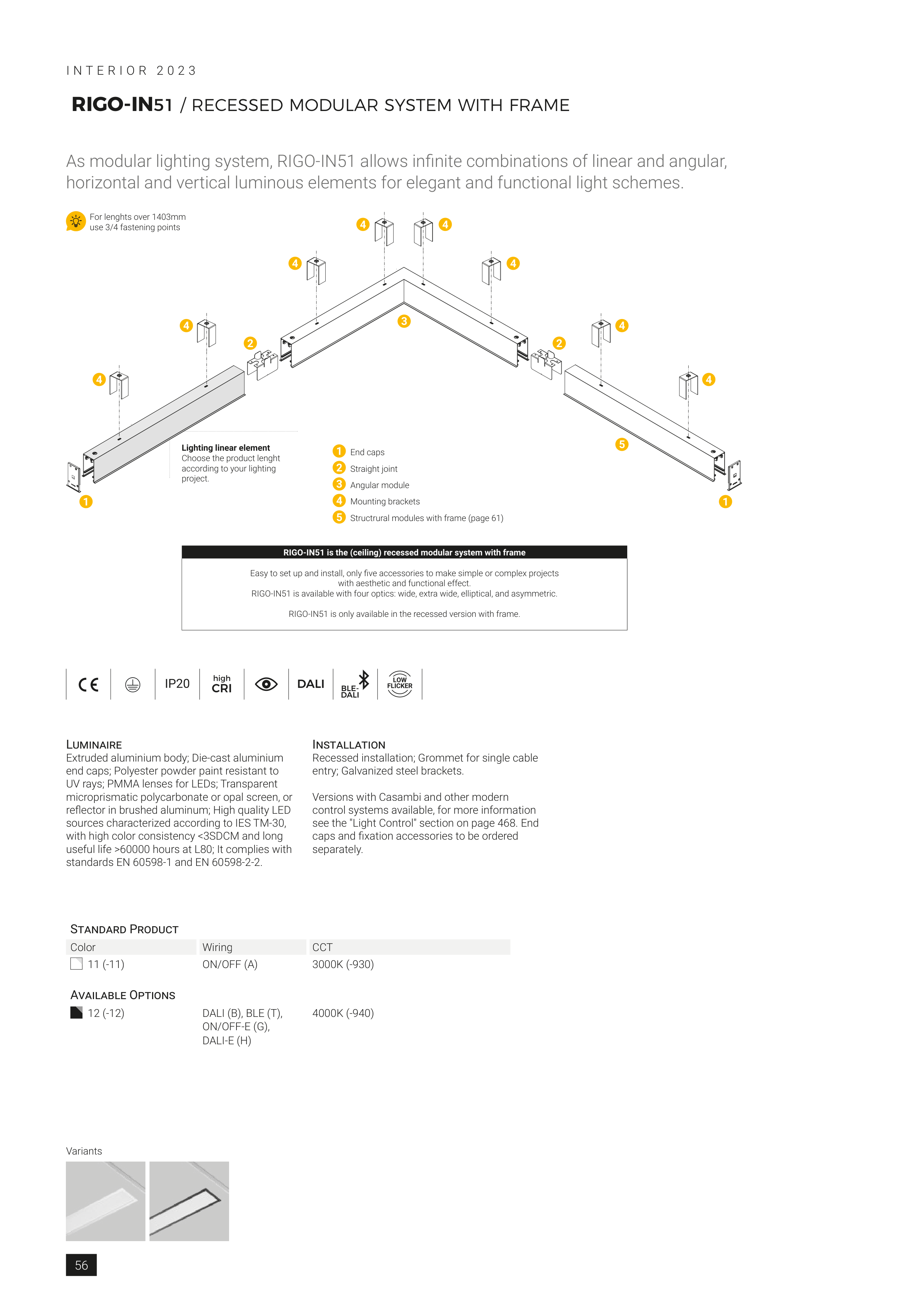

RIGO-IN51 / RECESSED MODULAR SYSTEM WITH FRAME
For lenghts over 1403mm
use 3/4 fastening points
according to your lighting
project.
RIGO-IN51 is the (ceiling) recessed modular system with frame
Easy to set up and install, only five accessories to make simple or complex projects
with aesthetic and functional effect.
RIGO-IN51 is available with four optics: wide, extra wide, elliptical, and asymmetric.
RIGO-IN51 is only available in the recessed version with frame.
Straight joint
Mounting brackets
Structrural modules with frame (page 61)
