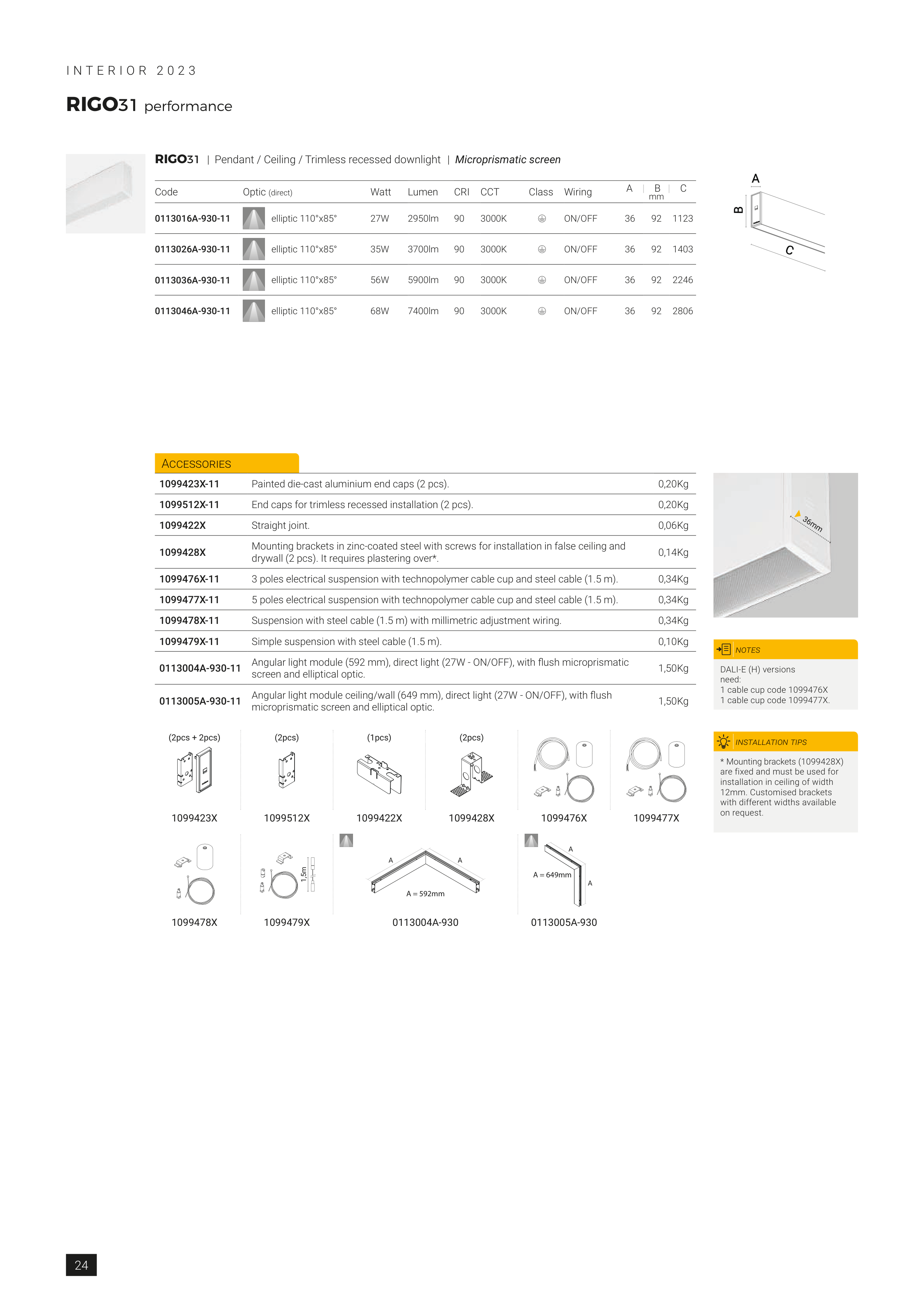

RIGO31 performance
0113016A-930-11
elliptic 110°x85°
27W
2950lm
90
3000K
1
ON/OFF
92
1123
92
1123
0113026A-930-11
elliptic 110°x85°
35W
3700lm
90
3000K
1
ON/OFF
92
1403
92
1403
0113036A-930-11
elliptic 110°x85°
56W
5900lm
90
3000K
1
ON/OFF
92
2246
92
2246
0113046A-930-11
elliptic 110°x85°
7400lm
90
3000K
1
ON/OFF
92
2806
92
2806
A = 592mm
A = 649mm
1,5m
RIGO31 | Pendant / Ceiling / Trimless recessed downlight
Accessories
notes
installation tips
DALI-E (H) versions
need:
1 cable cup code 1099476X
1 cable cup code 1099477X.
* Mounting brackets (1099428X)
are fixed and must be used for
installation in ceiling of width
12mm. Customised brackets
with different widths available
on request.
1099423X-11
Painted die-cast aluminium end caps (2 pcs).
0,20Kg
1099512X-11
End caps for trimless recessed installation (2 pcs).
0,20Kg
1099422X
Straight joint.
0,06Kg
1099428X
Mounting brackets in zinc-coated steel with screws for installation in false ceiling and
drywall (2 pcs). It requires plastering over*.
0,14Kg
1099476X-11
3 poles electrical suspension with technopolymer cable cup and steel cable (1.5 m).
0,34Kg
1099477X-11
5 poles electrical suspension with technopolymer cable cup and steel cable (1.5 m).
0,34Kg
1099478X-11
Suspension with steel cable (1.5 m) with millimetric adjustment wiring.
0,34Kg
1099479X-11
Simple suspension with steel cable (1.5 m).
0,10Kg
0113004A-930-11
Angular light module (592 mm), direct light (27W - ON/OFF), with flush microprismatic
1,50Kg
0113005A-930-11
Angular light module ceiling/wall (649 mm), direct light (27W - ON/OFF), with flush
1,50Kg
