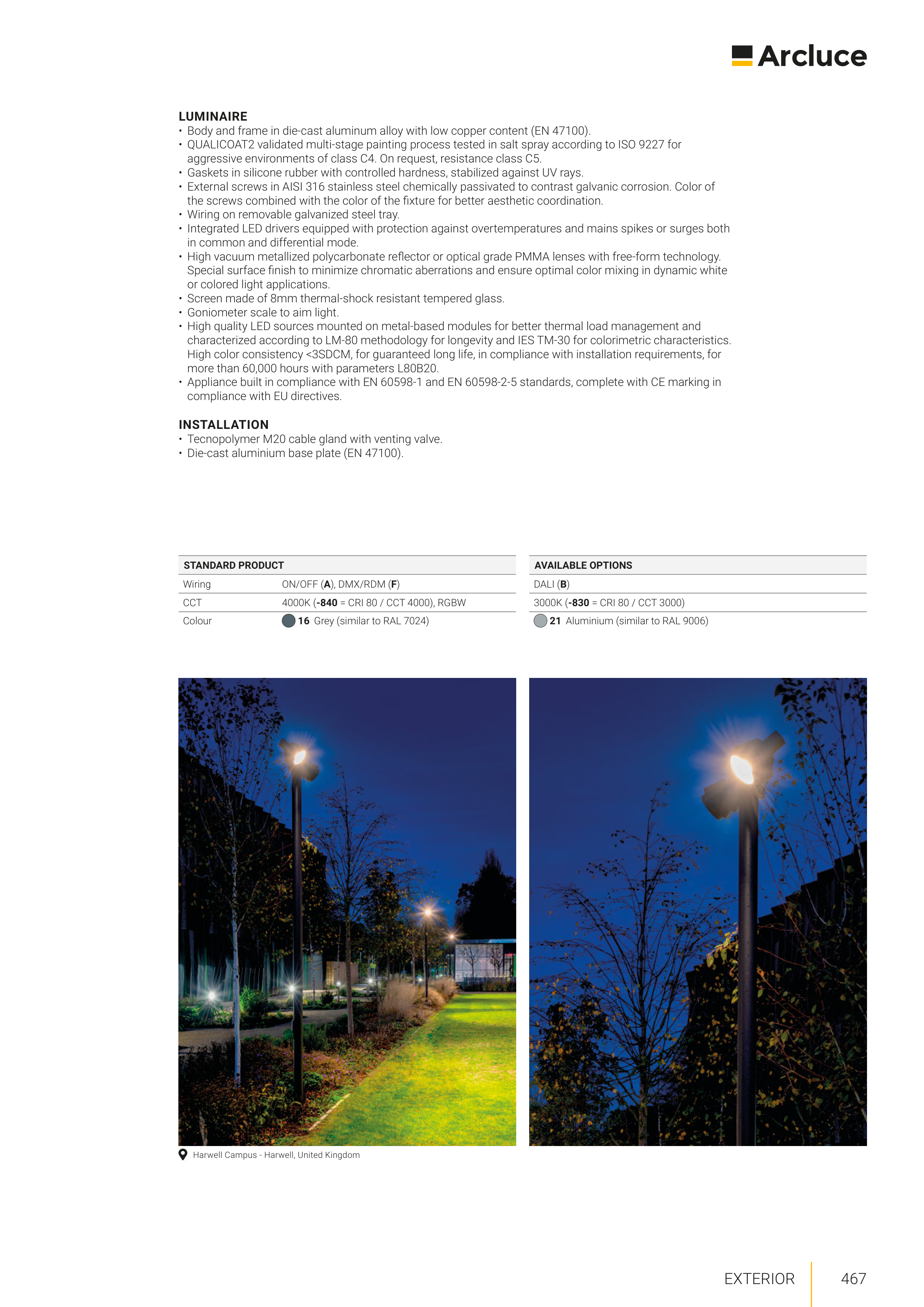

Harwell Campus - Harwell, United Kingdom
ON/OFF (A), DMX/RDM (F)
4000K (-840 = CRI 80 / CCT 4000), RGBW
16
DALI (B)
3000K (-830 = CRI 80 / CCT 3000)
21
467
EXTERIOR
LUMINAIRE
• Body and frame in die-cast aluminum alloy with low copper content (EN 47100).
• QUALICOAT2 validated multi-stage painting process tested in salt spray according to ISO 9227 for
aggressive environments of class C4. On request, resistance class C5.
• Gaskets in silicone rubber with controlled hardness, stabilized against UV rays.
• External screws in AISI 316 stainless steel chemically passivated to contrast galvanic corrosion. Color of
the screws combined with the color of the fixture for better aesthetic coordination.
• Wiring on removable galvanized steel tray.
• Integrated LED drivers equipped with protection against overtemperatures and mains spikes or surges both
in common and differential mode.
• High vacuum metallized polycarbonate reflector or optical grade PMMA lenses with free-form technology.
Special surface finish to minimize chromatic aberrations and ensure optimal color mixing in dynamic white
or colored light applications.
• Screen made of 8mm thermal-shock resistant tempered glass.
• Goniometer scale to aim light.
• High quality LED sources mounted on metal-based modules for better thermal load management and
characterized according to LM-80 methodology for longevity and IES TM-30 for colorimetric characteristics.
High color consistency <3SDCM, for guaranteed long life, in compliance with installation requirements, for
more than 60,000 hours with parameters L80B20.
• Appliance built in compliance with EN 60598-1 and EN 60598-2-5 standards, complete with CE marking in
compliance with EU directives.
INSTALLATION
• Tecnopolymer M20 cable gland with venting valve.
• Die-cast aluminium base plate (EN 47100).
STANDARD PRODUCT
Wiring
CCT
Colour
Grey (similar to RAL 7024)
AVAILABLE OPTIONS
Aluminium (similar to RAL 9006)
