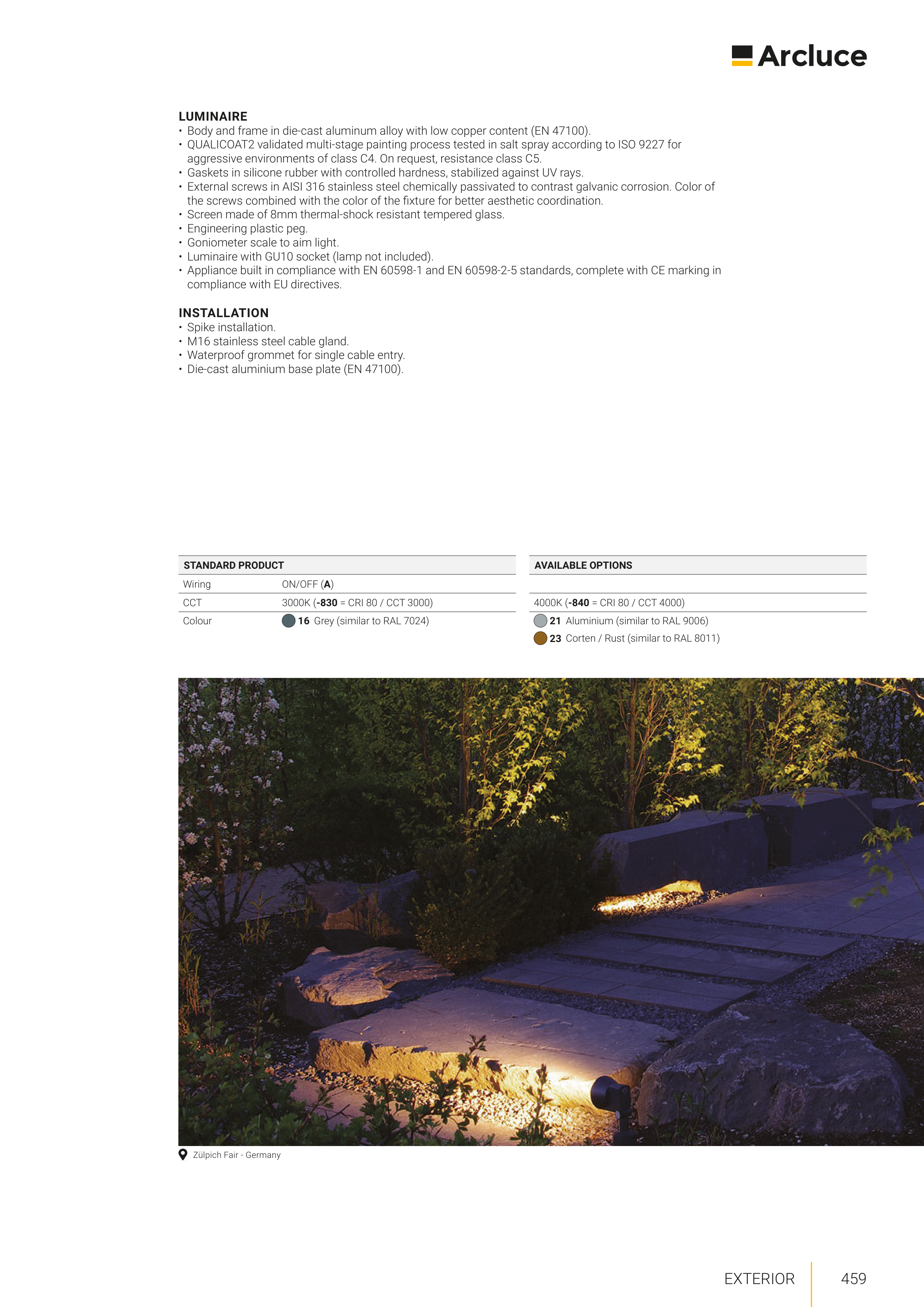

Zülpich Fair - Germany
ON/OFF (A)
3000K (-830 = CRI 80 / CCT 3000)
16
4000K (-840 = CRI 80 / CCT 4000)
21
23
459
EXTERIOR
LUMINAIRE
• Body and frame in die-cast aluminum alloy with low copper content (EN 47100).
• QUALICOAT2 validated multi-stage painting process tested in salt spray according to ISO 9227 for
aggressive environments of class C4. On request, resistance class C5.
• Gaskets in silicone rubber with controlled hardness, stabilized against UV rays.
• External screws in AISI 316 stainless steel chemically passivated to contrast galvanic corrosion. Color of
the screws combined with the color of the fixture for better aesthetic coordination.
• Screen made of 8mm thermal-shock resistant tempered glass.
• Engineering plastic peg.
• Goniometer scale to aim light.
• Luminaire with GU10 socket (lamp not included).
• Appliance built in compliance with EN 60598-1 and EN 60598-2-5 standards, complete with CE marking in
compliance with EU directives.
INSTALLATION
• Spike installation.
• M16 stainless steel cable gland.
• Waterproof grommet for single cable entry.
• Die-cast aluminium base plate (EN 47100).
STANDARD PRODUCT
Wiring
CCT
Colour
Grey (similar to RAL 7024)
AVAILABLE OPTIONS
Aluminium (similar to RAL 9006)
Corten / Rust (similar to RAL 8011)
