Code
Kg
1099324X
0,60
Code
Kg
1099409X
0,03
Code
Kg
1099259X
0,05
Code
Kg
1099407X
0,03

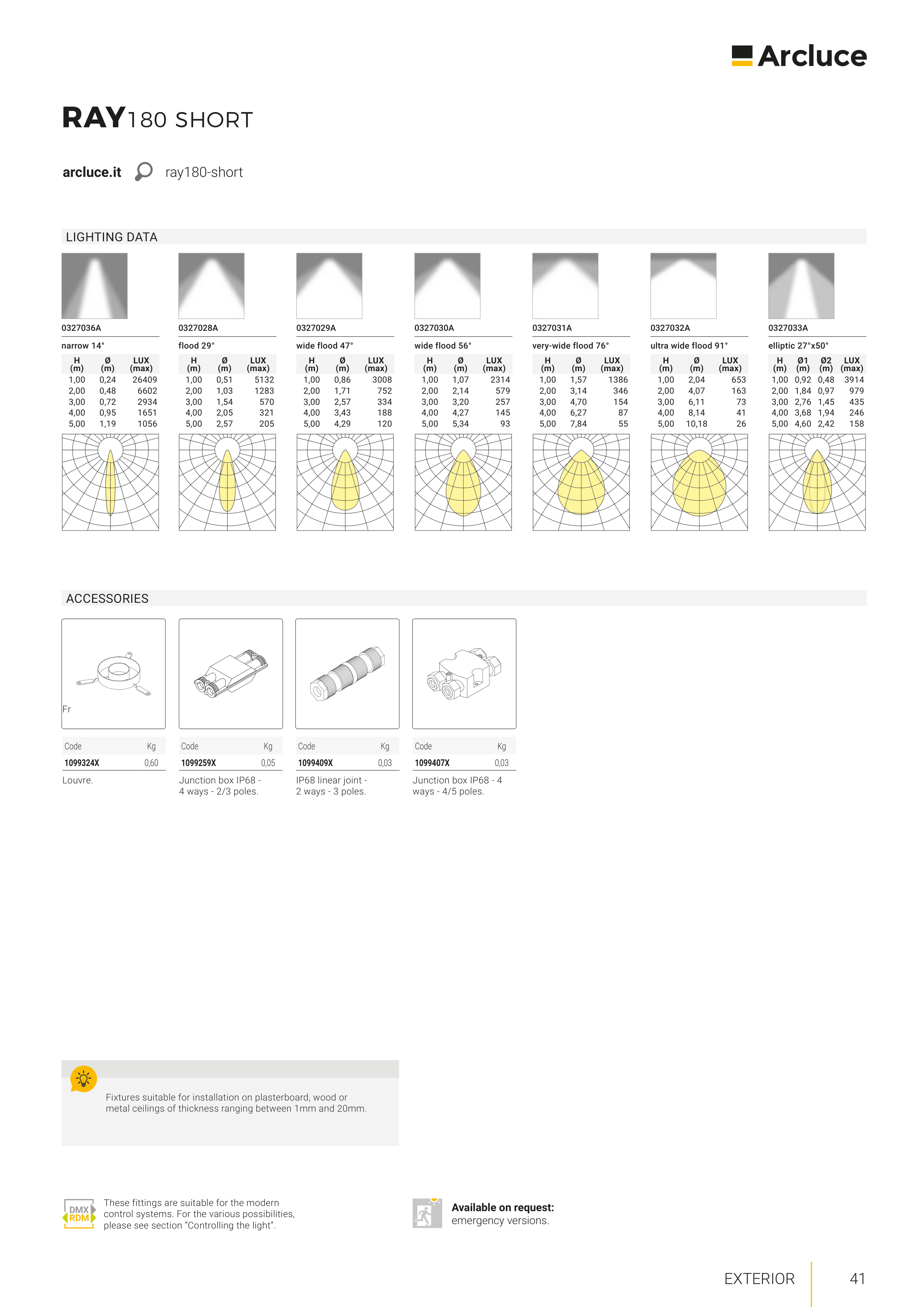

RAY180 SHORT
ray180-short
arcluce.it
0327036A
narrow 14°
H
(m)
Ø
(m)
LUX
(max)
1,00
0,24
26409
2,00
0,48
6602
3,00
0,72
2934
4,00
0,95
1651
5,00
1,19
1056
0327028A
flood 29°
H
(m)
Ø
(m)
LUX
(max)
1,00
0,51
5132
2,00
1,03
1283
3,00
1,54
570
4,00
2,05
321
5,00
2,57
205
0327029A
wide flood 47°
H
(m)
Ø
(m)
LUX
(max)
1,00
0,86
3008
2,00
1,71
752
3,00
2,57
334
4,00
3,43
188
5,00
4,29
120
0327030A
wide flood 56°
H
(m)
Ø
(m)
LUX
(max)
1,00
1,07
2314
2,00
2,14
579
3,00
3,20
257
4,00
4,27
145
5,00
5,34
93
0327031A
very-wide flood 76°
H
(m)
Ø
(m)
LUX
(max)
1,00
1,57
1386
2,00
3,14
346
3,00
4,70
154
4,00
6,27
87
5,00
7,84
55
0327032A
ultra wide flood 91°
H
(m)
Ø
(m)
LUX
(max)
1,00
2,04
653
2,00
4,07
163
3,00
6,11
73
4,00
8,14
41
5,00
10,18
26
0327033A
elliptic 27°x50°
H
(m)
Ø1
(m)
Ø2
(m)
LUX
(max)
1,00 0,92 0,48
3914
2,00 1,84 0,97
979
3,00 2,76 1,45
435
4,00 3,68 1,94
246
5,00 4,60 2,42
158
41
EXTERIOR
Fixtures suitable for installation on plasterboard, wood or
metal ceilings of thickness ranging between 1mm and 20mm.
These fittings are suitable for the modern
control systems. For the various possibilities,
please see section “Controlling the light”.
Available on request:
emergency versions.
ACCESSORIES
LIGHTING DATA
Fr
Louvre.
Junction box IP68 -
4 ways - 2/3 poles.
IP68 linear joint -
2 ways - 3 poles.
Junction box IP68 - 4
ways - 4/5 poles.
