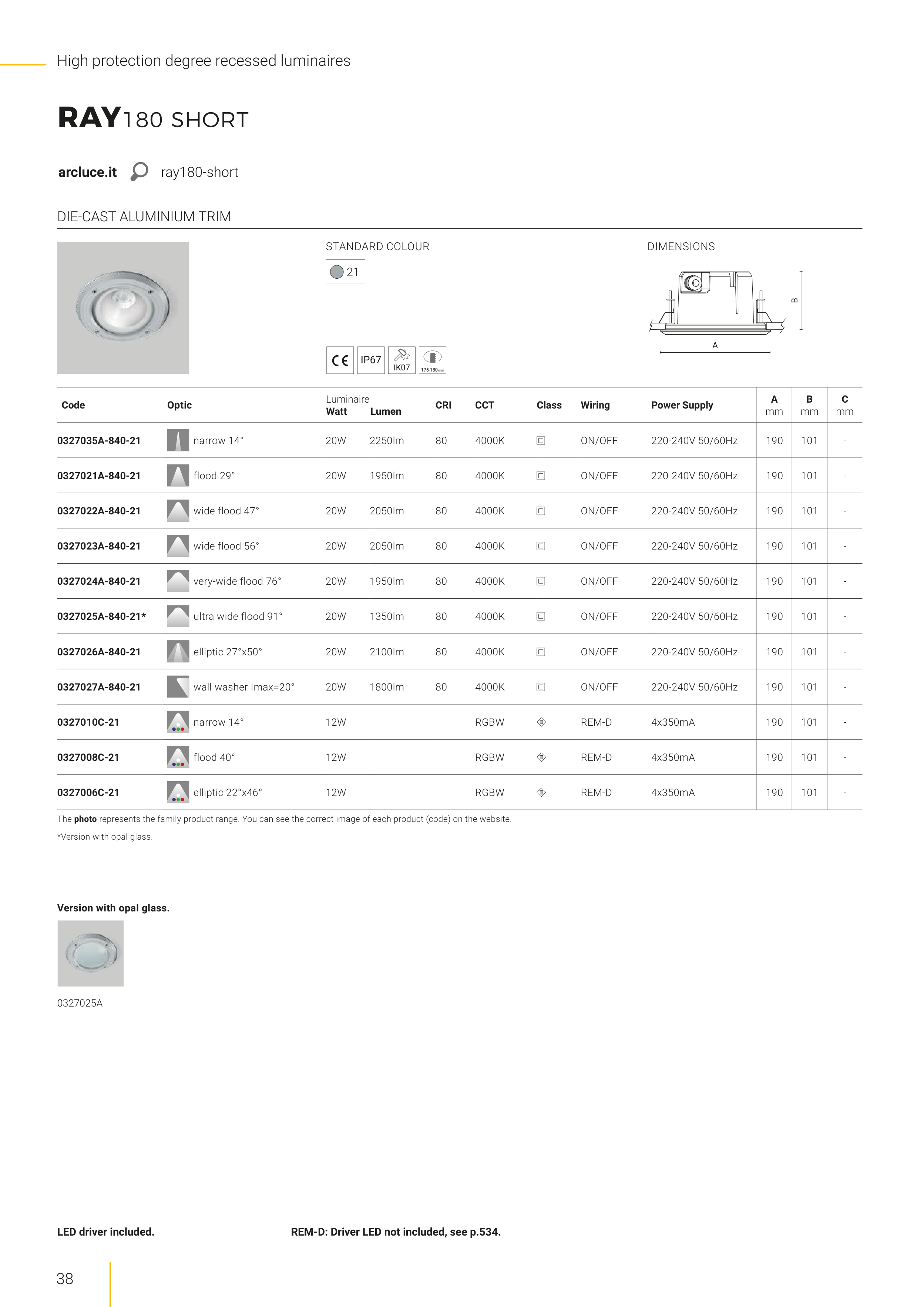

RAY180 SHORT
ray180-short
arcluce.it
A
B
DIMENSIONS
STANDARD COLOUR
21
Code
Optic
Luminaire
Watt Lumen
CRI
CCT
Class
Wiring
Power Supply
A
mm
B
mm
C
mm
0327035A-840-21
narrow 14°
20W
2250lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
190
101
-
0327021A-840-21
flood 29°
20W
1950lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
190
101
-
0327022A-840-21
wide flood 47°
20W
2050lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
190
101
-
0327023A-840-21
wide flood 56°
20W
2050lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
190
101
-
0327024A-840-21
very-wide flood 76°
20W
1950lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
190
101
-
0327025A-840-21*
ultra wide flood 91°
20W
1350lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
190
101
-
0327026A-840-21
elliptic 27°x50°
20W
2100lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
190
101
-
0327027A-840-21
wall washer Imax=20°
20W
1800lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
190
101
-
0327010C-21
narrow 14°
12W
RGBW
3
REM-D
4x350mA
190
101
-
0327008C-21
flood 40°
12W
RGBW
3
REM-D
4x350mA
190
101
-
0327006C-21
elliptic 22°x46°
12W
RGBW
3
REM-D
4x350mA
190
101
-
0327025A
38
DIE-CAST ALUMINIUM TRIM
High protection degree recessed luminaires
LED driver included.
The photo represents the family product range. You can see the correct image of each product (code) on the website.
*Version with opal glass.
REM-D: Driver LED not included, see p.534.
Version with opal glass.
