2.5
10
30
15
-16 -12 -8 -4 0 -4 -8 -12 16
-16 -12 -8 -4 0 -4 -8 -12 16
2.5
51030
-16 -12 -8 -4 0 -4 -8 -12 16
-16 -12 -8 -4 0 -4 -8 -12 16

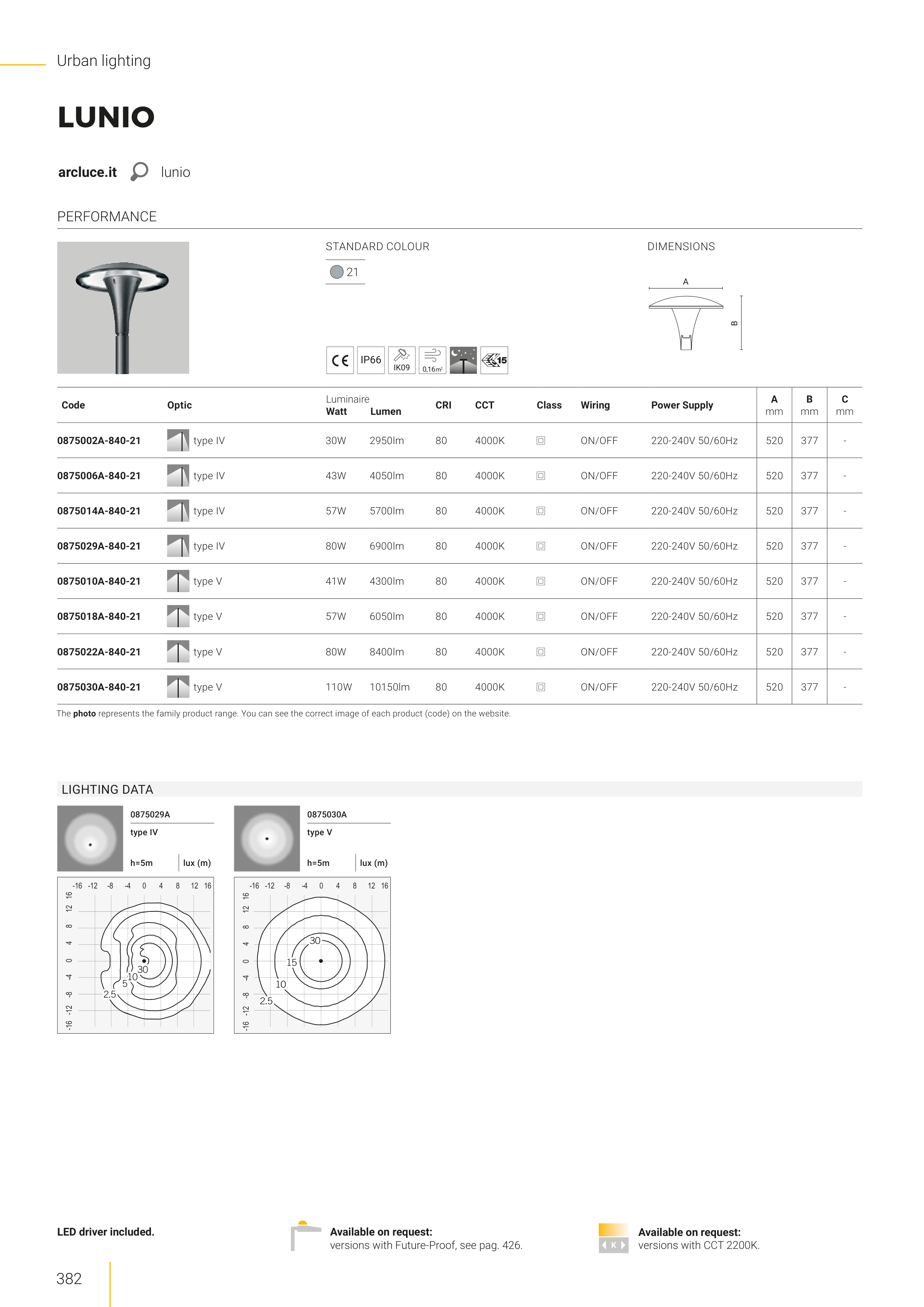

LUNIO
lunio
arcluce.it
A
B
DIMENSIONS
STANDARD COLOUR
21
Code
Optic
Luminaire
Watt Lumen
CRI
CCT
Class
Wiring
Power Supply
A
mm
B
mm
C
mm
0875002A-840-21
type IV
30W
2950lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
520
377
-
0875006A-840-21
type IV
43W
4050lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
520
377
-
0875014A-840-21
type IV
57W
5700lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
520
377
-
0875029A-840-21
type IV
80W
6900lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
520
377
-
0875010A-840-21
type V
41W
4300lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
520
377
-
0875018A-840-21
type V
57W
6050lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
520
377
-
0875022A-840-21
type V
80W
8400lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
520
377
-
0875030A-840-21
type V
110W
10150lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
520
377
-
0875029A
type IV
h=5m
lux (m)
0875030A
type V
h=5m
lux (m)
382
PERFORMANCE
Urban lighting
The photo represents the family product range. You can see the correct image of each product (code) on the website.
Available on request:
versions with CCT 2200K.
LED driver included.
Available on request:
versions with Future-Proof, see pag. 426.
LIGHTING DATA
