2
510
15
30
2
510
15
30
-16 -12 -8 -4 0 -4 -8 -12 16
-16 -12 -8 -4 0 -4 -8 -12 16
-16 -12 -8 -4 0 -4 -8 - 12 16
-16 -12 -8 -4 0 -4 -8 -12 16
2
5
10
15
30
2
5
10
15
30
A
C
B
DIMENSIONS
STANDARD COLOUR
21
Code
Optic
Luminaire
Watt Lumen
CRI
CCT
Class
Wiring
Power Supply
A
mm
B
mm
C
mm
0886002A-840-21
type II
30W
3400lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
360
305
-
0886003A-840-21
type III
48W
5300lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
360
305
-
0886005A-840-21
type III
48W
5600lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
360
305
-
0886006A-840-21
type IV
30W
3700lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
360
305
-
0886007A-840-21
type IV
48W
5700lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
360
305
-
0886008A-840-21
type IV-L
30W
3600lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
360
305
-
0886004A-840-21
type IV-L
30W
3600lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
360
305
-
0886009A-840-21
type IV-L
48W
5600lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
360
305
-
0886000A-840-21
type VS
30W
3500lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
360
305
-
0886001A-840-21
type VS
48W
5900lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
360
305
-
0886003A
type II
h=5m
lux (m)
0886005A
type III
h=5m
lux (m)
376

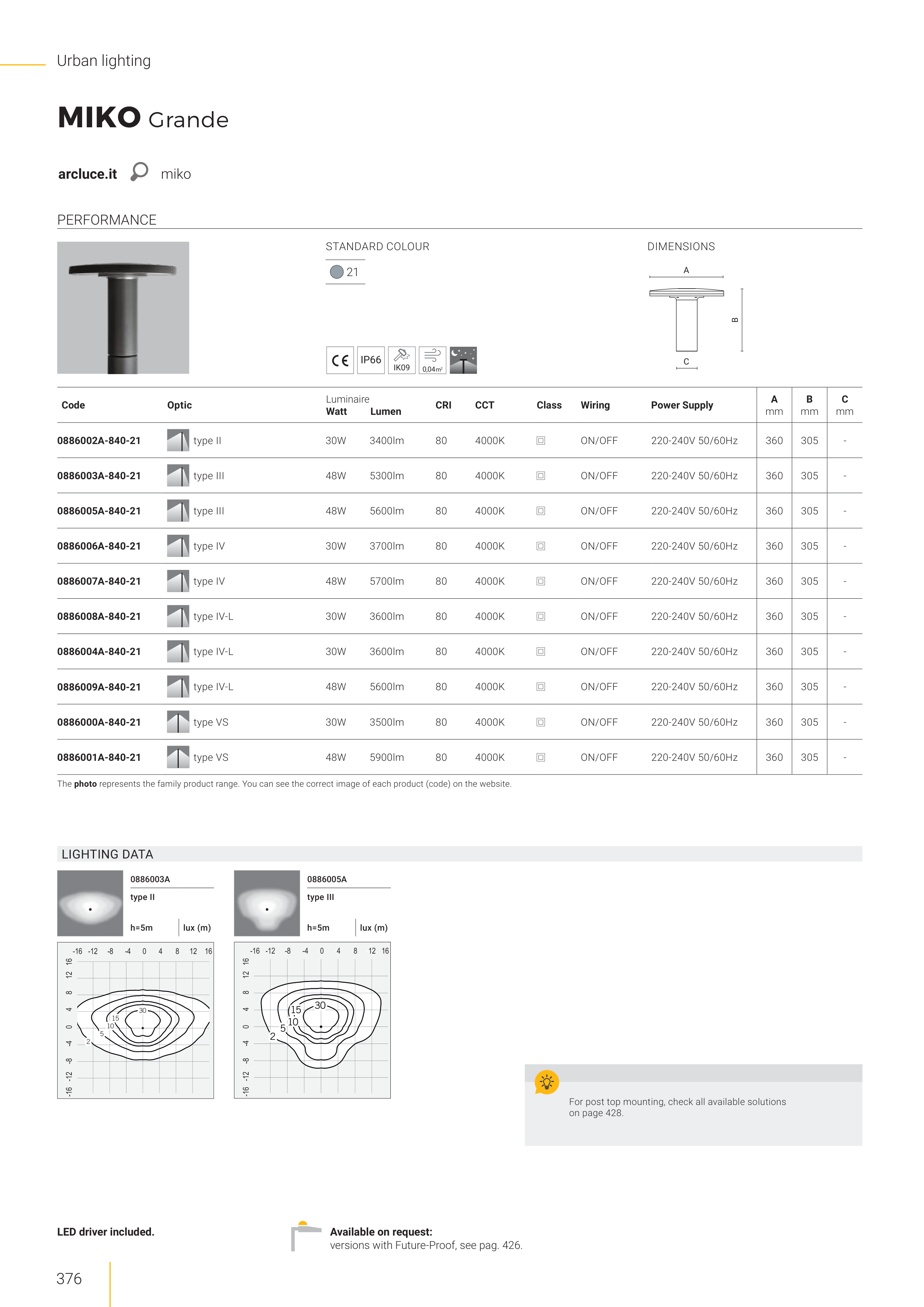

Urban lighting
MIKO Grande
arcluce.it
miko
PERFORMANCE
The photo represents the family product range. You can see the correct image of each product (code) on the website.
LED driver included.
For post top mounting, check all available solutions
on page 428.
Available on request:
versions with Future-Proof, see pag. 426.
LIGHTING DATA
