Photorealistic rendering.
ON/OFF (A)
21
30
11
33
EXTERIOR

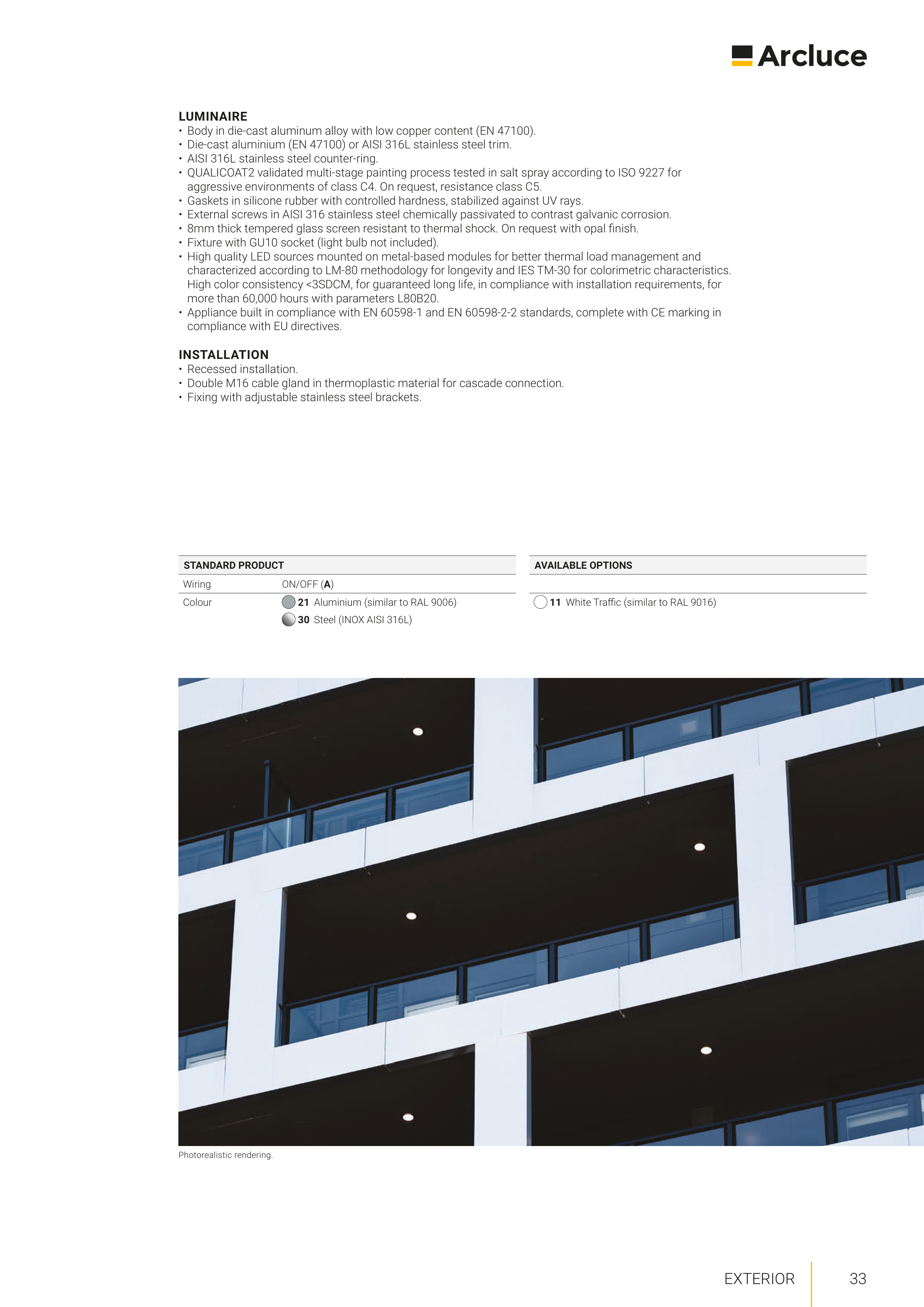

LUMINAIRE
• Body in die-cast aluminum alloy with low copper content (EN 47100).
• Die-cast aluminium (EN 47100) or AISI 316L stainless steel trim.
• AISI 316L stainless steel counter-ring.
• QUALICOAT2 validated multi-stage painting process tested in salt spray according to ISO 9227 for
aggressive environments of class C4. On request, resistance class C5.
• Gaskets in silicone rubber with controlled hardness, stabilized against UV rays.
• External screws in AISI 316 stainless steel chemically passivated to contrast galvanic corrosion.
• 8mm thick tempered glass screen resistant to thermal shock. On request with opal finish.
• Fixture with GU10 socket (light bulb not included).
• High quality LED sources mounted on metal-based modules for better thermal load management and
characterized according to LM-80 methodology for longevity and IES TM-30 for colorimetric characteristics.
High color consistency <3SDCM, for guaranteed long life, in compliance with installation requirements, for
more than 60,000 hours with parameters L80B20.
• Appliance built in compliance with EN 60598-1 and EN 60598-2-2 standards, complete with CE marking in
compliance with EU directives.
INSTALLATION
• Recessed installation.
• Double M16 cable gland in thermoplastic material for cascade connection.
• Fixing with adjustable stainless steel brackets.
STANDARD PRODUCT
Wiring
Colour
Aluminium (similar to RAL 9006)
Steel (INOX AISI 316L)
AVAILABLE OPTIONS
White Traffic (similar to RAL 9016)
