2
5
10
2
5
10
-12 -6 -3 0 -3 - 6 - 12
-12 -6 -3 0 -3 - 6 - 12
0868007A
type VS
h=4,5m
lux (m)

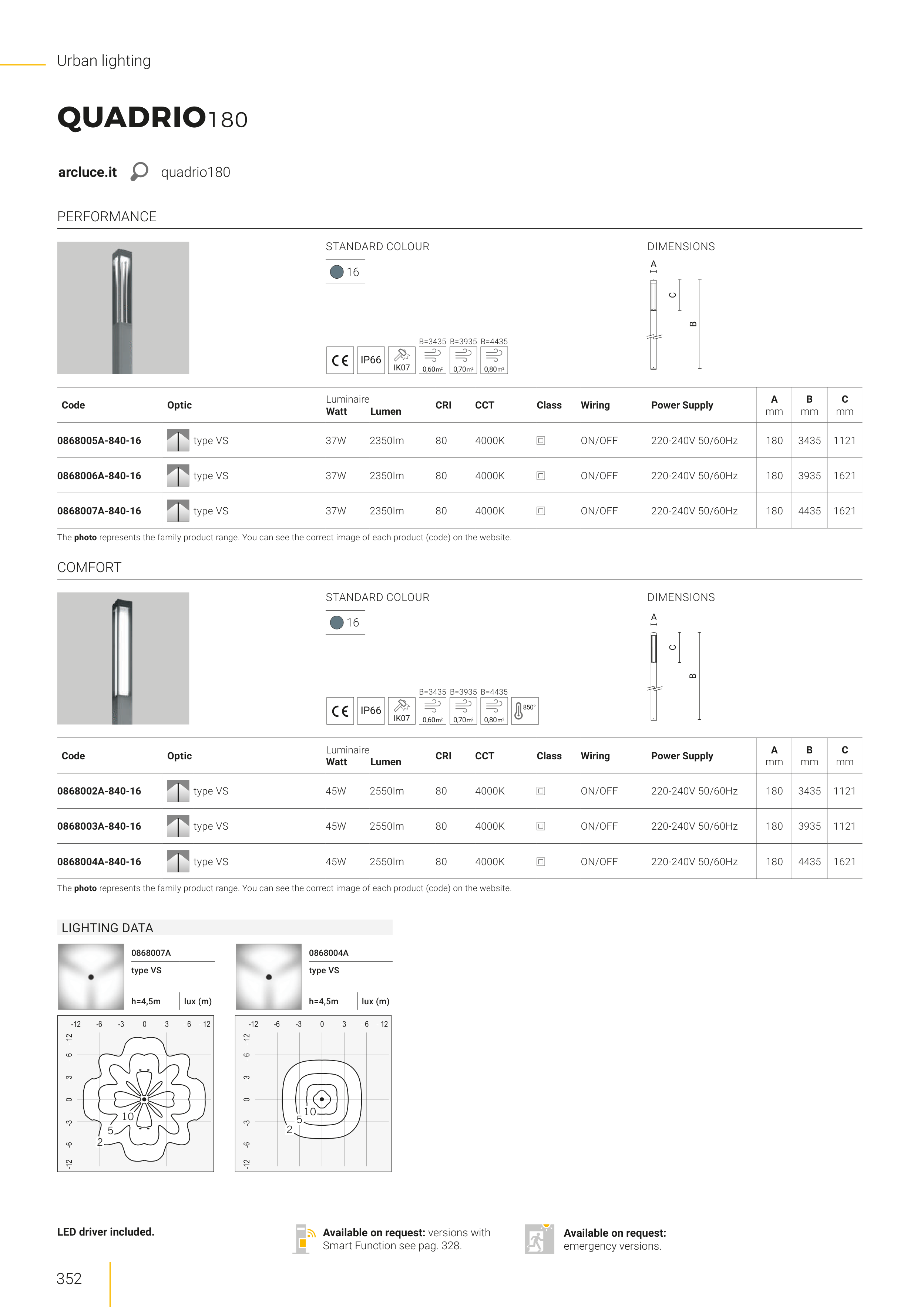

QUADRIO180
quadrio180
arcluce.it
A
C
B
A
C
B
DIMENSIONS
DIMENSIONS
STANDARD COLOUR
STANDARD COLOUR
16
16
B=3435 B=3935 B=4435
B=3435 B=3935 B=4435
Code
Optic
Luminaire
Watt Lumen
CRI
CCT
Class
Wiring
Power Supply
A
mm
B
mm
C
mm
Code
Optic
Luminaire
Watt Lumen
CRI
CCT
Class
Wiring
Power Supply
A
mm
B
mm
C
mm
0868005A-840-16
type VS
37W
2350lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
180
3435
1121
0868006A-840-16
type VS
37W
2350lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
180
3935
1621
0868007A-840-16
type VS
37W
2350lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
180
4435
1621
0868002A-840-16
type VS
45W
2550lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
180
3435
1121
0868003A-840-16
type VS
45W
2550lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
180
3935
1121
0868004A-840-16
type VS
45W
2550lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
180
4435
1621
0868004A
type VS
h=4,5m
lux (m)
2
510
2
510
-12 -6 -3 0 -3 - 6 - 12
-12 -6 -3 0 -3 - 6 - 12
352
PERFORMANCE
COMFORT
Urban lighting
The photo represents the family product range. You can see the correct image of each product (code) on the website.
The photo represents the family product range. You can see the correct image of each product (code) on the website.
Available on request:
emergency versions.
LED driver included.
Available on request: versions with
Smart Function see pag. 328.
LIGHTING DATA
