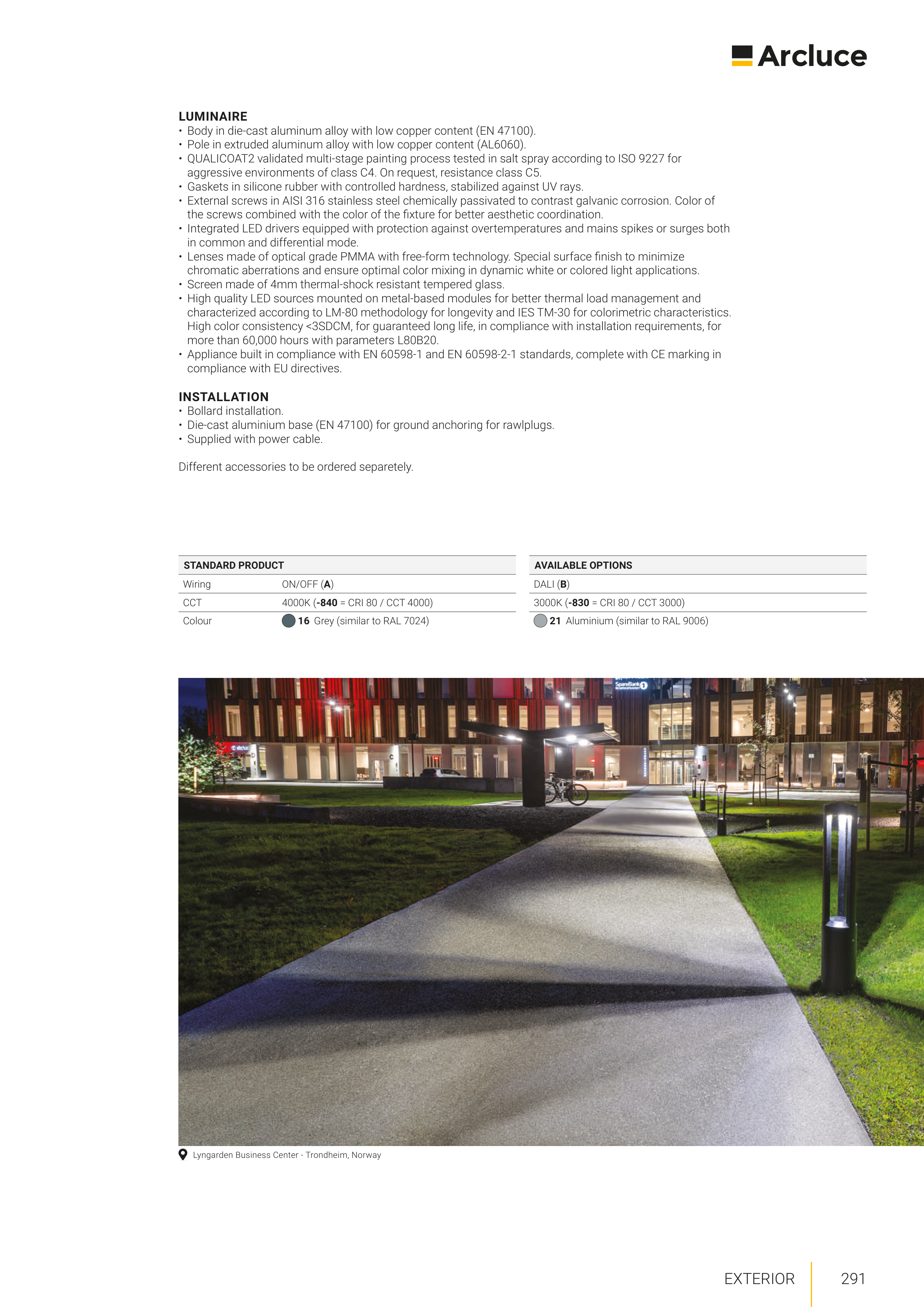

Lyngarden Business Center - Trondheim, Norway
ON/OFF (A)
4000K (-840 = CRI 80 / CCT 4000)
16
DALI (B)
3000K (-830 = CRI 80 / CCT 3000)
21
291
EXTERIOR
LUMINAIRE
• Body in die-cast aluminum alloy with low copper content (EN 47100).
• Pole in extruded aluminum alloy with low copper content (AL6060).
• QUALICOAT2 validated multi-stage painting process tested in salt spray according to ISO 9227 for
aggressive environments of class C4. On request, resistance class C5.
• Gaskets in silicone rubber with controlled hardness, stabilized against UV rays.
• External screws in AISI 316 stainless steel chemically passivated to contrast galvanic corrosion. Color of
the screws combined with the color of the fixture for better aesthetic coordination.
• Integrated LED drivers equipped with protection against overtemperatures and mains spikes or surges both
in common and differential mode.
• Lenses made of optical grade PMMA with free-form technology. Special surface finish to minimize
chromatic aberrations and ensure optimal color mixing in dynamic white or colored light applications.
• Screen made of 4mm thermal-shock resistant tempered glass.
• High quality LED sources mounted on metal-based modules for better thermal load management and
characterized according to LM-80 methodology for longevity and IES TM-30 for colorimetric characteristics.
High color consistency <3SDCM, for guaranteed long life, in compliance with installation requirements, for
more than 60,000 hours with parameters L80B20.
• Appliance built in compliance with EN 60598-1 and EN 60598-2-1 standards, complete with CE marking in
compliance with EU directives.
INSTALLATION
• Bollard installation.
• Die-cast aluminium base (EN 47100) for ground anchoring for rawlplugs.
• Supplied with power cable.
Different accessories to be ordered separetely.
STANDARD PRODUCT
Wiring
CCT
Colour
Grey (similar to RAL 7024)
AVAILABLE OPTIONS
Aluminium (similar to RAL 9006)
