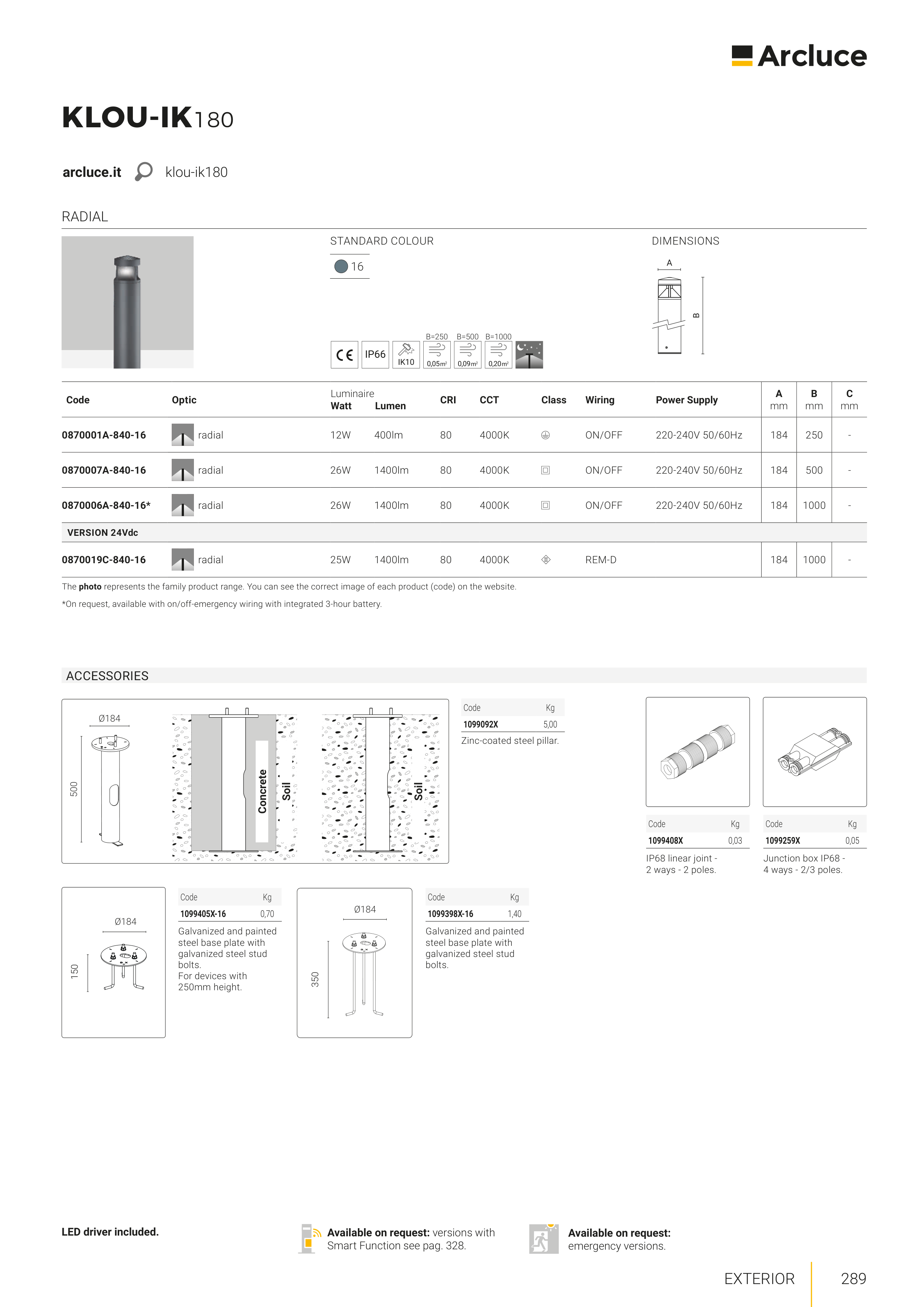

KLOU-IK180
klou-ik180
arcluce.it
A
B
DIMENSIONS
STANDARD COLOUR
16
B=500
B=250
B=1000
Code
Optic
Luminaire
Watt Lumen
CRI
CCT
Class
Wiring
Power Supply
A
mm
B
mm
C
mm
0870001A-840-16
radial
12W
400lm
80
4000K
1
ON/OFF
220-240V 50/60Hz
184
250
-
0870007A-840-16
radial
26W
1400lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
184
500
-
0870006A-840-16*
radial
26W
1400lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
184
1000
-
Code
Kg
1099092X
5,00
500
Ø184
Code
Kg
1099405X-16
0,70
Code
Kg
1099398X-16
1,40
150
350
120 ~
120 ~
n 184
n 30
30 ~
M 10
45
329
350
Code
Kg
1099408X
0,03
Ø184
Ø184
Code
Kg
1099259X
0,05
VERSION 24Vdc
0870019C-840-16
radial
25W
1400lm
80
4000K
3
REM-D
184
1000
-
289
EXTERIOR
RADIAL
LED driver included.
Available on request:
emergency versions.
Available on request: versions with
Smart Function see pag. 328.
Soil
Concrete
Soil
Galvanized and painted
steel base plate with
galvanized steel stud
bolts.
For devices with
250mm height.
Galvanized and painted
steel base plate with
galvanized steel stud
bolts.
IP68 linear joint -
2 ways - 2 poles.
Zinc-coated steel pillar.
Junction box IP68 -
4 ways - 2/3 poles.
The photo represents the family product range. You can see the correct image of each product (code) on the website.
ACCESSORIES
*On request, available with on/off-emergency wiring with integrated 3-hour battery.
