QUAD200
quad200
arcluce.it
STANDARD COLOUR
30
4mm
C
B
A
DIMENSIONS
Code
Optic
Luminaire
Watt Lumen
CRI
CCT
Class
Wiring
Power Supply
A
mm
B
mm
C
mm
0765016A-840-30
spot 9°
37W
4050lm
80
4000K
1
ON/OFF
220-240V 50/60Hz
230
167
340
0765014A-840-30
medium 25°
37W
3800lm
80
4000K
1
ON/OFF
220-240V 50/60Hz
230
167
340
0765020A-840-30
wide flood 47°
37W
3500lm
80
4000K
1
ON/OFF
220-240V 50/60Hz
230
167
340
0765009A-840-30
elliptic 9°x52°
37W
3700lm
80
4000K
1
ON/OFF
220-240V 50/60Hz
230
167
340
0765049A-840-30
wall washer Imax=19°
37W
3400lm
80
4000K
1
ON/OFF
220-240V 50/60Hz
230
167
340
0765039F-30
spot 9°
40W
RGBW
1
DMX
220-240V 50/60Hz
230
167
340
0765058F-30
medium 25°
40W
RGBW
1
DMX
220-240V 50/60Hz
230
167
340
0765003F-30
wide flood 46°
40W
RGBW
1
DMX
220-240V 50/60Hz
230
167
340
0765040F-30
elliptic 9°x52°
40W
RGBW
1
DMX
220-240V 50/60Hz
230
167
340
0765057F-30
wall washer Imax=19°
40W
RGBW
1
DMX
220-240V 50/60Hz
230
167
340
0765014A
medium 25°
H
(m)
Ø
(m)
LUX
(max)
1,0
0,45
17154
2,0
0,89
4289
3,0
1,34
1906
4,0
1,79
1072
5,0
2,24
686
0765009A
elliptic 9°x52°
H
(m)
Ø1
(m)
Ø2
(m)
LUX
(max)
1,0
0,98 0,19 16147
2,0
1,97 0,37
4037
3,0
2,95 0,56
1794
4,0
3,94 0,74
1009
5,0
4,92 0,93
646
0765049A
wall washer Imax=19°
0765016A
spot 9°
H
(m)
Ø
(m)
LUX
(max)
1,0
0,16
86580
2,0
0,33
21645
3,0
0,49
9620
4,0
0,66
5411
5,0
0,82
3463
0765020A
wide flood 47°
H
(m)
Ø
(m)
LUX
(max)
1,0
0,87
5193
2,0
1,73
1298
3,0
2,60
577
4,0
3,46
325
5,0
4,33
208
236

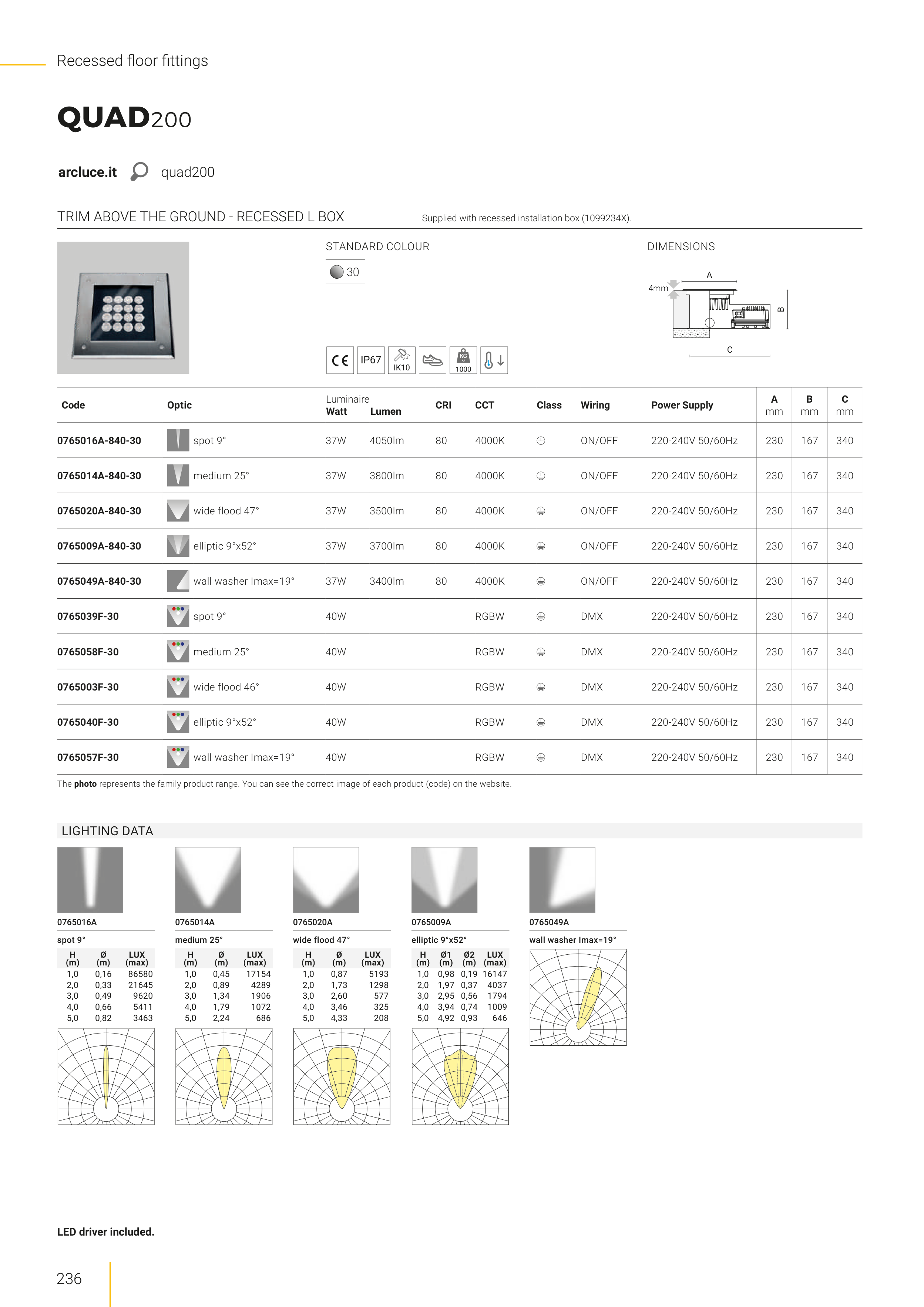

Recessed floor fittings
The photo represents the family product range. You can see the correct image of each product (code) on the website.
TRIM ABOVE THE GROUND - RECESSED L BOX
LED driver included.
Supplied with recessed installation box (1099234X).
LIGHTING DATA
