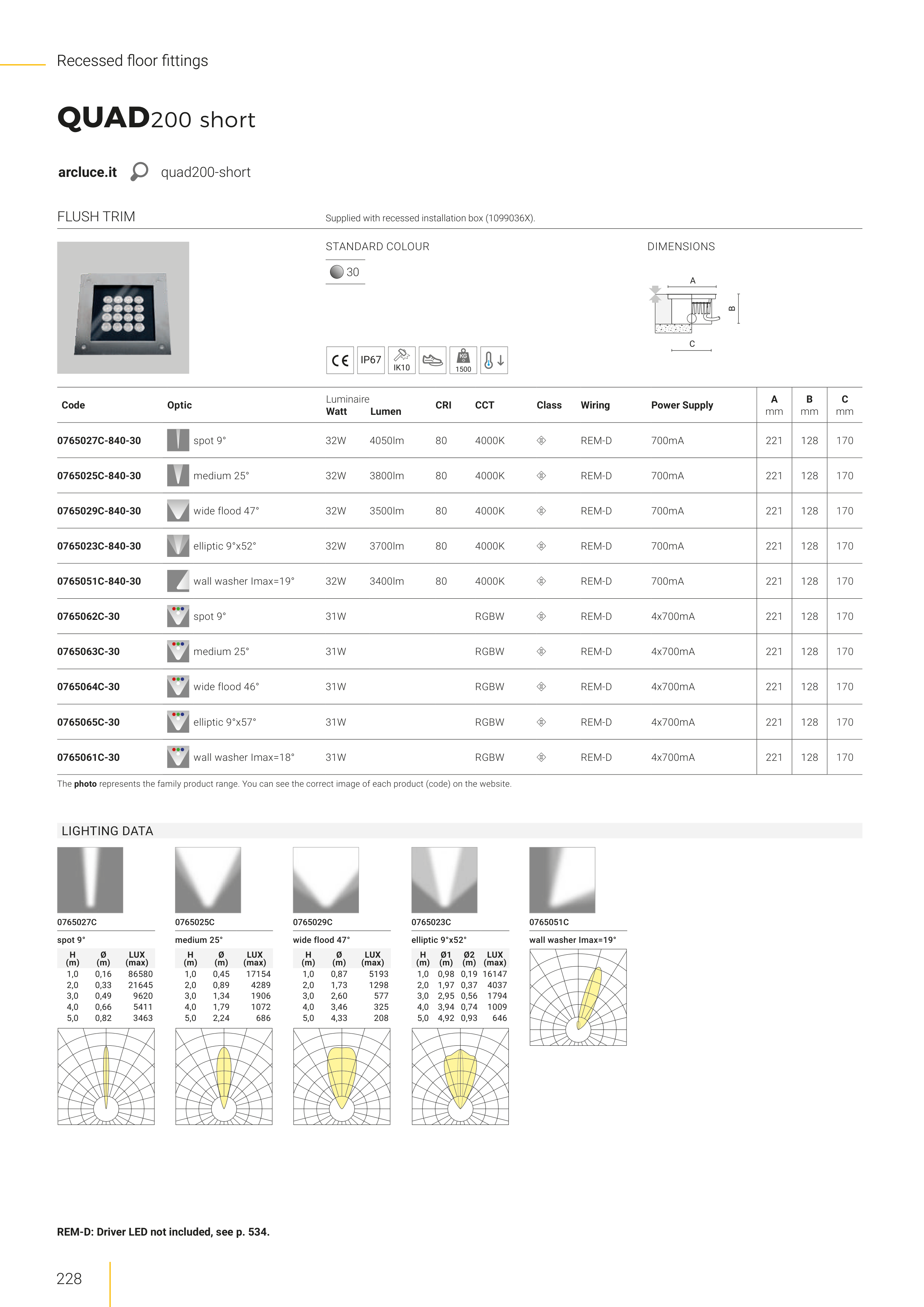

QUAD200 short
quad200-short
arcluce.it
B
C
A
DIMENSIONS
STANDARD COLOUR
30
Code
Optic
Luminaire
Watt Lumen
CRI
CCT
Class
Wiring
Power Supply
A
mm
B
mm
C
mm
0765027C-840-30
spot 9°
32W
4050lm
80
4000K
3
REM-D
700mA
221
128
170
0765025C-840-30
medium 25°
32W
3800lm
80
4000K
3
REM-D
700mA
221
128
170
0765029C-840-30
wide flood 47°
32W
3500lm
80
4000K
3
REM-D
700mA
221
128
170
0765023C-840-30
elliptic 9°x52°
32W
3700lm
80
4000K
3
REM-D
700mA
221
128
170
0765051C-840-30
wall washer Imax=19°
32W
3400lm
80
4000K
3
REM-D
700mA
221
128
170
0765062C-30
spot 9°
31W
RGBW
3
REM-D
4x700mA
221
128
170
0765063C-30
medium 25°
31W
RGBW
3
REM-D
4x700mA
221
128
170
0765064C-30
wide flood 46°
31W
RGBW
3
REM-D
4x700mA
221
128
170
0765065C-30
elliptic 9°x57°
31W
RGBW
3
REM-D
4x700mA
221
128
170
0765061C-30
wall washer Imax=18°
31W
RGBW
3
REM-D
4x700mA
221
128
170
0765025C
medium 25°
H
(m)
Ø
(m)
LUX
(max)
1,0
0,45
17154
2,0
0,89
4289
3,0
1,34
1906
4,0
1,79
1072
5,0
2,24
686
0765023C
elliptic 9°x52°
H
(m)
Ø1
(m)
Ø2
(m)
LUX
(max)
1,0
0,98 0,19 16147
2,0
1,97 0,37
4037
3,0
2,95 0,56
1794
4,0
3,94 0,74
1009
5,0
4,92 0,93
646
0765051C
wall washer Imax=19°
0765027C
spot 9°
H
(m)
Ø
(m)
LUX
(max)
1,0
0,16
86580
2,0
0,33
21645
3,0
0,49
9620
4,0
0,66
5411
5,0
0,82
3463
0765029C
wide flood 47°
H
(m)
Ø
(m)
LUX
(max)
1,0
0,87
5193
2,0
1,73
1298
3,0
2,60
577
4,0
3,46
325
5,0
4,33
208
228
FLUSH TRIM
Supplied with recessed installation box (1099036X).
Recessed floor fittings
The photo represents the family product range. You can see the correct image of each product (code) on the website.
REM-D: Driver LED not included, see p. 534.
LIGHTING DATA
Recessed floor fittings
