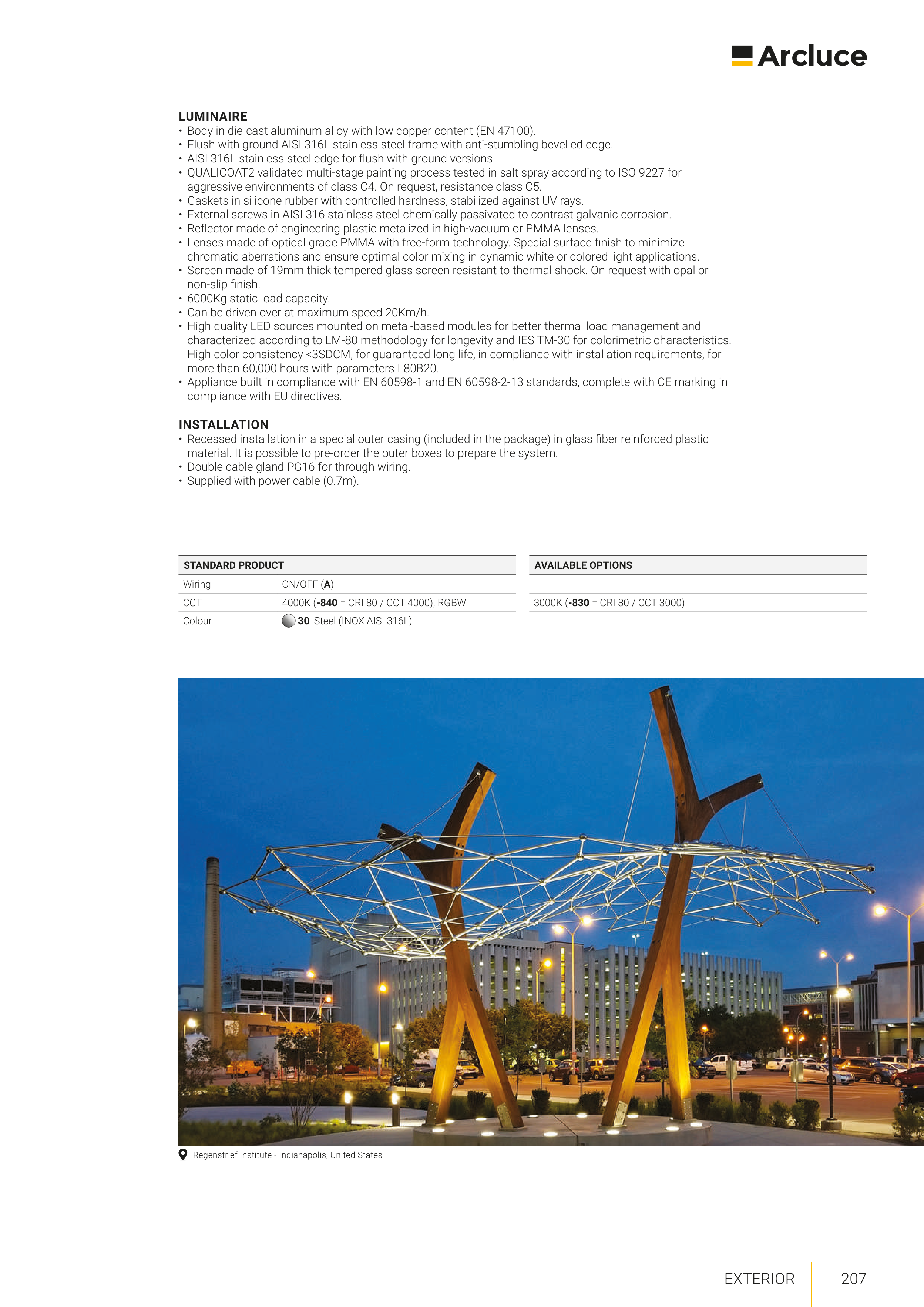

Regenstrief Institute - Indianapolis, United States
ON/OFF (A)
4000K (-840 = CRI 80 / CCT 4000), RGBW
30
3000K (-830 = CRI 80 / CCT 3000)
207
EXTERIOR
LUMINAIRE
• Body in die-cast aluminum alloy with low copper content (EN 47100).
• Flush with ground AISI 316L stainless steel frame with anti-stumbling bevelled edge.
• AISI 316L stainless steel edge for flush with ground versions.
• QUALICOAT2 validated multi-stage painting process tested in salt spray according to ISO 9227 for
aggressive environments of class C4. On request, resistance class C5.
• Gaskets in silicone rubber with controlled hardness, stabilized against UV rays.
• External screws in AISI 316 stainless steel chemically passivated to contrast galvanic corrosion.
• Reflector made of engineering plastic metalized in high-vacuum or PMMA lenses.
• Lenses made of optical grade PMMA with free-form technology. Special surface finish to minimize
chromatic aberrations and ensure optimal color mixing in dynamic white or colored light applications.
• Screen made of 19mm thick tempered glass screen resistant to thermal shock. On request with opal or
non-slip finish.
• 6000Kg static load capacity.
• Can be driven over at maximum speed 20Km/h.
• High quality LED sources mounted on metal-based modules for better thermal load management and
characterized according to LM-80 methodology for longevity and IES TM-30 for colorimetric characteristics.
High color consistency <3SDCM, for guaranteed long life, in compliance with installation requirements, for
more than 60,000 hours with parameters L80B20.
• Appliance built in compliance with EN 60598-1 and EN 60598-2-13 standards, complete with CE marking in
compliance with EU directives.
INSTALLATION
• Recessed installation in a special outer casing (included in the package) in glass fiber reinforced plastic
material. It is possible to pre-order the outer boxes to prepare the system.
• Double cable gland PG16 for through wiring.
• Supplied with power cable (0.7m).
STANDARD PRODUCT
Wiring
CCT
Colour
Steel (INOX AISI 316L)
AVAILABLE OPTIONS
