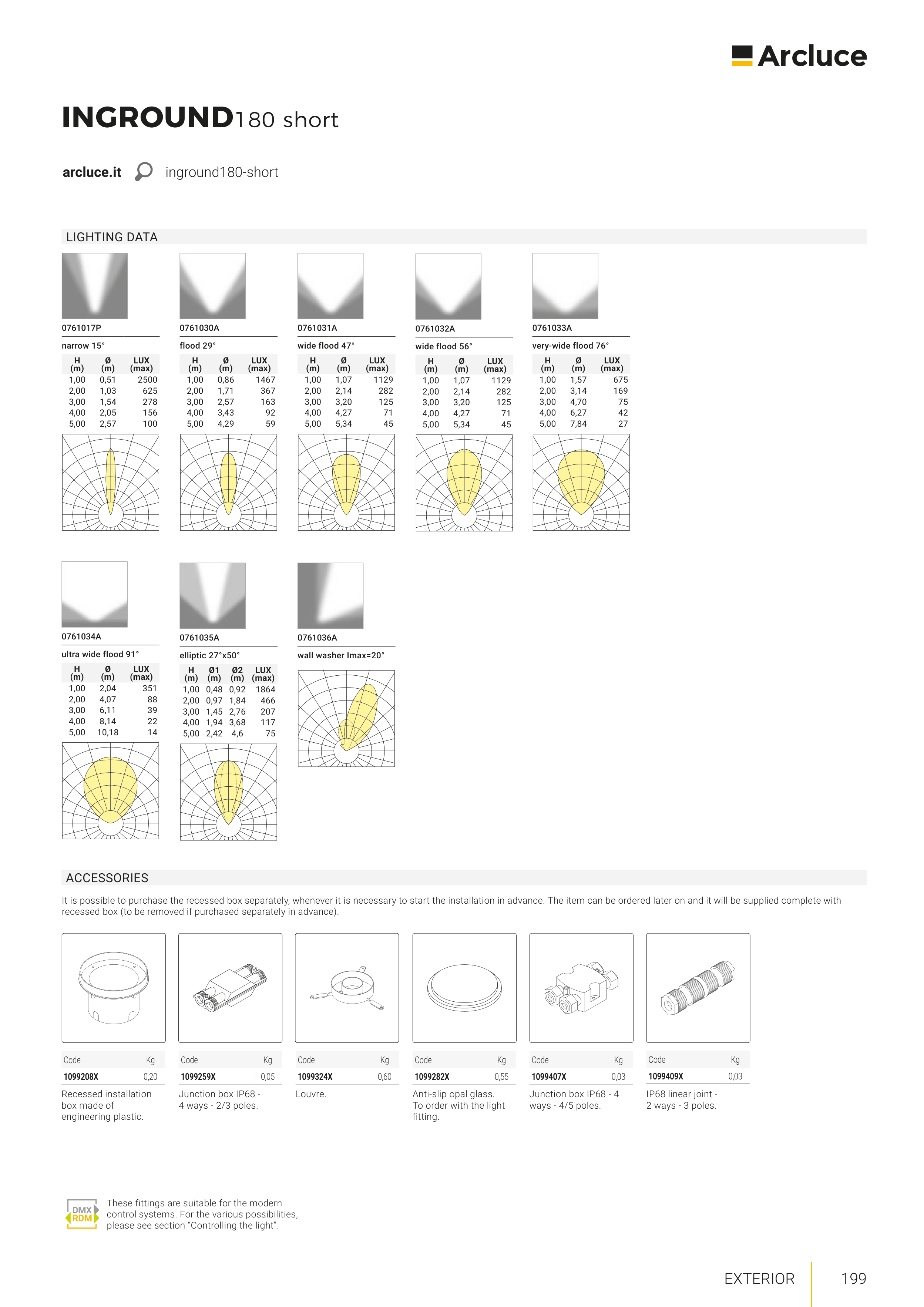

INGROUND180 short
inground180-short
arcluce.it
Code
Kg
1099208X
0,20
Code
Kg
1099324X
0,60
Code
Kg
1099282X
0,55
Code
Kg
1099409X
0,03
Code
Kg
1099407X
0,03
Code
Kg
1099259X
0,05
0761017P
narrow 15°
H
(m)
Ø
(m)
LUX
(max)
1,00
0,51
2500
2,00
1,03
625
3,00
1,54
278
4,00
2,05
156
5,00
2,57
100
0761034A
ultra wide flood 91°
H
(m)
Ø
(m)
LUX
(max)
1,00
2,04
351
2,00
4,07
88
3,00
6,11
39
4,00
8,14
22
5,00
10,18
14
0761033A
very-wide flood 76°
H
(m)
Ø
(m)
LUX
(max)
1,00
1,57
675
2,00
3,14
169
3,00
4,70
75
4,00
6,27
42
5,00
7,84
27
0761030A
flood 29°
H
(m)
Ø
(m)
LUX
(max)
1,00
0,86
1467
2,00
1,71
367
3,00
2,57
163
4,00
3,43
92
5,00
4,29
59
0761031A
wide flood 47°
H
(m)
Ø
(m)
LUX
(max)
1,00
1,07
1129
2,00
2,14
282
3,00
3,20
125
4,00
4,27
71
5,00
5,34
45
0761032A
wide flood 56°
H
(m)
Ø
(m)
LUX
(max)
1,00
1,07
1129
2,00
2,14
282
3,00
3,20
125
4,00
4,27
71
5,00
5,34
45
0761036A
wall washer Imax=20°
0761035A
elliptic 27°x50°
H
(m)
Ø1
(m)
Ø2
(m)
LUX
(max)
1,00 0,48 0,92
1864
2,00 0,97 1,84
466
3,00 1,45 2,76
207
4,00 1,94 3,68
117
5,00 2,42
4,6
75
199
EXTERIOR
LIGHTING DATA
It is possible to purchase the recessed box separately, whenever it is necessary to start the installation in advance. The item can be ordered later on and it will be supplied complete with
recessed box (to be removed if purchased separately in advance).
Recessed installation
box made of
engineering plastic.
Louvre.
Anti-slip opal glass.
To order with the light
fitting.
IP68 linear joint -
2 ways - 3 poles.
Junction box IP68 - 4
ways - 4/5 poles.
Junction box IP68 -
4 ways - 2/3 poles.
ACCESSORIES
These fittings are suitable for the modern
control systems. For the various possibilities,
please see section “Controlling the light”.
