4mm
A
C
B
DIMENSIONS
STANDARD COLOUR
30
Code
Optic
Luminaire
Watt Lumen
CRI
CCT
Class
Wiring
Power Supply
A
mm
B
mm
C
mm
0780006C-830-30
narrow 14°
12W
1550lm
80
3000K
3
REM-D
350mA
112
134
190
0780000C-830-30
flood 30°
12W
1400lm
80
3000K
3
REM-D
350mA
112
134
190
0780001C-830-30
wide flood 45°
12W
1450lm
80
3000K
3
REM-D
350mA
112
134
190
0780002C-830-30
wide flood 55°
12W
1450lm
80
3000K
3
REM-D
350mA
112
134
190
0780021C-830-30*
very-wide flood 80°
4W
250lm
80
3000K
3
REM-D
24V
112
134
190
0780003C-830-30
very-wide flood 80°
12W
1250lm
80
3000K
3
REM-D
350mA
112
134
190
0780004C-830-30
elliptic 50°x30°
12W
1450lm
80
3000K
3
REM-D
350mA
112
134
190
0780005C-830-30
wall washer Imax=20°
12W
1200lm
80
3000K
3
REM-D
350mA
112
134
190
0780014C-30
narrow 14°
12W
RGBW
3
REM-D
4x350mA
112
134
190
0780015C-30
wide flood 40°
12W
RGBW
3
REM-D
4x350mA
112
134
190
0780016C-30
elliptic 46°x22°
12W
RGBW
3
REM-D
4x350mA
112
134
190

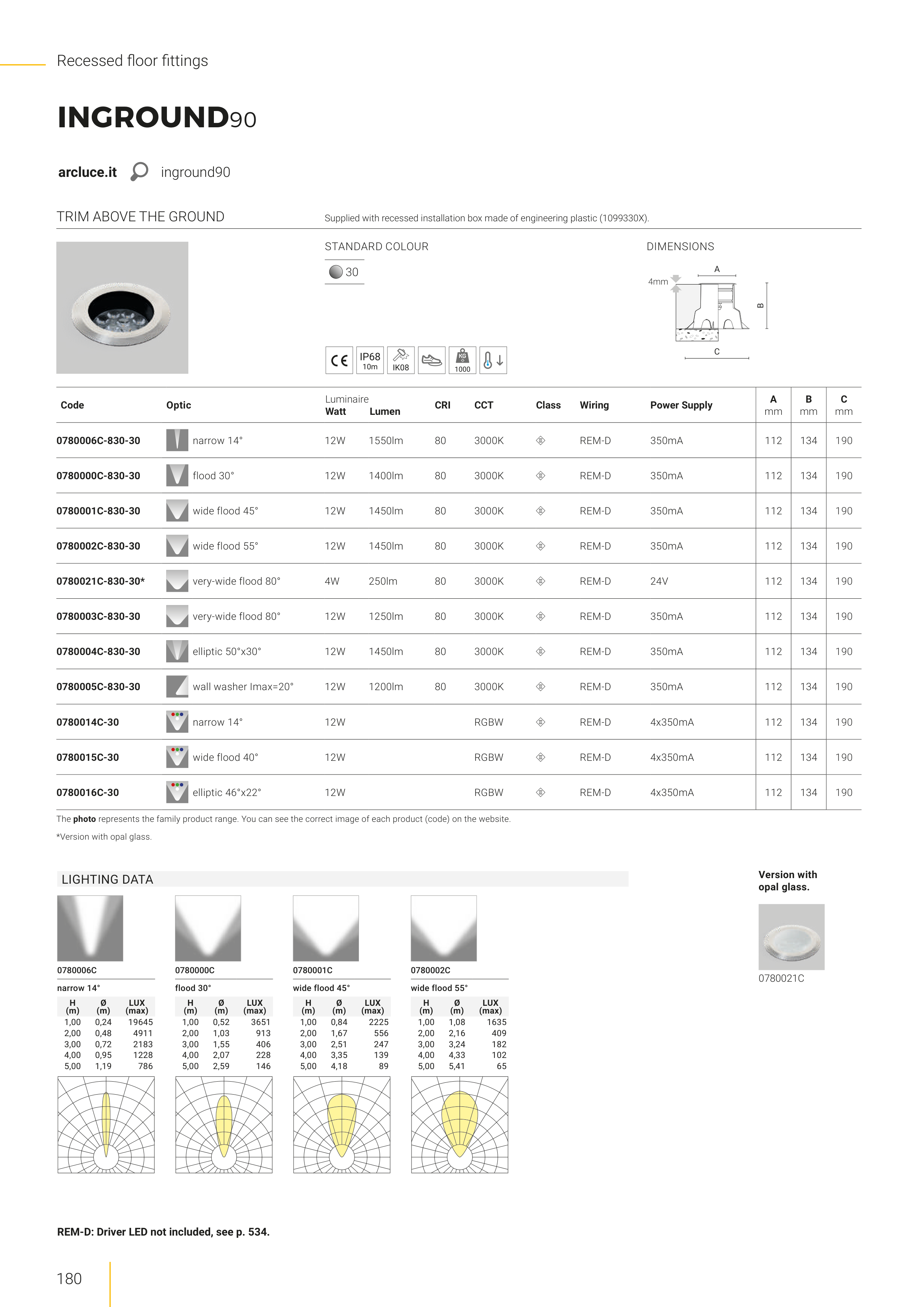

INGROUND90
inground90
arcluce.it
0780006C
narrow 14°
H
(m)
Ø
(m)
LUX
(max)
1,00
0,24
19645
2,00
0,48
4911
3,00
0,72
2183
4,00
0,95
1228
5,00
1,19
786
0780000C
flood 30°
H
(m)
Ø
(m)
LUX
(max)
1,00
0,52
3651
2,00
1,03
913
3,00
1,55
406
4,00
2,07
228
5,00
2,59
146
0780001C
wide flood 45°
H
(m)
Ø
(m)
LUX
(max)
1,00
0,84
2225
2,00
1,67
556
3,00
2,51
247
4,00
3,35
139
5,00
4,18
89
0780002C
wide flood 55°
H
(m)
Ø
(m)
LUX
(max)
1,00
1,08
1635
2,00
2,16
409
3,00
3,24
182
4,00
4,33
102
5,00
5,41
65
0780021C
180
TRIM ABOVE THE GROUND
Supplied with recessed installation box made of engineering plastic (1099330X).
The photo represents the family product range. You can see the correct image of each product (code) on the website.
*Version with opal glass.
Recessed floor fittings
REM-D: Driver LED not included, see p. 534.
LIGHTING DATA
Version with
opal glass.
