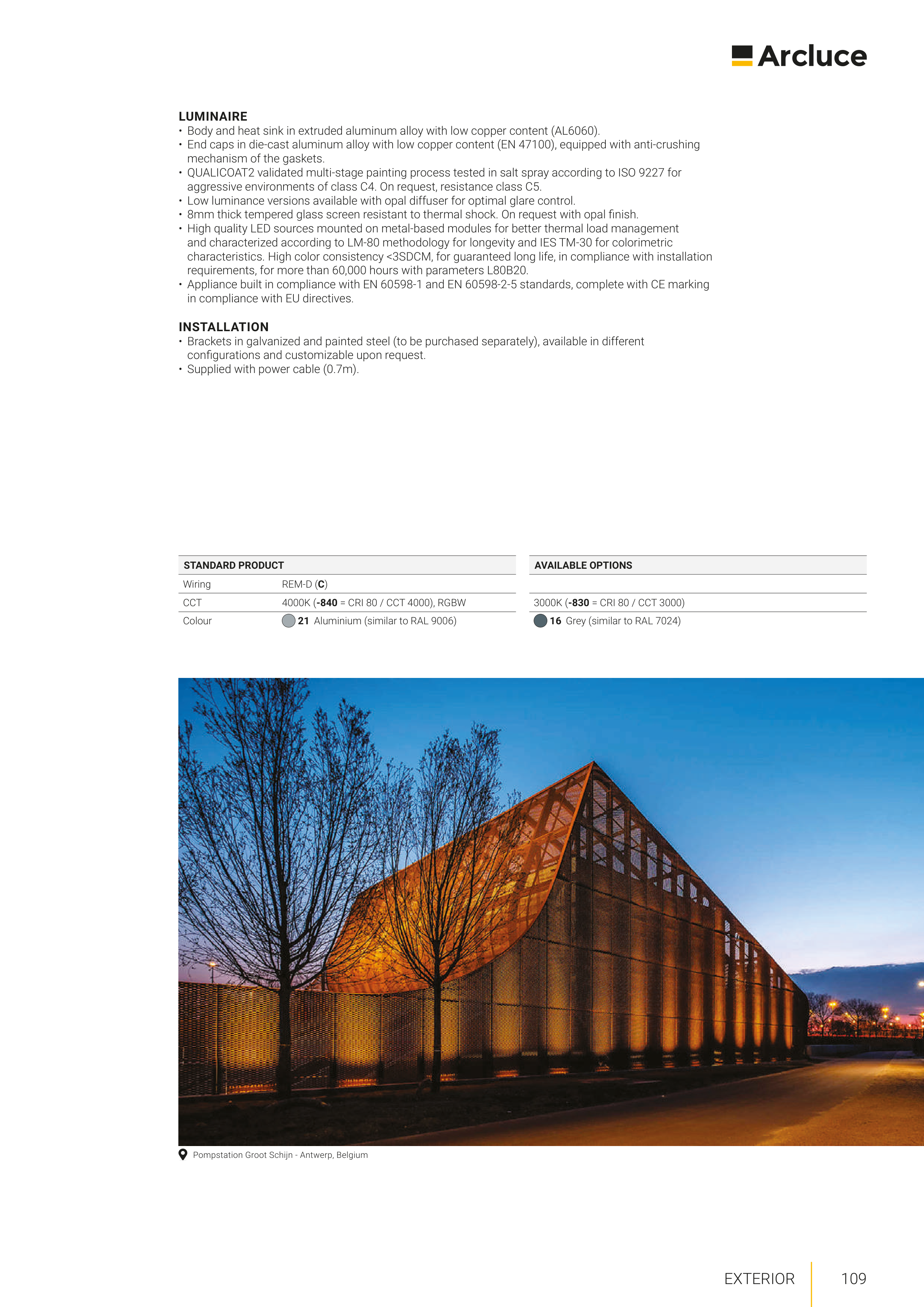

Pompstation Groot Schijn - Antwerp, Belgium
REM-D (C)
4000K (-840 = CRI 80 / CCT 4000), RGBW
21
3000K (-830 = CRI 80 / CCT 3000)
16
109
EXTERIOR
LUMINAIRE
• Body and heat sink in extruded aluminum alloy with low copper content (AL6060).
• End caps in die-cast aluminum alloy with low copper content (EN 47100), equipped with anti-crushing
mechanism of the gaskets.
• QUALICOAT2 validated multi-stage painting process tested in salt spray according to ISO 9227 for
aggressive environments of class C4. On request, resistance class C5.
• Low luminance versions available with opal diffuser for optimal glare control.
• 8mm thick tempered glass screen resistant to thermal shock. On request with opal finish.
• High quality LED sources mounted on metal-based modules for better thermal load management
and characterized according to LM-80 methodology for longevity and IES TM-30 for colorimetric
characteristics. High color consistency <3SDCM, for guaranteed long life, in compliance with installation
requirements, for more than 60,000 hours with parameters L80B20.
• Appliance built in compliance with EN 60598-1 and EN 60598-2-5 standards, complete with CE marking
in compliance with EU directives.
INSTALLATION
• Brackets in galvanized and painted steel (to be purchased separately), available in different
configurations and customizable upon request.
• Supplied with power cable (0.7m).
STANDARD PRODUCT
Wiring
CCT
Colour
Aluminium (similar to RAL 9006)
AVAILABLE OPTIONS
Grey (similar to RAL 7024)
