23
0
5
50
75
100
150
250
800
1000
LUX
200W
Galvanized and
painted steel bracket.
Tilt
screw.
Compact profile.
Large rear fins for
optimal heat
dissipation in all
positions.
Tecnopolymer M20 cable
gland.

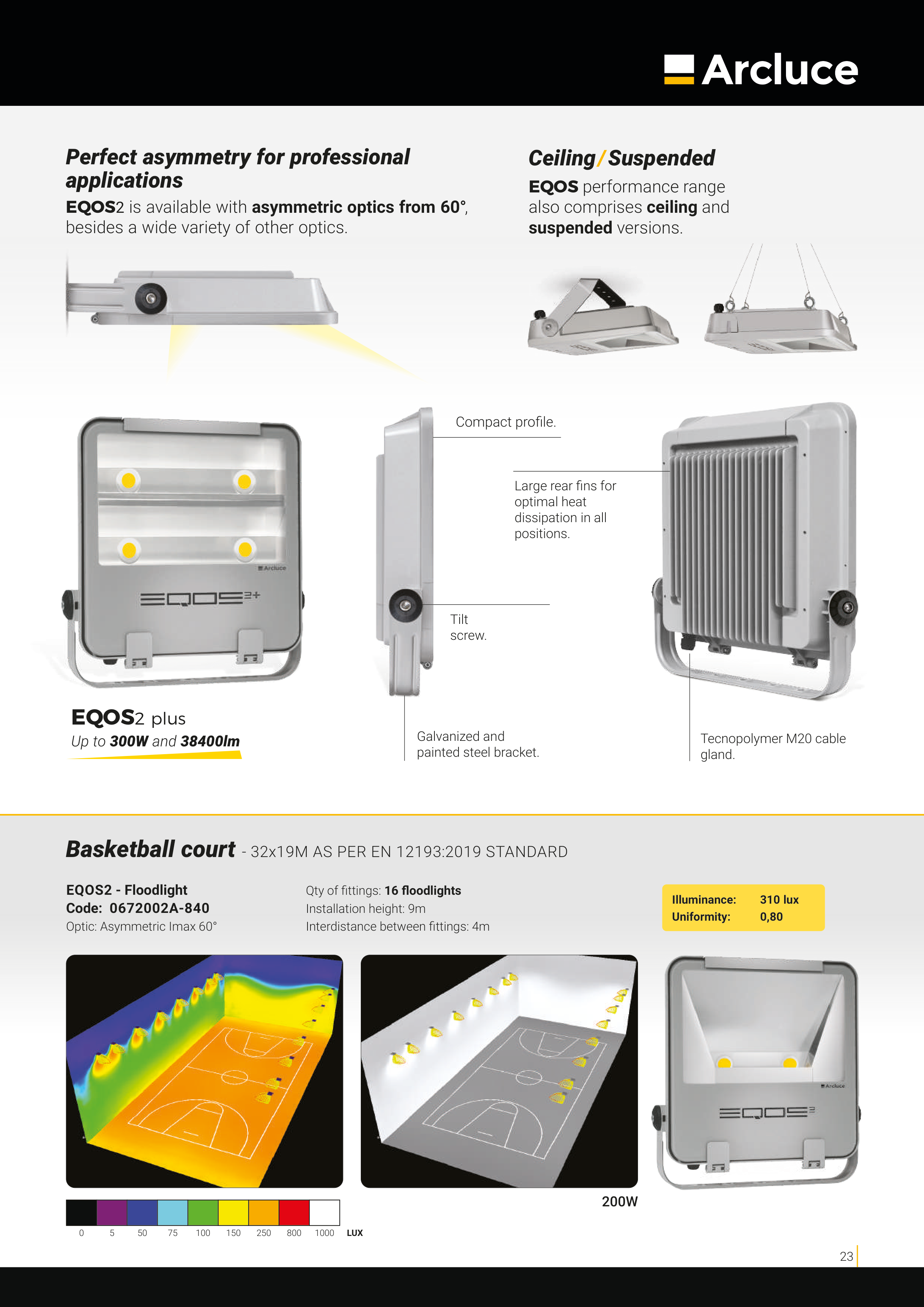

Basketball court - 32x19M AS PER EN 12193:2019 STANDARD
EQOS2 - Floodlight
Code: 0672002A-840
Optic: Asymmetric Imax 60°
Qty of fittings: 16 floodlights
Installation height: 9m
Interdistance between fittings: 4m
Ceiling/Suspended
EQOS performance range
also comprises ceiling and
suspended versions.
Perfect asymmetry for professional
applications
EQOS2 is available with asymmetric optics from 60°,
besides a wide variety of other optics.
Illuminance:
310 lux
Uniformity:
0,80
EQOS2 plus
Up to 300W and 38400lm
