40
ø35
ø50
max 1900
1365 | 1585
25°
Data for standard LED product is shown for LED light source 3000K. Other variants are available on our website.

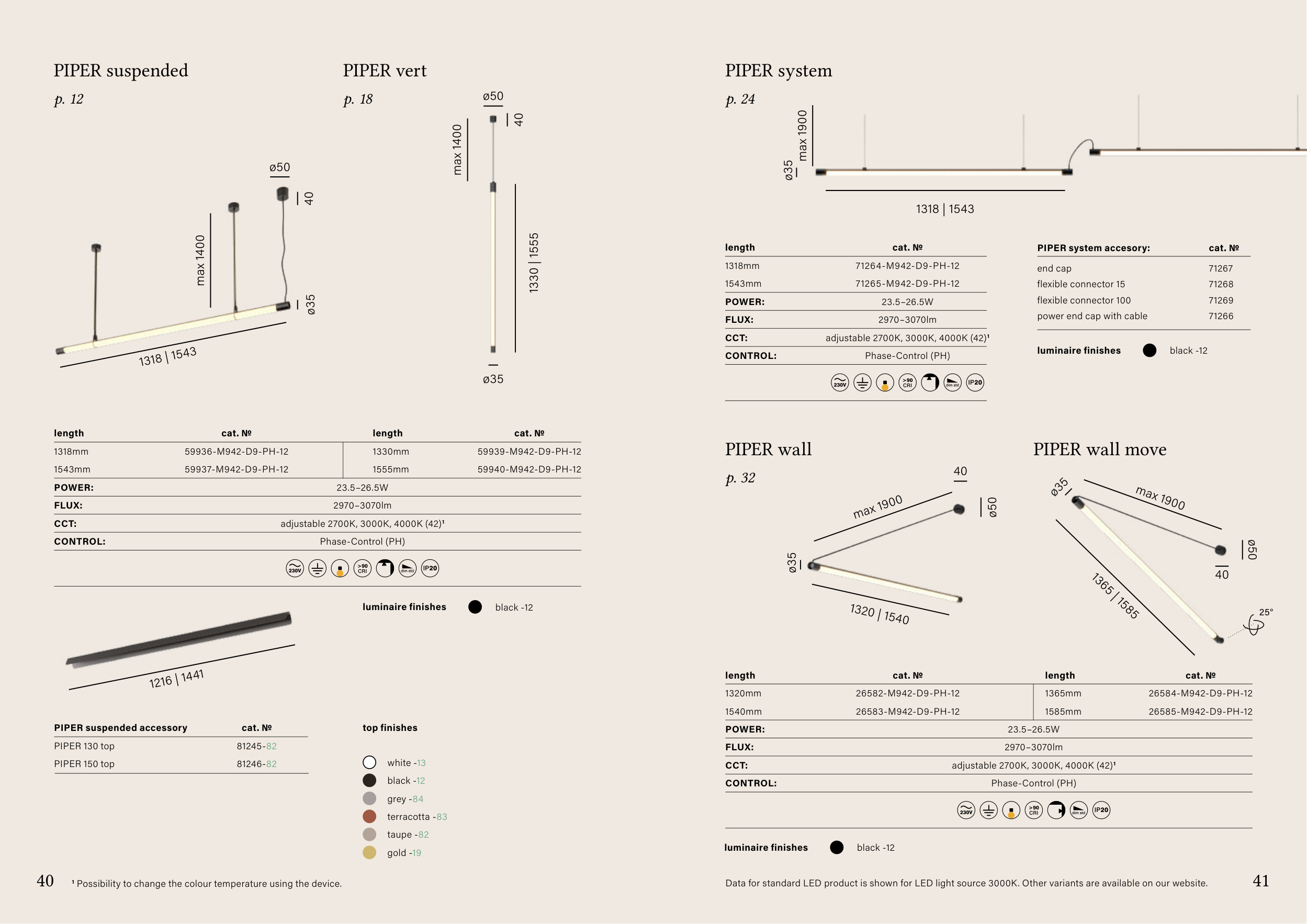

PIPER suspended
PIPER vert
PIPER system
PIPER wall
PIPER wall move
p. 12
p. 18
p. 24
p. 32
cat. №
cat. №
cat. №
cat. №
cat. №
230V
CRI
>90
IP20
230V
CRI
>90
IP20
dim std
230V
CRI
>90
IP20
dim std
dim std
23.5–26.5W
2970–3070lm
23.5–26.5W
2970–3070lm
23.5–26.5W
2970–3070lm
adjustable 2700K, 3000K, 4000K (42)1
adjustable 2700K, 3000K, 4000K (42)1
adjustable 2700K, 3000K, 4000K (42)1
Phase-Control (PH)
Phase-Control (PH)
Phase-Control (PH)
59936-M942-D9-PH-12
59937-M942-D9-PH-12
26582-M942-D9-PH-12
26583-M942-D9-PH-12
59939-M942-D9-PH-12
59940-M942-D9-PH-12
26584-M942-D9-PH-12
26585-M942-D9-PH-12
71264-M942-D9-PH-12
71265-M942-D9-PH-12
POWER:
FLUX:
CCT:
CONTROL:
POWER:
FLUX:
CCT:
CONTROL:
POWER:
FLUX:
CCT:
CONTROL:
1 Possibility to change the colour temperature using the device.
length
length
length
length
length
1318mm
1543mm
1330mm
1555mm
1320mm
1540mm
1365mm
1585mm
1318mm
1543mm
40
ø35
ø35
ø35
ø50
max 1400
max 1900
1318 | 1543
40
ø50
max 1900
1320 | 1540
40
ø35
ø50
max 1400
1330 | 1555
1318 | 1543
1216 | 1441
cat. №
81245-82
81246-82
PIPER suspended accessory
PIPER 130 top
PIPER 150 top
PIPER system accesory:
cat. №
end cap
71267
flexible connector 15
71268
flexible connector 100
71269
power end cap with cable
71266
black -12
luminaire finishes
top finishes
white -13
black -12
grey -84
terracotta -83
taupe -82
gold -19
black -12
black -12
luminaire finishes
luminaire finishes
