With the use of track systems, one can easily change the number, location and even the type of luminaires
installed indoors. It is possible to adjust the interior lighting without making additional changes to
the ceiling structure or electrical installation. Track systems are made of aluminum profiles varnished
in selected colours. The inside copper wires are placed in a guideway made of self-extinguishing
polycarbonate, which also insulates the wires from the aluminium body. Fire resistance class – V-0.

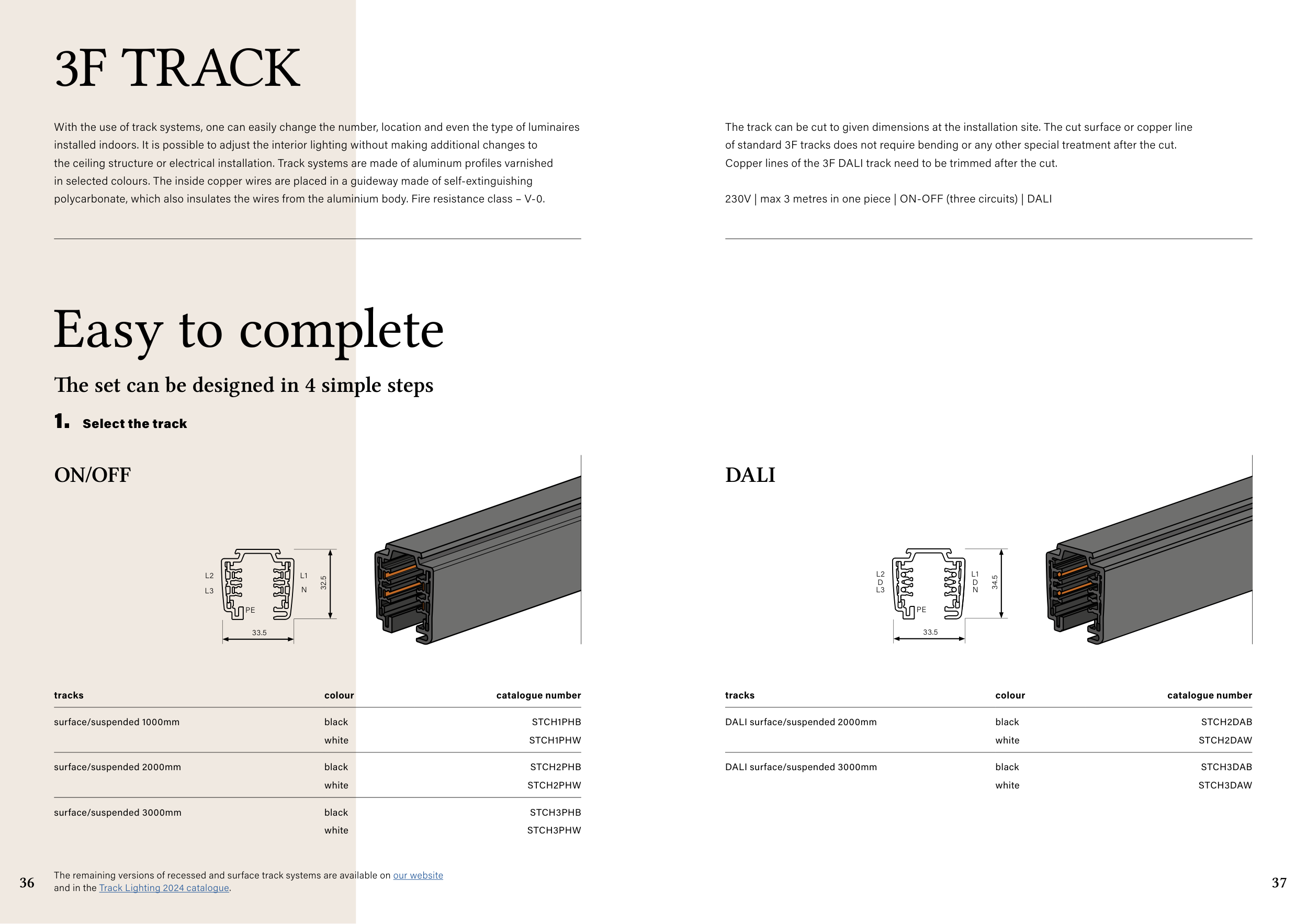

3F TRACK
The set can be designed in 4 simple steps
Easy to complete
1. Select the track
ON/OFF
DALI
The track can be cut to given dimensions at the installation site. The cut surface or copper line
of standard 3F tracks does not require bending or any other special treatment after the cut.
Copper lines of the 3F DALI track need to be trimmed after the cut.
230V | max 3 metres in one piece | ON-OFF (three circuits) | DALI
surface/suspended 1000mm
black
STCH1PHB
white
STCH1PHW
surface/suspended 2000mm
black
STCH2PHB
white
STCH2PHW
surface/suspended 3000mm
black
STCH3PHB
white
STCH3PHW
DALI surface/suspended 2000mm
black
STCH2DAB
white
STCH2DAW
DALI surface/suspended 3000mm
black
STCH3DAB
white
STCH3DAW
tracks
colour
catalogue number
tracks
colour
catalogue number
33.5
32.5
N
L1
L3
L2
PE
33.5
34.5
N
L1
L3
PE
D
D
L2
The remaining versions of recessed and surface track systems are available on our website
and in the Track Lighting 2024 catalogue.
