48V | max 3 metres in one piece | ON-OFF (one or two circuits) | DALI
Can be safely installed on walls | requires 48V power supply
Multitrack features + more space
A greater track height means more concealed mounting elements. In the HIGH MULTITRACK system,
the mounting component of most luminaires is completely hidden from view, and some luminaires allow
the entire lighting element to be flush with the ceiling.

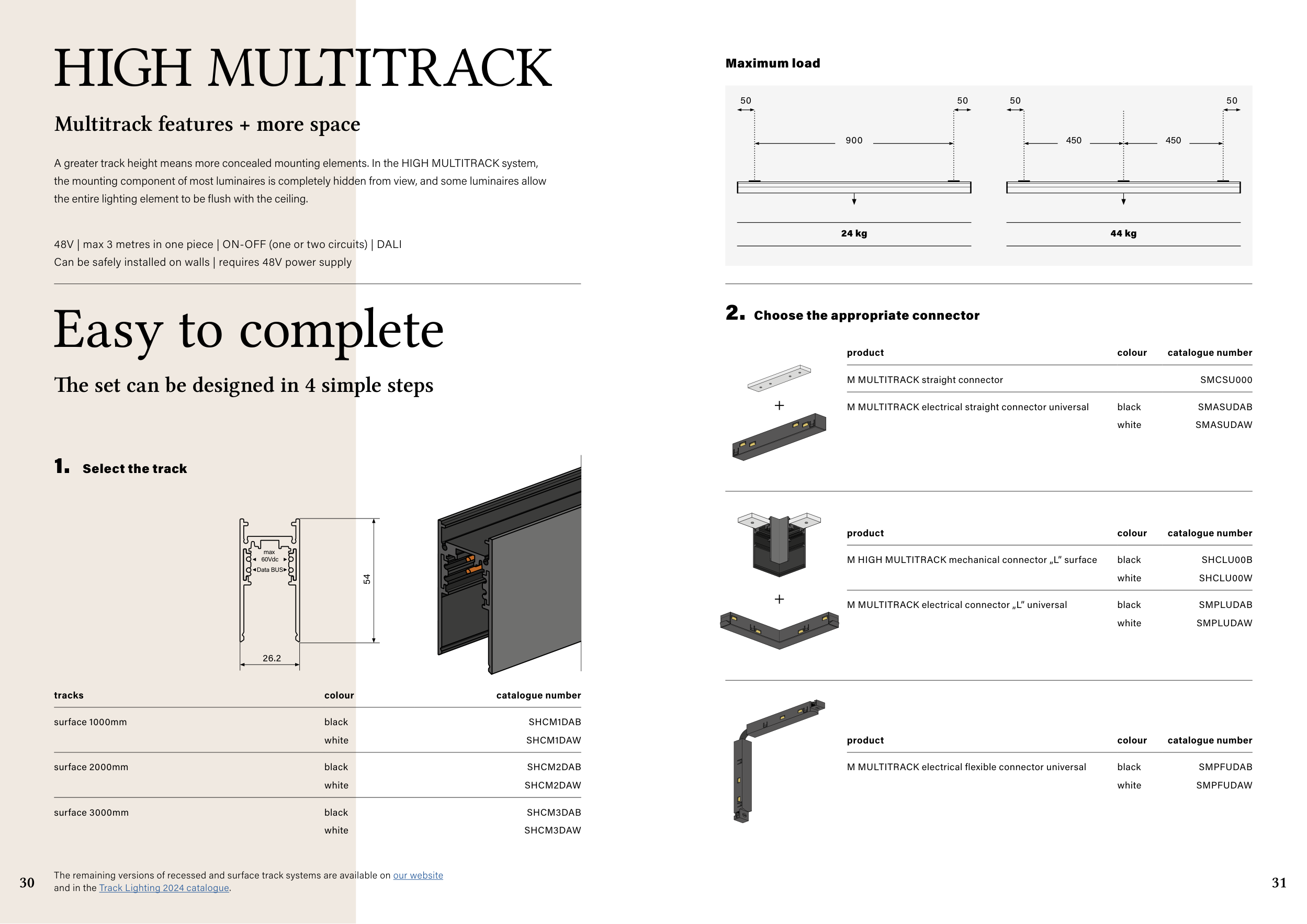

HIGH MULTITRACK
The set can be designed in 4 simple steps
Easy to complete
Maximum load
24 kg
900
50
50
44 kg
50
50
450
450
1. Select the track
surface 1000mm
black
SHCM1DAB
white
SHCM1DAW
surface 2000mm
black
SHCM2DAB
white
SHCM2DAW
surface 3000mm
black
SHCM3DAB
white
SHCM3DAW
tracks
colour
catalogue number
26.2
54
max
60Vdc
Data BUS
M MULTITRACK electrical flexible connector universal
black
SMPFUDAB
white
SMPFUDAW
M HIGH MULTITRACK mechanical connector „L” surface
black
SHCLU00B
white
SHCLU00W
M MULTITRACK electrical connector „L” universal
black
SMPLUDAB
white
SMPLUDAW
M MULTITRACK straight connector
SMCSU000
M MULTITRACK electrical straight connector universal
black
SMASUDAB
white
SMASUDAW
product
colour
catalogue number
product
colour
catalogue number
product
colour
catalogue number
2. Choose the appropriate connector
The remaining versions of recessed and surface track systems are available on our website
and in the Track Lighting 2024 catalogue.
