M MULTITRACK end cap surface/suspended
black
SMECU00B
white
SMECU00W
M MULTITRACK AQsmart interface adapter
black
SMAMUDBB
white
SMAMUDBW
M MULTITRACK end cap with opening surface/suspended
black
SMECH00B
white
SMECH00W
product
colour
catalogue number
product
colour
catalogue number
product
colour
catalogue number
4. Match the remaining components: end caps, mounting elements, and other
Extra
M MULTITRACK power supply plug-in 100W 48V
black
SHIP010W
white
SHIP010B
M MULTITRACK canopy surface
black
SMCB200B
white
SMCB200W
M MULTITRACK power supply plug-in 250W 48V
black
SHIP025B
white
SHIP025W
M MULTITRACK canopy with power supply EM 100W 48V
black
SMCMMPBB
surface
white
SMCMMPBW
power supply 60W 48V
SHRP0600
power supply 100W 48V
SHRP0100
power supply 200W 48V
SHRP0200
product
colour
catalogue number
product
colour
catalogue number
product
colour
catalogue number
product
colour
catalogue number
product
catalogue number

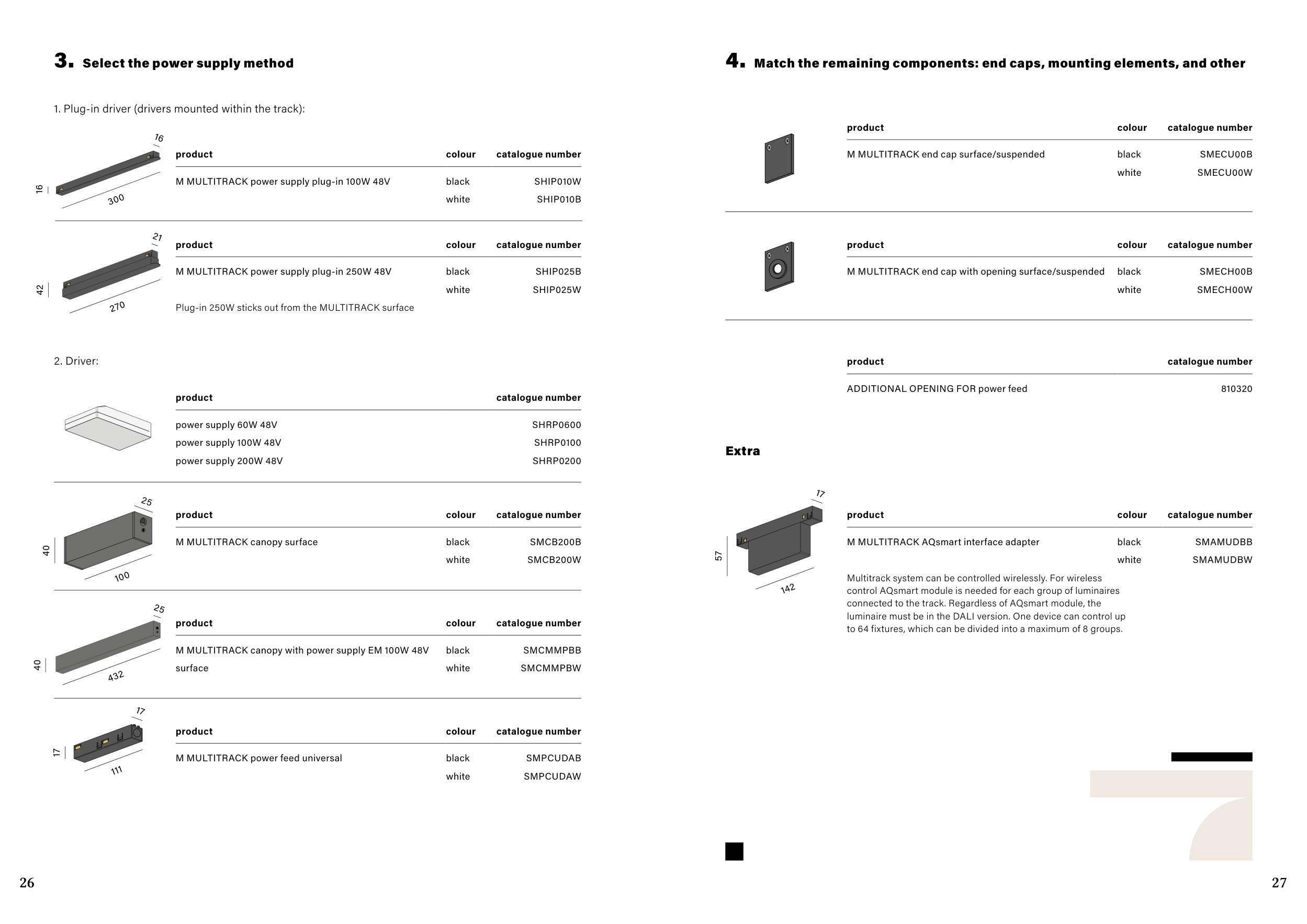

3. Select the power supply method
1. Plug-in driver (drivers mounted within the track):
2. Driver:
M MULTITRACK power feed universal
black
SMPCUDAB
white
SMPCUDAW
product
colour
catalogue number
Plug-in 250W sticks out from the MULTITRACK surface
300
270
16
42
16
21
100
432
40
40
25
25
111
17
17
142
57
17
ADDITIONAL OPENING FOR power feed
810320
product
catalogue number
Multitrack system can be controlled wirelessly. For wireless
control AQsmart module is needed for each group of luminaires
connected to the track. Regardless of AQsmart module, the
luminaire must be in the DALI version. One device can control up
to 64 fixtures, which can be divided into a maximum of 8 groups.
