26.2
28,7
max
60Vdc
Data BUS
48V | max 2 metres in one piece | MULTITRACK is compatible with both ON-OFF
(one or two circuits) and DALI. To create second circuits, use DALI wires as
ON/OFF circuits 2 | Can be safety installed on walls | requires 48V power supply
Safe voltage 48V & wall-ceiling arrangements
The safe voltage inside the MULTITRACK and variety of mechanical and electrical connectors allow to use
the system within arm's reach and wall-ceiling transitions. The simple and refined form remains elegant
even at very close proximity. In all MULTITRACK systems, luminaires can be connected to two circuits
using two power supplies (except plug-in power supplies, which power only one circuit).
surface 1000mm
black
SMCM1DAB
white
SMCM1DAW
surface 2000mm
black
SMCM2DAB
white
SMCM2DAW
tracks
colour
catalogue number

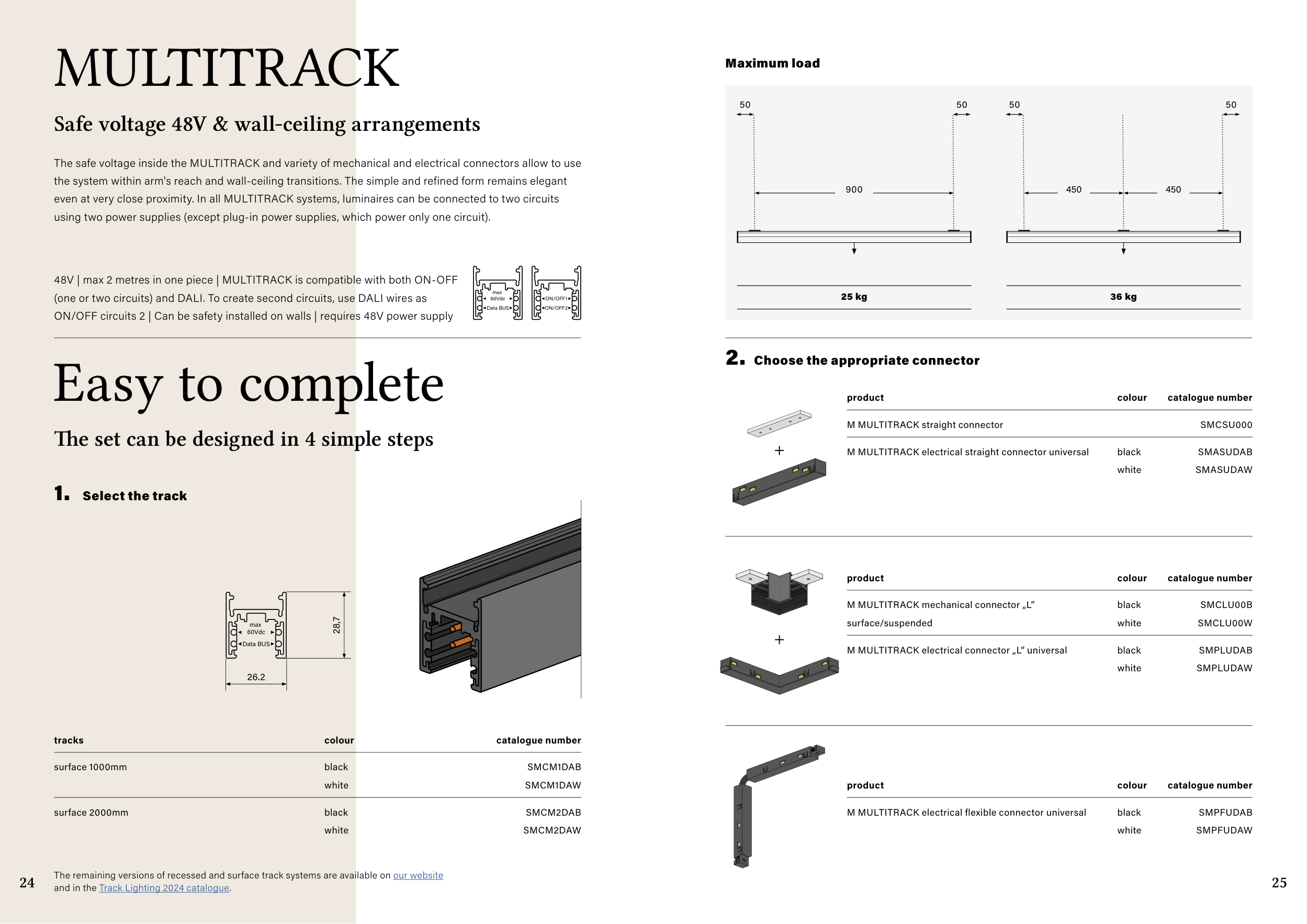

MULTITRACK
The set can be designed in 4 simple steps
Easy to complete
M MULTITRACK electrical flexible connector universal
black
SMPFUDAB
white
SMPFUDAW
M MULTITRACK mechanical connector „L”
black
SMCLU00B
surface/suspended
white
SMCLU00W
M MULTITRACK electrical connector „L” universal
black
SMPLUDAB
white
SMPLUDAW
M MULTITRACK straight connector
SMCSU000
M MULTITRACK electrical straight connector universal
black
SMASUDAB
white
SMASUDAW
product
colour
catalogue number
product
colour
catalogue number
product
colour
catalogue number
Maximum load
25 kg
900
50
50
36 kg
50
50
450
450
2. Choose the appropriate connector
1. Select the track
The remaining versions of recessed and surface track systems are available on our website
and in the Track Lighting 2024 catalogue.
max
60Vdc
Data BUS
ON/OFF 1
ON/OFF 2
