65
64
MATERIALS
MATERIALES
Painted stainless steel
Acero inoxidable pintado
FINISHES
ACABADOS
White · Blanco
BL
Beige · Beige
BE
Grey · Gris
G
Taupe · Topo
T
Black · Negro
N
Custom · Personalizado
CC
CABLE
Transparent or black
Transparente o negro
Standard: 150 cm | 59,1”
120 V: 200 cm | 78,7”
Lenght/Largo customizable
CABLE
Black waterproof neoprene
cable H05RN-F
Cable de neopreno negro
resistente al agua H05RN-F
Standard: 150cm | 59,1”
Lenght/largo customizable
CANOPY
FLORÓN
Steel gloss nickel- plated
Acero niquel-satinado
230V: Ø8cm | 3,1”
120V: Ø12cm | 4,7”
CANOPY
FLORÓN
Steel gloss nickel- plated
Acero niquel-satinado
230V: Ø12cm | 4,7”
120V: Ø12cm | 4,7”
CANOPY
FLORÓN
Steel and stainless steel
coated with epoxy paint in black
Acero y acero inoxidable
pintado en negro
Ø12cm | 4,7”
STANDARDS
TESTED
NORMAS
ENSAYADAS
EN 60598
EN 60529
Degree IP | Grado IP
IP64
DIFFUSER
DIFUSOR
Bottom diffuser
Difusor inferior

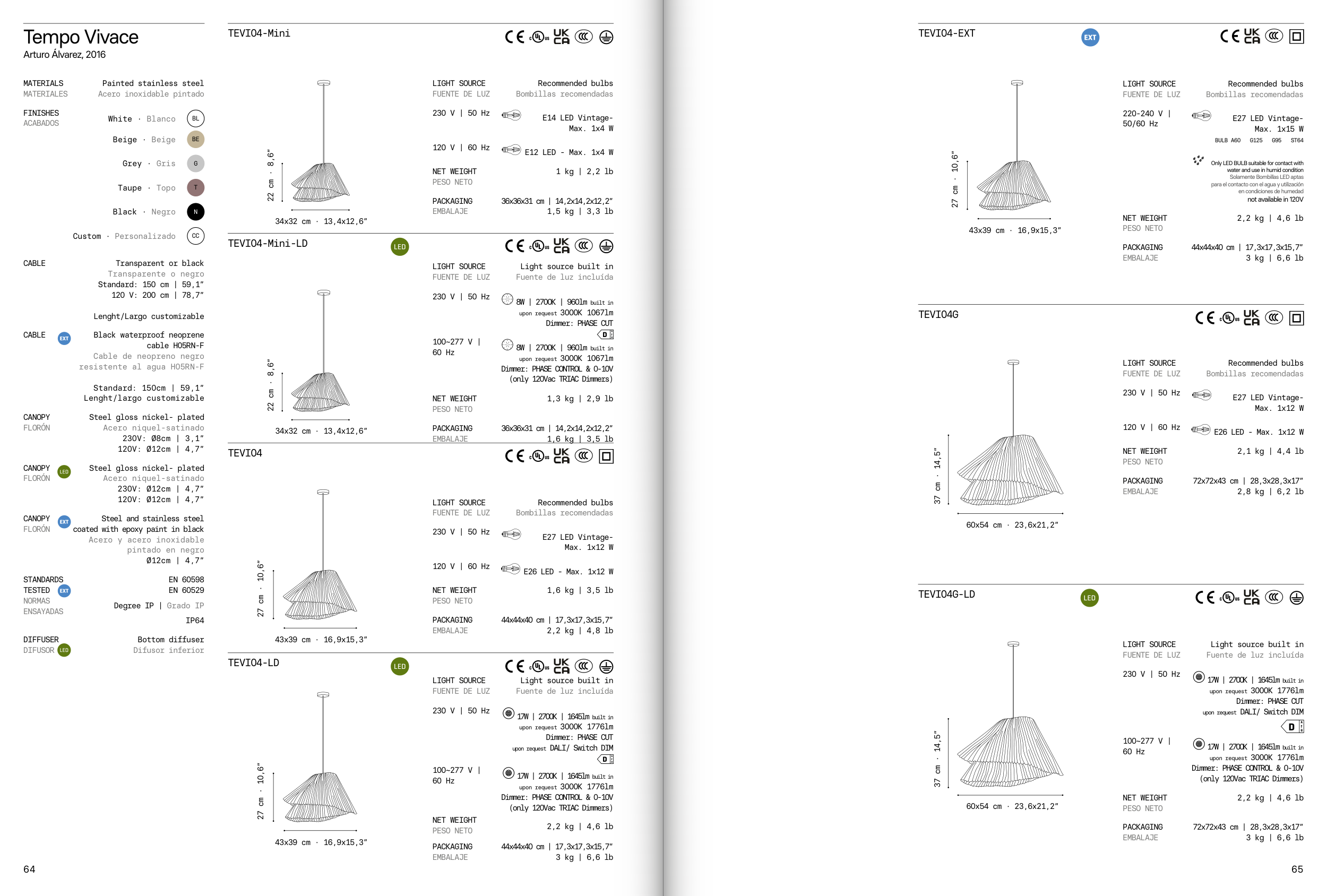

Tempo Vivace
Arturo Álvarez, 2016
LIGHT SOURCE
FUENTE DE LUZ
Light source built in
Fuente de luz incluída
230 V | 50 Hz
8W | 2700K | 960lm built in
upon request 3000K 1067lm
Dimmer: PHASE CUT
100~277 V |
60 Hz
8W | 2700K | 960lm built in
upon request 3000K 1067lm
Dimmer: PHASE CONTROL & 0-10V
(only 120Vac TRIAC Dimmers)
NET WEIGHT
PESO NETO
1,3 kg | 2,9 lb
PACKAGING
EMBALAJE
36x36x31 cm | 14,2x14,2x12,2”
1,6 kg | 3,5 lb
LIGHT SOURCE
FUENTE DE LUZ
Recommended bulbs
Bombillas recomendadas
230 V | 50 Hz
E14 LED Vintage-
Max. 1x4 W
120 V | 60 Hz
E12 LED - Max. 1x4 W
NET WEIGHT
PESO NETO
1 kg | 2,2 lb
PACKAGING
EMBALAJE
36x36x31 cm | 14,2x14,2x12,2”
1,5 kg | 3,3 lb
LIGHT SOURCE
FUENTE DE LUZ
Recommended bulbs
Bombillas recomendadas
230 V | 50 Hz
E27 LED Vintage-
Max. 1x12 W
120 V | 60 Hz
E26 LED - Max. 1x12 W
NET WEIGHT
PESO NETO
1,6 kg | 3,5 lb
PACKAGING
EMBALAJE
44x44x40 cm | 17,3x17,3x15,7”
2,2 kg | 4,8 lb
TEVI04-Mini
TEVI04-Mini-LD
TEVI04
TEVI04-LD
34x32 cm · 13,4x12,6”
34x32 cm · 13,4x12,6”
43x39 cm · 16,9x15,3”
43x39 cm · 16,9x15,3”
43x39 cm · 16,9x15,3”
22 cm · 8,6”
22 cm · 8,6”
27 cm · 10,6”
27 cm · 10,6”
27 cm · 10,6”
A
G
D
LIGHT SOURCE
FUENTE DE LUZ
Light source built in
Fuente de luz incluída
230 V | 50 Hz
17W | 2700K | 1645lm built in
upon request 3000K 1776lm
Dimmer: PHASE CUT
upon request DALI/ Switch DIM
100~277 V |
60 Hz
17W | 2700K | 1645lm built in
upon request 3000K 1776lm
Dimmer: PHASE CONTROL & 0-10V
(only 120Vac TRIAC Dimmers)
2,2 kg | 4,6 lb
PACKAGING
EMBALAJE
44x44x40 cm | 17,3x17,3x15,7”
3 kg | 6,6 lb
A
G
D
NET WEIGHT
PESO NETO
TEVI04-EXT
TEVI04G
TEVI04G-LD
60x54 cm · 23,6x21,2”
60x54 cm · 23,6x21,2”
37 cm · 14,5”
37 cm · 14,5”
LIGHT SOURCE
FUENTE DE LUZ
Light source built in
Fuente de luz incluída
230 V | 50 Hz
17W | 2700K | 1645lm built in
upon request 3000K 1776lm
Dimmer: PHASE CUT
upon request DALI/ Switch DIM
100~277 V |
60 Hz
17W | 2700K | 1645lm built in
upon request 3000K 1776lm
Dimmer: PHASE CONTROL & 0-10V
(only 120Vac TRIAC Dimmers)
NET WEIGHT
PESO NETO
2,2 kg | 4,6 lb
PACKAGING
EMBALAJE
72x72x43 cm | 28,3x28,3x17”
3 kg | 6,6 lb
LIGHT SOURCE
FUENTE DE LUZ
Recommended bulbs
Bombillas recomendadas
220-240 V |
50/60 Hz
E27 LED Vintage-
Max. 1x15 W
BULB A60 G125 G95 ST64
Only LED BULB suitable for contact with
water and use in humid condition
Solamente Bombillas LED aptas
para el contacto con el agua y utilización
en condiciones de humedad
not available in 120V
NET WEIGHT
PESO NETO
2,2 kg | 4,6 lb
PACKAGING
EMBALAJE
44x44x40 cm | 17,3x17,3x15,7”
3 kg | 6,6 lb
LIGHT SOURCE
FUENTE DE LUZ
Recommended bulbs
Bombillas recomendadas
230 V | 50 Hz
E27 LED Vintage-
Max. 1x12 W
120 V | 60 Hz
E26 LED - Max. 1x12 W
NET WEIGHT
PESO NETO
2,1 kg | 4,4 lb
PACKAGING
EMBALAJE
72x72x43 cm | 28,3x28,3x17”
2,8 kg | 6,2 lb
A
G
D
