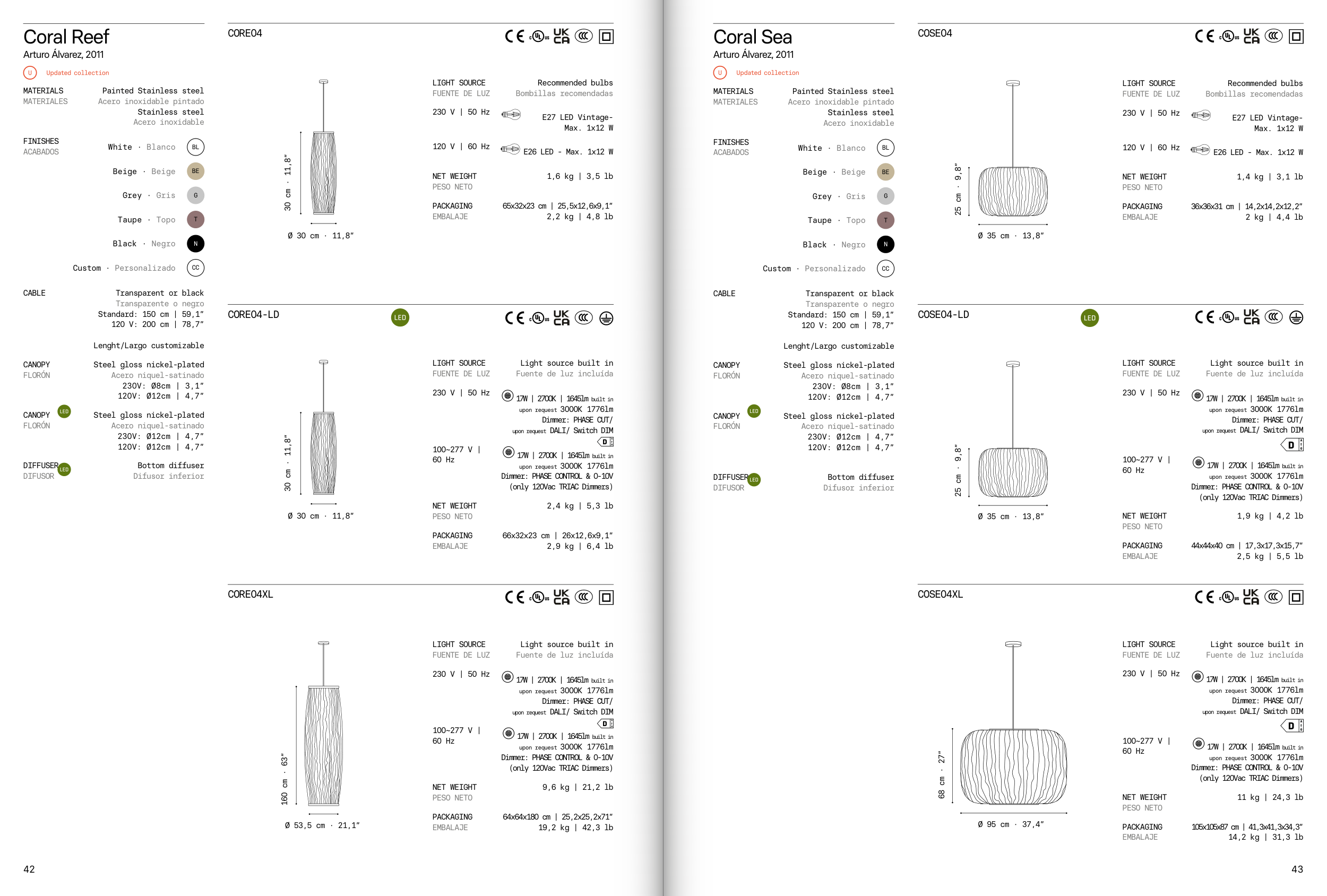

Coral Sea
Arturo Álvarez, 2011
COSE04
COSE04-LD
LIGHT SOURCE
FUENTE DE LUZ
Recommended bulbs
Bombillas recomendadas
230 V | 50 Hz
E27 LED Vintage-
Max. 1x12 W
120 V | 60 Hz
E26 LED - Max. 1x12 W
NET WEIGHT
PESO NETO
1,4 kg | 3,1 lb
PACKAGING
EMBALAJE
36x36x31 cm | 14,2x14,2x12,2”
2 kg | 4,4 lb
Ø 35 cm · 13,8”
Ø 35 cm · 13,8”
25 cm · 9,8”
25 cm · 9,8”
LIGHT SOURCE
FUENTE DE LUZ
Light source built in
Fuente de luz incluída
230 V | 50 Hz
17W | 2700K | 1645lm built in
upon request 3000K 1776lm
Dimmer: PHASE CUT/
upon request DALI/ Switch DIM
100~277 V |
60 Hz
17W | 2700K | 1645lm built in
upon request 3000K 1776lm
Dimmer: PHASE CONTROL & 0-10V
(only 120Vac TRIAC Dimmers)
NET WEIGHT
PESO NETO
1,9 kg | 4,2 lb
PACKAGING
EMBALAJE
44x44x40 cm | 17,3x17,3x15,7”
2,5 kg | 5,5 lb
LIGHT SOURCE
FUENTE DE LUZ
Light source built in
Fuente de luz incluída
230 V | 50 Hz
17W | 2700K | 1645lm built in
upon request 3000K 1776lm
Dimmer: PHASE CUT/
upon request DALI/ Switch DIM
100~277 V |
60 Hz
17W | 2700K | 1645lm built in
upon request 3000K 1776lm
Dimmer: PHASE CONTROL & 0-10V
(only 120Vac TRIAC Dimmers)
NET WEIGHT
PESO NETO
11 kg | 24,3 lb
PACKAGING
EMBALAJE
105x105x87 cm | 41,3x41,3x34,3”
14,2 kg | 31,3 lb
A
G
D
A
G
D
COSE04XL
MATERIALS
MATERIALES
Painted Stainless steel
Acero inoxidable pintado
Stainless steel
Acero inoxidable
FINISHES
ACABADOS
White · Blanco
BL
Beige · Beige
BE
Grey · Gris
G
Taupe · Topo
T
Black · Negro
N
Custom · Personalizado
CC
CABLE
Transparent or black
Transparente o negro
Standard: 150 cm | 59,1”
120 V: 200 cm | 78,7”
Lenght/Largo customizable
CANOPY
FLORÓN
Steel gloss nickel-plated
Acero niquel-satinado
230V: Ø8cm | 3,1”
120V: Ø12cm | 4,7”
CANOPY
FLORÓN
Steel gloss nickel-plated
Acero niquel-satinado
230V: Ø12cm | 4,7”
120V: Ø12cm | 4,7”
DIFFUSER
DIFUSOR
Bottom diffuser
Difusor inferior
Coral Reef
Arturo Álvarez, 2011
LIGHT SOURCE
FUENTE DE LUZ
Recommended bulbs
Bombillas recomendadas
230 V | 50 Hz
E27 LED Vintage-
Max. 1x12 W
120 V | 60 Hz
E26 LED - Max. 1x12 W
NET WEIGHT
PESO NETO
1,6 kg | 3,5 lb
PACKAGING
EMBALAJE
65x32x23 cm | 25,5x12,6x9,1”
2,2 kg | 4,8 lb
CORE04
CORE04-LD
Ø 30 cm · 11,8”
Ø 30 cm · 11,8”
30 cm · 11,8”
30 cm · 11,8”
LIGHT SOURCE
FUENTE DE LUZ
Light source built in
Fuente de luz incluída
230 V | 50 Hz
17W | 2700K | 1645lm built in
upon request 3000K 1776lm
Dimmer: PHASE CUT/
upon request DALI/ Switch DIM
100~277 V |
60 Hz
17W | 2700K | 1645lm built in
upon request 3000K 1776lm
Dimmer: PHASE CONTROL & 0-10V
(only 120Vac TRIAC Dimmers)
NET WEIGHT
PESO NETO
2,4 kg | 5,3 lb
PACKAGING
EMBALAJE
66x32x23 cm | 26x12,6x9,1”
2,9 kg | 6,4 lb
LIGHT SOURCE
FUENTE DE LUZ
Light source built in
Fuente de luz incluída
230 V | 50 Hz
17W | 2700K | 1645lm built in
upon request 3000K 1776lm
Dimmer: PHASE CUT/
upon request DALI/ Switch DIM
100~277 V |
60 Hz
17W | 2700K | 1645lm built in
upon request 3000K 1776lm
Dimmer: PHASE CONTROL & 0-10V
(only 120Vac TRIAC Dimmers)
NET WEIGHT
PESO NETO
9,6 kg | 21,2 lb
PACKAGING
EMBALAJE
64x64x180 cm | 25,2x25,2x71”
19,2 kg | 42,3 lb
A
G
D
A
G
D
CORE04XL
Ø 53,5 cm · 21,1”
Ø 95 cm · 37,4”
160 cm · 63”
68 cm · 27”
MATERIALS
MATERIALES
Painted Stainless steel
Acero inoxidable pintado
Stainless steel
Acero inoxidable
FINISHES
ACABADOS
White · Blanco
BL
Beige · Beige
BE
Grey · Gris
G
Taupe · Topo
T
Black · Negro
N
Custom · Personalizado
CC
CABLE
Transparent or black
Transparente o negro
Standard: 150 cm | 59,1”
120 V: 200 cm | 78,7”
Lenght/Largo customizable
CANOPY
FLORÓN
Steel gloss nickel-plated
Acero niquel-satinado
230V: Ø8cm | 3,1”
120V: Ø12cm | 4,7”
CANOPY
FLORÓN
Steel gloss nickel-plated
Acero niquel-satinado
230V: Ø12cm | 4,7”
120V: Ø12cm | 4,7”
DIFFUSER
DIFUSOR
Bottom diffuser
Difusor inferior
